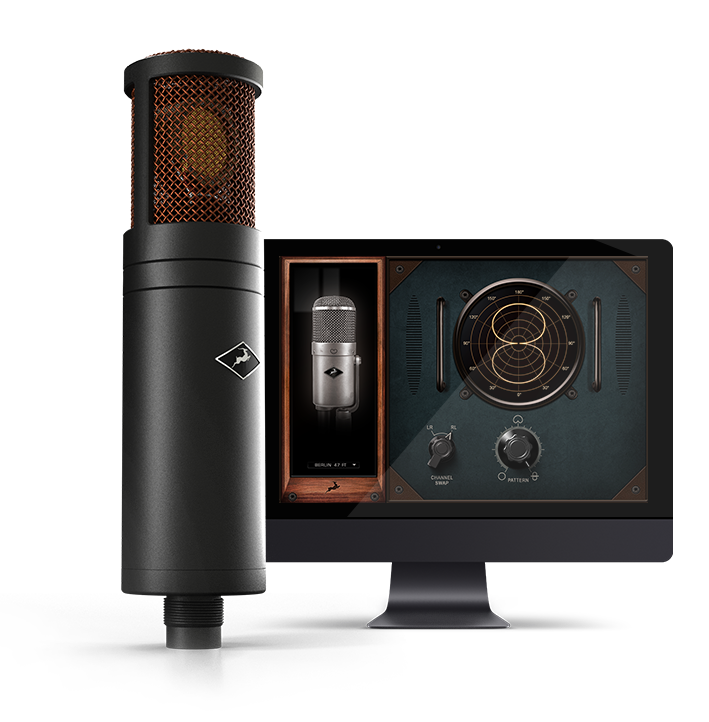

Edge Duo small 1

• Powerful mic modeling engine
• Duosonic / Stereosonic microphone
• Output split in 2 independent audio channels for maximum control and re-micing
• Large double-membrane condenser capsule
• Switchable polar patterns and anything in between
• Ultra-low resonance headbasket and body construction
• Shock mount with pop filter and special oxygen-free copper Y-cable
• Extensive library of vintage mic emulations

Emulations Included

img 1 1

- Berlin 47 FT
- Berlin 47 TU
- Berlin 49T
- Berlin 57
- Berlin 67
- Berlin 87
- Berlin K86
- Berlin M103
- Berlin M251

- Berlin V563
- Berlin/Halske M25
- Illinois 7B
- Minnesota 20
- Oxford 4038
- Sacramento 121R
- Tokyo 800T
- Vienna 12
- Vienna 414

Technical specs

Microphone type: Large Diaphragm Condenser Mic
Diaphragm: Large – double-sided 6u gold-sputtered membranes
Diaphragm diameter: 34mm
Polar pattern: Multi-pattern (cardioid, figure-8, omnidirectional)
Frequency response: 20HZ ~ 20kHZ
Sensitivity: -35dB | 18mV/Pa (-1 to +3dB)
THD+N: -116dB

Self-noise: 19dB(A)
SNR: 75dB(A)
Output impedance: 50 Ohms @ 1kHz
Power requirements: 48V DC phantom power
Output connector: 5-pin male XLR
Color: Black matte
Weight (mic body): 1.23 lbs (560 grams)
Dimensions (mic body): 8.6″ x 2.1″ (219mm x 53mm)

In the box
Breakout cable: 16.4′ (5 meters) 5-pin female XLR to dual 3-pin male XLR (high grade oxygen-free copper Y-cable)
Mount: Shock absorber mount with pop filter
Case: Standard mid-size road case with handle and custom-fit foam inserts

System requirements

Additional Info: Internet connection required for product activation.

All plug-ins are iLok protected. An iLok is required in order to use them. iLok is not provided by Antelope Audio and must be purchased separately

VST PlugIn Technology by Steinberg Media Technologies GmbH.


The microphone emulations are also available as Native effects but iLok will be required.
All emulations are available for the following audio interfaces:

Current Devices:
Discrete 4 Synergy Core
Discrete 8 Synergy Core
Zen Tour Synergy Core
Orion Studio Synergy Core
Goliath HD | Gen 3

Legacy Devices:
Discrete 4
Discrete 8
Zen Tour
Orion Studio (only Berlin 47FT, Berlin 67, Berlin 87, Tokyo 800T emulations are available)
Orion Studio Rev. 2017
Goliath HD (Berlin Halske M25 emulations is incompatible with this device)
