Edge

Large diaphragm condenser modeling microphone

Antelope’s unique mic modeling process starts with the Edge microphone. An outstanding performer in its own right, this large-diaphragm condenser captures vocals and instruments with pristine clarity, providing the ideal platform for Edge mic emulation plug-ins.
Boasting a specially designed low-resonance body, the Edge features a pair of capsules with 6-micron gold-sputtered membranes. These edge-terminated capsules provide an incredibly smooth and natural response that can then be shaped to recreate the character of some of the costliest microphones in existence.
Crucially, the Edge’s two capsules feed two separate outputs, meaning that the signal from each capsule can be individual processed and recombined. While some mic modeling systems can only apply crude EQ adjustments on top of a static mic response, this dual capsule, dual output approach allows us to precisely model every polar pattern on every mic, with accurate on- and off-axis responses, for true multi-dimensional mic modeling.
Edge is designed for all pre amp-equipped Antelope Audio interfaces and outstanding sound can only be guaranteed when used with them. If a user is interested in the Edge emulations but uses an interface from another brand, they should go for the Edge Strip bundle, which includes a perfectly matched two channel Discrete Preamp and several powerful native plugins.

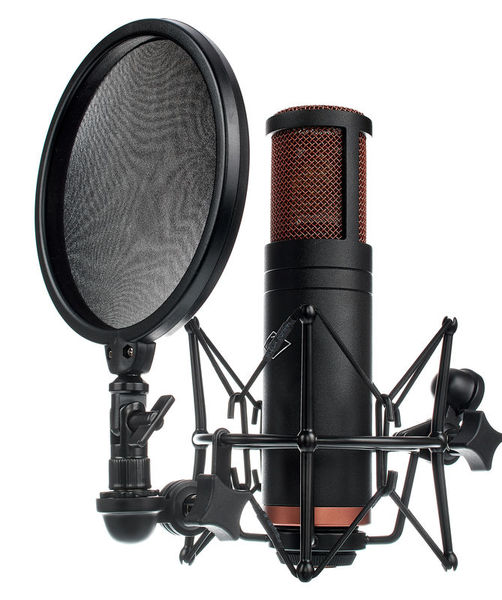

The Edge comes with a high-quality hard case, shockmount and pop filter, plus an XLR-Y cable.

Hear the emulations

Antelope plug-ins serve up a treasure trove of vintage analogue mics with uncanny accuracy, delivering all the character and expressiveness heard on countless hit records.
Available in VST, AU and AAX formats for both macOS and Windows, our native AFX plug-ins provide everything you’ve come to expect from our industry-leading FPGA FX, with minimal latency, a high degree of oversampling and precise floating-point calculations.

Ilok 2 or 3 required. Not included in the pack.

Edge

Berlin 47FT

Berlin 87

Berlin 67

Tokyo 800T

Berlin M103

Oxford 4038

Vienna 12

Berlin 57

Sacramento 121R

Vienna 414

Berlin 49T

Success stories

The latest Shaping Sounds episode will take you to the Mental Architects studio. Sofia's noise rock duo decided to track their new EP with Discrete 4 & 8, Zen Studio+ and Edge Strip. See how Antelope Audio deals with their loud yet intelligent take on rock'n'roll.

Technical Specifications

Edge (large diaphragm condenser modeling microphone)

Microphone type: Condenser
Diaphragm: 34mm Large Condenser – Double sided with 6μm gold sputtered membranes
Polar Pattern: Multi-pattern
Freq. response: 20HZ – 20KHZ
Sensitivity: -35dB | 18mV/Pa (-1 to +3dB)
THD+N: -116dB
Self-noise: 19dB(A)
SNR: 75dB(A)
Output impedance: 50 Ohms

Power Requirements: 48V DC Phantom Power
Output Connector: 5-pin male XLR
Color: Black matte
Weight (mic body): 1.23 lbs. (560 grams)
Dimensions (mic body): 8.6″ x 2.1″ (219mm x 53mm)
Breakout Cable: 16.4′ (5meters) 5-pin female XLR to dual 3-pin male XLR (High grade OFC Y cable)
Mount: Shock absorber type with detachable pop-filter

System requirements

Computer
USB 2.0 equipped Mac or PC
Core 2 Duo minimum, Core i3/i5/i7/Xeon recommended
4 GB RAM minimum, 8 GB RAM recommended

Operating system
OS X 10.11 (El Capitan) or greater
Windows 10

Additional Info: Internet connection required for product activation.

All plug-ins are iLok protected. An iLok is required in order to use them. iLok is not provided by Antelope Audio and must be purchased separately

VST PlugIn Technology by Steinberg Media Technologies GmbH.

In The Box

Edge microphone
Microphone cable /5pin -> 2 x 3pin/
Shock mount
Pop filter
Quick Start Guide and Upgrade Guide
Serial numbers
Activation codes for the Edge Mic Emulations

Ilok 2or 3 required. Not included in the box
