Overview

If what you want is pure analog monitor control with impeccable sound quality…
the Satori is hard to beat…”

ANALOG MONITORING IN 1U

Mastering-grade transparency and analog detail in Antelope’s TEC Award winning Satori

Satori provides a monitoring solution that maintains sonic accuracy while routing and switching between source material, especially when the D/A is handled by the clear and natural-sounding Antelope family of converters. Antelope Audio’s extensive background in designing pristine analog circuitry, highly optimized PCB layout and power supply technology result in mastering-grade transparency at a project studio price.

satori features

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_mixer.svg

ANALOG SUMMING

8-channel analog mixer reaching the sound of legendary mixing consoles

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_expand_diagonal1.svg

INDEPENDENT MONITORING

Multiple personalized mixes for musicians and engineers

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_repeat_button.svg

INNOVATIVE ATTENUATOR DESIGN

An innovative technology retaining the excellent sonic performance of relay attenuators

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_share.svg

ANALOG CIRCUITRY

Mastering-grade quality via optimized PCB layout & power supply technology

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_shuffle_button.svg

EXTENDED CONNECTIVITY

8 stereo ins, 4 stereo outs, XLR, 1/4” TRS, D-Sub and subwoofer output in 1U

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_joypad.svg

EXTENDED REMOTE CONTROL

User-friendly desktop software plus iOS and Android mobile apps

Satori highlights

DESCRIPTION

THE SOUND OF STUDIO LEGENDS

Analog summing functionality in-the-box

In addition to providing outstanding monitoring capabilities, Satori includes a fully analog 8-channel summing mixer. Analog summing allows engineers who work completely “in-the-box” to mix signals in the analog domain for a more natural blending of instruments. The summing mixer inside Satori maintains punch, headroom and excellent dynamics, while offering the analog sound usually found only from legendary analog consoles.

…tons and tons of features in this box and it sounds absolutely wonderful!”

Mitch Gallagher is one of the leading music/pro audio/audio recording authorities in the world. He teaches audio recording and music business at Purdue University/Indiana University, and has appeared at festivals, conventions and conferences around the world.

Watch the full review

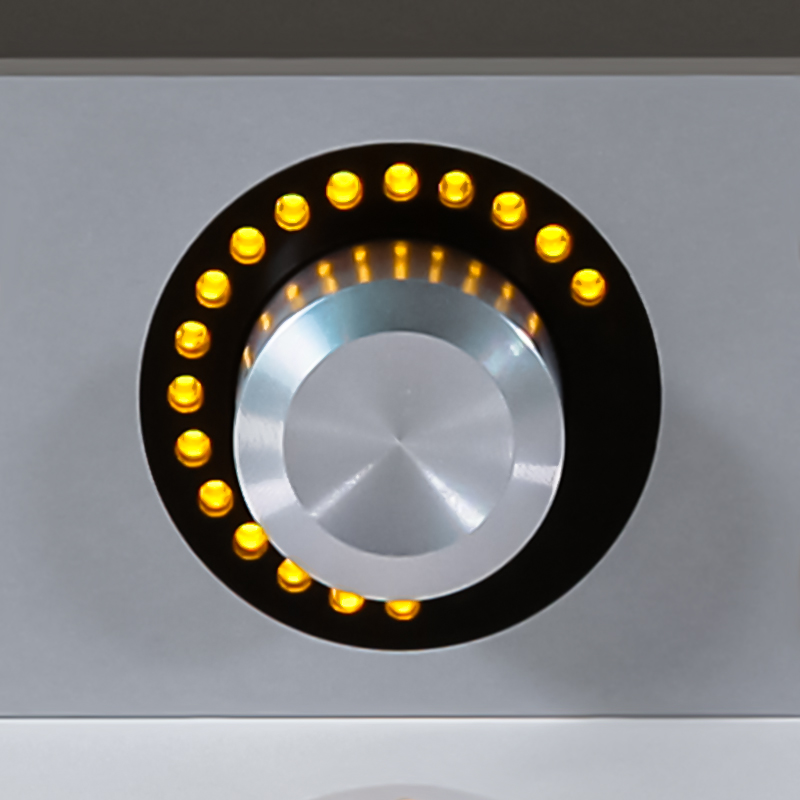

ANALOG ACCURACY

Innovative attenuator architecture with utmost precision

Whereas relay attenuators, being mechanical switches, provide the best sound quality, they suffer from popping or zippering artifacts when the volume is adjusted. Satori employs an innovative, patent-pending technology that dramatically reduces these artifacts while retaining all the advantages and excellent sonic performance.

The greatest advantage of using relays is that they achieve 0.05 dB stereo accuracy and stable L/R balance even at lower listening levels. Satori also boast .5db increments of source and output trim offset control. This pristine, passive attenuator signal path fully preserves audio signal integrity while revealing even the most subtle nuances.

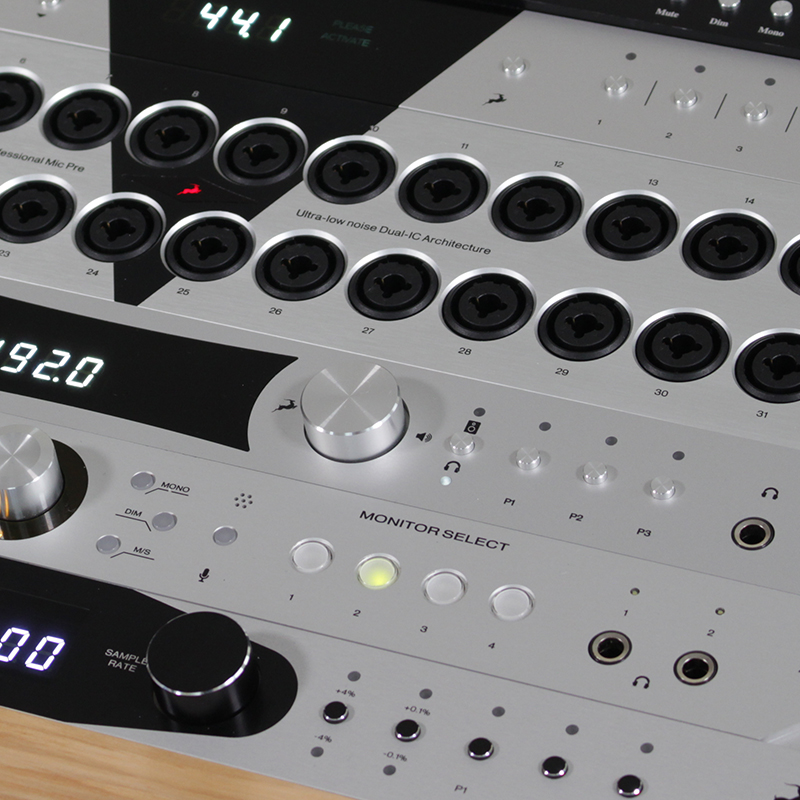

HEADPHONE AMPS & TALKBACK

Satori comes with not one or two, but four independent headphone amps.

Surpassing most monitoring controllers, which offer one or two headphone outs, Satori features four independent headphone amps ready to provide several band members their own, unique input feed with independent volume control. Satori’s headphone drivers are audiophile-grade and are the same as those used in Antelope’s premium line of high-end home audio converters, able to drive both low and high impedance headphones.

A unique software talkback solution allows for instant communication with performers. Satori provides great flexibility by offering several kinds of talkback mic sources – via the built-in mic on the front panel or R4S; the 1/4” TRS connector on the rear panel or the built-in mic in the engineer’s laptop, and the mic on your phone when using the Satori App.

EVEN MORE FREEDOM

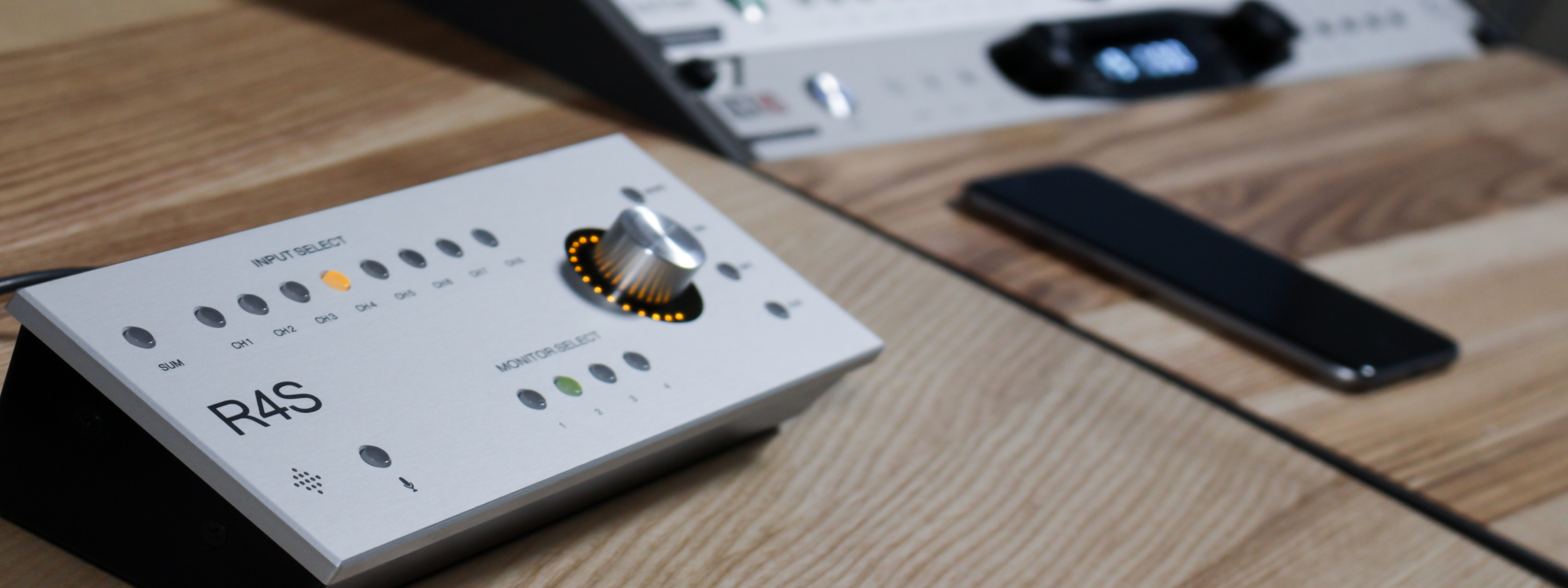

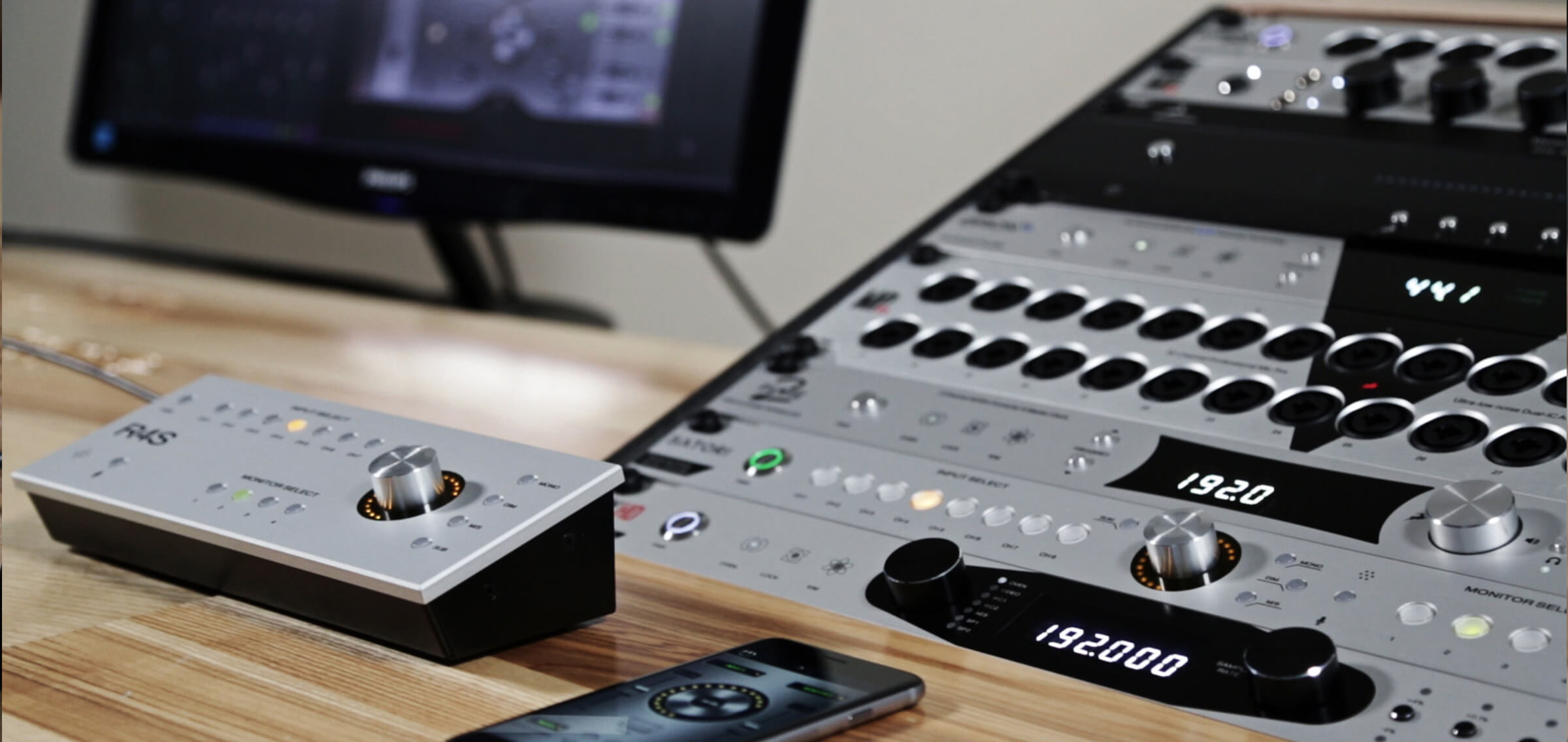

Control Satori via its own dedicated R4S remote control

Satori is bundled with a bus-powered remote control – R4S. The remote is specially designed for Satori, completely replicating the front panel functionality. It provides engineers with ease and ergonomics, controlling Satori directly from the mix position. R4S allows for lightning fast control of all sources and monitors, as well as talkback.

Turn your smartphone/tablet into a pro remote control for your monitoring system

Satori also comes with a free mobile application available for iOS and Android mobile devices. The intuitive app turns your smartphone or tablet into a professional remote control for your monitoring system. It completely manages Satori’s entire functionality, giving the producer the comfort of having fast and easy monitoring control at their fingertips.

google-play

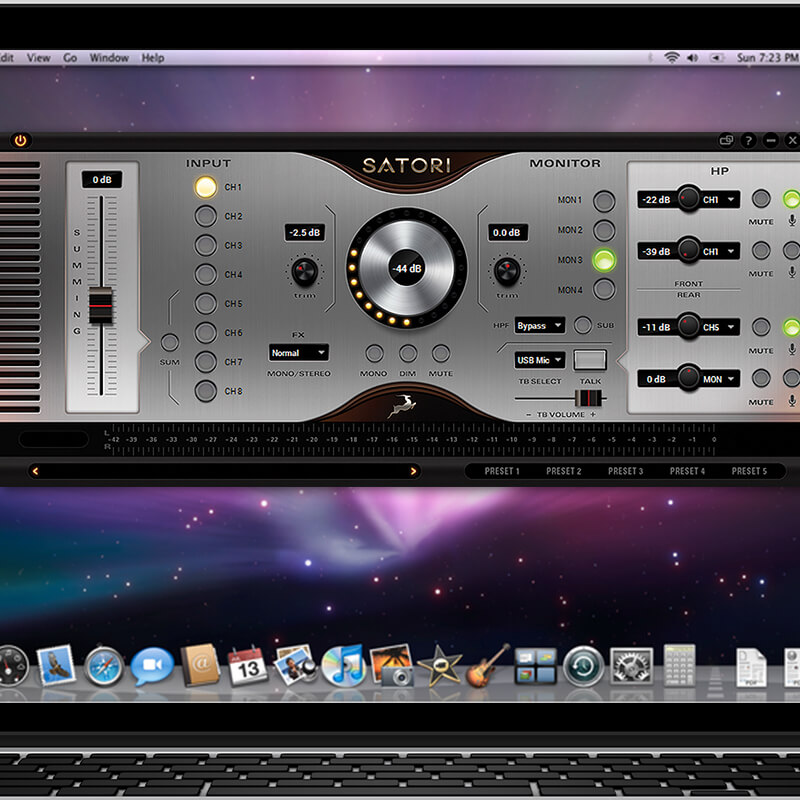

ADVANCED SOFTWARE CONTROL

Satori offers flexible software control from any corner of your studio

Flexible and accurate control capabilities are made possible by Antelope’s next generation of software control panel technology, which has opened the door to a whole new generation of analog devices, such as the Satori Monitoring System and MP32 32-channel mic preamp. For Satori this means fast and responsive source and speaker output switching, accurate remote volume control and also Mute, Mono, Dim, Mid/Side monitoring.

Switching and adjusting inputs and outputs, assigning headphone monitoring for the artists and even talkback, is now possible from anywhere in the studio. This is all achieved due to the Satori’s elegant front panel, software control panel, ergonomic remote control and mobile application.

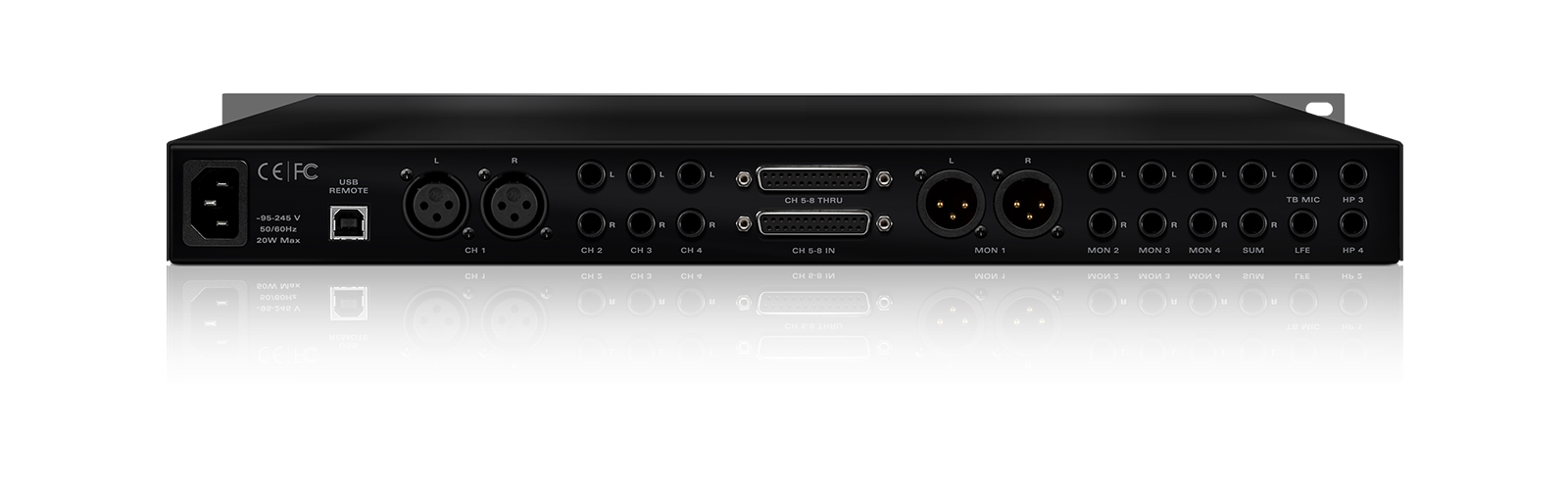

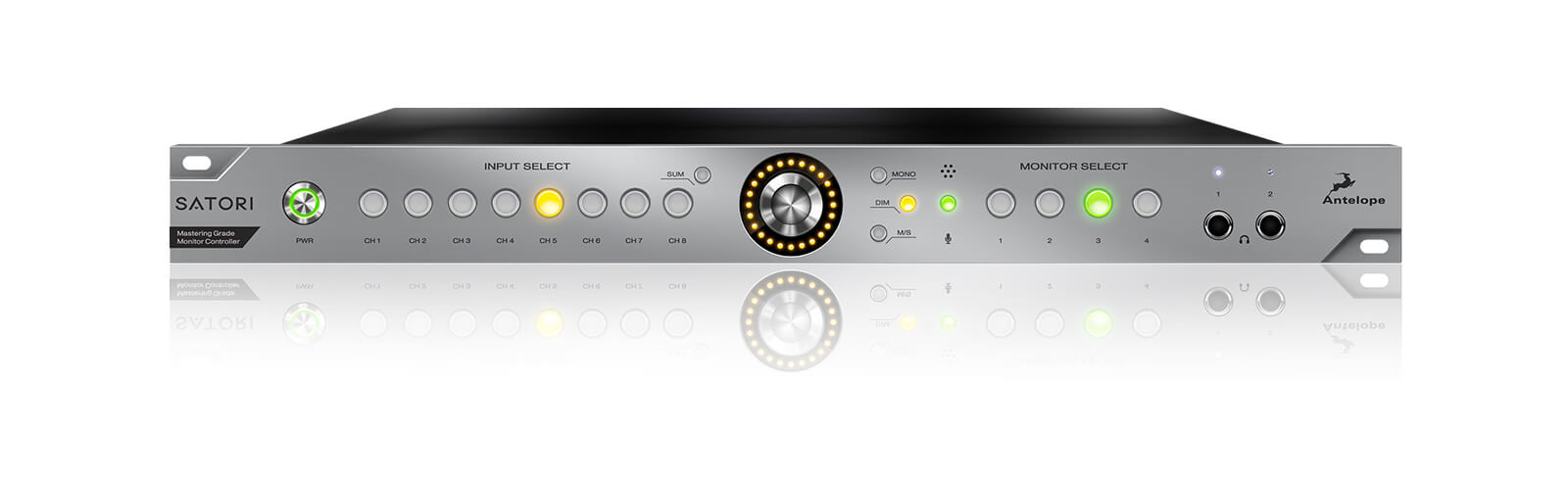

EXTENDED CONNECTIVITY

All I/O you might need in a device taking up just 1U space

An abundant number of I/Os Satori provides a generous amount of connectivity options. No other 1U monitoring system has eight stereo inputs and four stereo outputs and features such a comprehensive choice of connections: XLR, 1/4” TRS and D-Sub 25. Satori also boasts a subwoofer output and four 1/4” independent headphone outs.

VIDEO TUTORIALS

Connectivity

Specifications

    • Analog Inputs

4 x Stereo Pair Line Level Inputs. Ch1 on XLR & Ch2-4 on TRS
4 x Stereo Line Level Inputs on D-Sub 25
1 x Talkback Mic Preamp on TRS

    • Analog Outputs

4 x Stereo Line Level Outputs on D-Sub 25
4 x Stereo Pair Monitor Outputs, Mon1 on XLR and Mon2-4 on TRS
1 x Line Level Stereo Sum Output on TRS
1 x LFE Output on TRS
4 x Headphone Outputs (two on the rear and two on the front) on TRS

    • USB I/O

USB 2.0 Hi-Speed, Type B
For use with the software control panel

    • Dynamic Range

132dB

    • THD + N

127dB

    • Operating temperature

0-50° C / 32-122° F

    • Weight

~2kg / 4,4lb approx.

    • Dimensions

Width: 483 mm / 19” /Rack/
Height: 44 mm(1U) / 1,75”
Depth: 220 mm / 8,66”

    • Power Supply

AC Universal input ~95-245 V

    • Power Consumption

25 Watts Max.

System requirements

Windows

OS: Windows 7/8/8.1/10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth (for firmware update): 80%-90%
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)

MAC

OS X: 10.9/10.10/10.11/10.12 (El Capitan 10.11.6 Recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.
