18 x 26 DESKTOP THUNDERBOLT™ 3 & USB 2.0
AUDIO INTERFACE WITH ONBOARD DSP

Zen Tour

SYNERGY CORE

18 x 26 DESKTOP THUNDERBOLT™ 3 & USB 2.0 AUDIO INTERFACE WITH ONBOARD DSP

Zen Tour Synergy Core

Craft Album-Ready Recordings on
Your Desktop

The Zen Tour Synergy Core desktop interface is all about making it easier for you to effortlessly enter the creative flow and make album-ready recordings. The high-fidelity conversion and sharp transient response of the interface is typically reserved for professional studios and the workflow possibilities are usually only achievable with complex setups.

Record. Produce. Anywhere.

With connectivity options rarely accessible in a unit of this size, you can cover the needs of your small band and connect all your external gear simultaneously. Set up your hybrid workflow by recording with signature Antelope AD/DA while processing the signal at near zero latency with analog-modeled effects emulating legendary studio gear down to the component level.

Use the effects during post-production by loading up to 112 instances simultaneously with all processing done entirely inside the interface. Increase your productivity by modifying your workflow and focus on one thing – making music!

Deliver High-Resolution Sound

The professional recording path is provided by 4 low-noise high-gain discrete ultra-linear preamps, high-spec AD/DA converters for artefact-free recording and signature clocking technology for increased width, separation and detail in your performances. Studio quality audio reproduction is guaranteed by a dedicated monitoring converter for critical listening with wider soundstage. The combination of Antelope clocking and DA monitoring converters with 130dB headroom, makes mixing and even mastering in your home studio possible.

Flexible Connectivity - 18 × 26 Total I/O

Zen Tour Synergy Core offers a choice of 4 instrument/line ins, 4 combo mic/line ins with 65dB of gain, 8 line outs, 1 stereo monitor out, 2 stereo headphone outs and 2 reamp outs. The unit is digitally expandable over ADAT & S/PDIF for additional 10 digital ins and 10 outs when used at up to 48kHz. All line outs are DC-coupled and ready for control voltage (CV) applications such as control of modular synthesizers. As a final touch, an integrated talkback microphone lets you easily communicate with your artists.

1
Headphone outputs 1 and 2
2
Reamp outputs 1 and 2
3
Hi-Z/Line inputs G1 – G4
1
Mic/Line inputs A4 – A1
2
USB 2.0 Type-B port
3
Thunderbolt™ 3 Type-C port
4
ADAT I/O
5
DC-coupled line outputs
6
S/PDIF I/O
7
Monitor outputs
8
DC-IN

Up the Ante with 36 Real-Time Effects Included

The moment you unbox the audio interface, you already have access to an effects library with emulations of most coveted and hard-to-find studio analog gear from around the world. The library does not lack in variety – the collection spans from a rare Austrian-born EQ to legendary British solid state processing. A growing library of expansions starting from $55 is available to you in the Antelope software store. Use the effects during live tracking or during post-production to add distinct analog flavor to your mix.

• 2 Preamps • 4 Equalizers • 5 Compressors • 22 Guitar Amps & Cabs • 1 Expander • 1 Noise Gate • 1 Reverb
SEE ALL EFFECTS

Synergy Core is a proprietary onboard real-time effects processing platform uniting the power of DSP and FPGA processors. How does the technology work in your favor?

• Offloads all processing to the interface so next time you are faced with a heavy project you will not need to rely entirely on your host computer CPU & memory or any external DSP accelerators.

• Guarantees imperceptible latency while allowing direct monitoring of processed signal in real-time for the most enjoyable recording experience. Accomplished while reducing buffer size and improving your recording system’s stability.

Compatible with Anything You Put in Front

The Zen Tour Synergy Core can fit into any set-up. Connect it via Thunderbolt™ 3 or high-speed USB 2.0, install the custom-built drivers for Mac or Windows and enjoy low-latency performance. The Zen Tour Synergy Core is a flexible interface, you can safely connect to any recording system while on tour or a studio session.

Enhance your Music Production with These Included Features

Direct Monitoring

Record and monitor clean signal or apply analog-modeled effects processed with imperceptible latency in real-time. This feature will help you find creative solutions faster and commit to your sound early in the process, thus speeding up your workflow and avoiding the need to ‘fix it in the mix’.

Routing Matrix

Route inputs to outputs easily with the comprehensive Routing Matrix! Eliminate the need for moving cables by re-routing all your audio through the software matrix and process your effects & DAW tracks via the on-board Synergy Core processing.

Internal Mixers

The 4 mixers are with 32 channels each for creating individual cue mixes and sub-mixes, allowing you to distribute headphone mixes for your musicians while applying pan, reverb, other effects and stereo link.

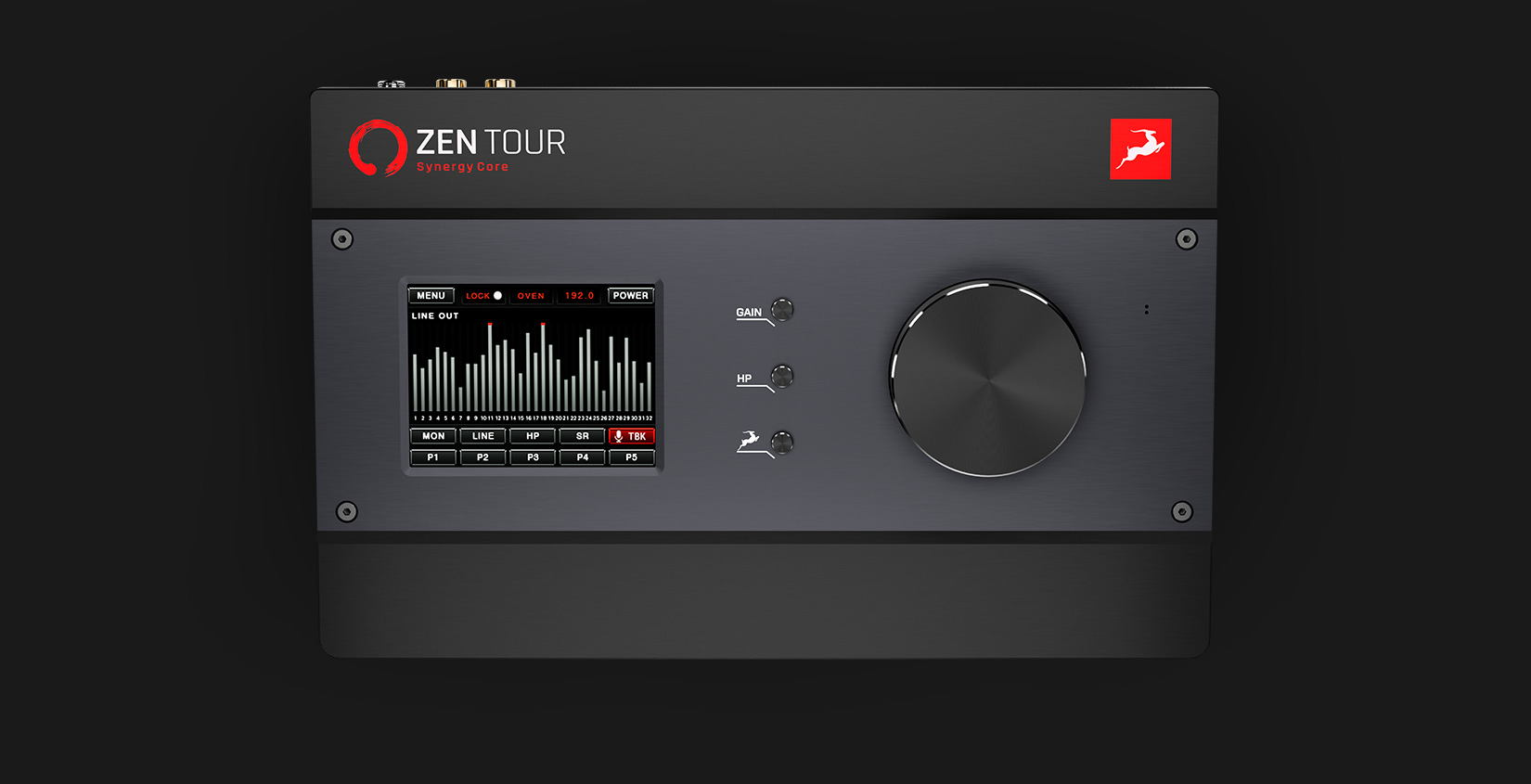

Touchscreen Controls

Combined with fast-access buttons to help you for a range of different metering across your ins, outs, mix and sub mixes along with monitoring, operation and headphone controls. Manage input and output gain via the rotary knob, without using the software panel.

ADAT and S/PDIF

The Zen Tour Synergy Core is an expandable interface that allows you to grow with your studio. Strech your channel count and eliminate the need to buy additional converters as you add more gear to your set-up.

Reamp Outputs

Have the flexibility to reamp your guitar recordings via your favorite guitar amps, without the need for re-recording. Providing the correct impedance level, they also turn the signal from balanced to unbalanced as if it’s a real guitar output.

Built to Last

Hand-assembled in Europe, using high-quality components, Zen Tour Synergy Core withstands the demands of your studio desktop, road rig and practice space. Furthermore, the rock-solid drivers and 20-hour per weekday customer support will ensure you get consistent, smooth performance in all conditions.

Expand with

Over 40 Expandable Effects

Upgrade your collection with effects modeled after legendary Danish mastering-grade compressors, American console equalizers, British solid state channel strips, and many more. Expand your arsenal of creative tools with our expandable effects library.

GET IT HERE
Auto-Tune Synergy

Built from the ground-up in cooperation with Antares, Auto -Tune Synergy adds live pitch correction to the Antelope Audio experience. Use the most iconic vocal effect in popular music during real-time recording, live performance or in your mix.

GET IT HERE
afx2daw

Start mixing without interrupting your flow by bringing the real-time effects  in your DAW without having to do any routing. The software bridge allows you to automate the effects in your DAW and recall your settings in your project.

Available for MacOS over Thunderbolt™

GET IT HERE
mic modeling

Pair the interface with a modeling mic to unlock the full potential of real-time vintage emulations. Processed by the on-board DSP acceleration, meaning you will be able to use them without latency during tracking and without any CPU load during mixing. Use while away from the interface to switch between mic models and adjust polar patterns on the go.

GET IT HERE

Key Features

Analog & Digital Connectivity

8 x 14 Desktop audio interface with Thunderbolt & USB connection for Mac/Windows;

Four Discrete ultra-linear preamps with 65dB of gain for studio-quality recordings. All work as microphone/line inputs, on combo XLR jacks;

Four Hi-Z/line instrument inputs on TRS ¼ jacks

Eight DC-coupled analog output channels over a D-Sub 25 connector allowing control of modular synthesizers;

Two reamp outputs on TRS ¼ jacks for further amp processing of guitar signal;

Thunderbolt 3 (up to 32 channels) and USB 2.0 (up to 24 channels) ports for native DAW application with custom macOS & Windows drivers;

Digitally expandable over ADAT (up to 8 channels) and SPDIF (up to 2 channels);

Two stereo headphone outputs;

A pair of monitor outputs;

Clocking & Conversion

Proprietary 64-bit Acoustically Focused Clocking technology for increased width, separation, and detail in musical performances;

Proprietary Jitter Management algorithm delivering truthful and expanded soundstage;

High-resolution A/D and D/A conversion ensuring artefact-free recordings and mastering-grade converter with 130dB headroom for critical listening without coloration or signal degradation;

Onboard Real-Time Effects

Collection of 36 analog-modeled effects featuring classic as well as rarely emulated compressors, EQs, mic preamps, and guitar amps and cabs;

4×DSP, 2×FPGA Synergy Core proprietary onboard real-time platform for effects processing with imperceptible latency;

Up to 112 effects instances per session loaded simultaneously.

Workflow-Enhancing Features

Advanced digital Routing Matrix that allows execution of complicated input/output routing with a simple drag and drop functionality;

4 mixers with 32 channels each for creating individual cue mixes and sub-mixes, allowing you to distribute headphone mixes for your musicians while applying pan, reverb, other effects and stereo link;

Customizable presets complete with signal routing, level adjustments, mixer settings and sub-mixes;

Direct hardware monitoring with effects, processed in real-time with imperceptible latency;

Multifunctional touchscreen display for monitoring, operation and recall of hardware-based presets;

Front panel with volume knobs with selectable sources and functional buttons Easily accessible talkback with built-in microphone via multi-purpose Antelope button;

Option to work without being connected to a computer (standalone operation);

Wireless control of software features from a separate computer connected to the same network.

IN THE BOX

Zen Tour Synergy Core Interface

Quick Start Guide

Inline External Power Supply Unit

USB Cable

Warranty Card
