EDGE DUO

Transform your studio recordings
with a single microphone

Duo Header 01

Capture multi-dimensional sound

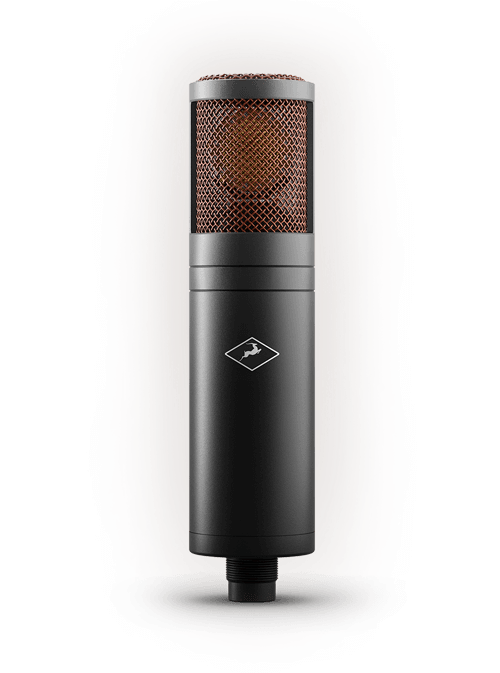

The Edge Duo is a multi-pattern large dual-diaphragm condenser microphone, capable of 3-dimensional high-resolution sound recordings. This innovative device can transform its behavior, color, frequency and transient response into 18 different iconic microphones that are still used in some of the most sophisticated recording studios. Thanks to its dual-diaphragm design and unique Modeling Engine, the Edge Duo allows for real-time polar pattern alterations during recording and mixing.

Features


High-Resolution
Sound


Switchable
Polar Patterns


18 Different
Sounds


perfect for
any source


Compatible
with Any Preamp


Control in
the Mixing Stage

Sound Quality

Redefine your tone
with professional studio quality

The years of experience as a leader in pro audio allowed us to create one of the most capable and transparent microphones on the market today. Even before loading any emulations, the Edge Duo effortlessly delivers an intimately detailed presence that will push any track to the front of your mix.

The capsule is fitted with two of our signature 6-micron gold-sputtered membranes and the body is equipped with custom electronics for truly unparalleled sound performance and flexibility.

edge duo singer

THD+N:

-116dB

FREQ. RESPONSE:

20HZ ~ 20KHZ

Duo Emulations v

Microphone Emulations

18 iconic studio microphones
in one body

The Edge Duo comes with an extensive collection of 18 legendary microphones – a diverse collection assembled according to the top picks of many award-winning engineers and producers. The mic locker contains emulations of some of the most coveted and rarest microphones. Included are true classics of German and Austrian engineering as well as one of Britain’s most revered ribbon microphones.

Emulations

Berlin 47 FT
Berlin 47 TU
Berlin 49T
Berlin 57
Berlin 67
Berlin 87
Berlin K86
BerlinHalske M25
Berlin M251
Berlin V563
Berlin M103
Illinois 7B
Minnesota 20
Oxford 4038
Tokyo 800T
Vienna 12
Vienna 414
Sacramento 121R
edge duo with mac01

Modeling Engine

Embrace the future
of recording

What makes the Edge Duo such a unique recording tool is the Modeling Engine – а futuristic technology that brings a selection of timeless classics to your studio.

To develop it, we worked with several revered European facilities, making rigorous measurements and testing multiple exquisitely preserved vintage microphones, as well as modern high-end classics. The accuracy of our mic emulations keeps the frequency response and color of the originals in a complete 360° coverage. The dual-diaphragm design of the Edge Duo is what allows you to adjust the polar patterns of the emulations directly from the software in real-time.

EDSC01 1

Recording & Mixing

Enter a new era
for record-making

Select microphone model, polar pattern, and other settings both before and after tracking. The option to choose between the different microphone models can be a great asset to the performer during tracking while mixing engineers can benefit from trying out different models in post-production.

Although it works with any preamp, the modeling microphone excels when paired with our Synergy Core interfaces’ Discrete preamps. Processing by the onboard DSP acceleration, means you will be able to use the microphone emulations in real-time, with imperceptible latency and zero CPU load.

In use

Benefit from broad
application and compatibility

The Edge Duo is an all-purpose tool for studio professionals looking to record a variety of sources. It works with any preamp with 48V phantom power and its variable polar pickup pattern is ideal for room miking drums, recording backing vocals and any acoustic performance.

The microphone emulations are available in VST, AU and AAX plugin formats for all popular DAWs under both macOS and Windows, regardless of the audio interface being used. An iLok 2 or 3 USB dongle is required.

Perfect for

comparison table

Edge Family

EDGE SOLO EDGE DUO EDGE QUADRO EDGE GO
CAPSULE Single capsule Single capsule Two large condenser capsules Single capsule
DIAPHRAGM Large condenser, single-sided 6u
gold-sputtered membrane
Large, double-sided 6u gold-sputtered membranes Double-sided 6u-gold sputtered membranes Double-sided 6u gold-sputtered membranes
POLAR PATTERN Cardioid Multi-pattern (cardioid, figure-8, omnidirectional) Multi-pattern (cardioid, figure-8, omnidirectional,
Blumlein, M/S, X/Y)
XY-stereo – set both capsules to Cardioid, offset 90°
Mid-side stereo – set the top capsule to Cardioid, and
the bottom capsule to figure-8
Blumlein – Set both capsules to Figure-8, offset 90°
Multi-pattern (cardioid, figure-8, omnidirectional)
NUMBER OF EMULATIONS 18 18 18 18
REALTIME FX N/A N/A N/A 6 equalizers, 8 dynamic processors, 5 Preamps &
Channel Strips, 3 special processors
FREQ. RESPONSE 20HZ ~ 20kHZ 20HZ ~ 20kHZ 20HZ ~ 20kHZ 20HZ ~ 20kHZ
OUTPUT CONNECTOR 3-pin male XLR 5-pin male XLR 5-pin male XLR USB Type-C (USB 2.0 compatible)
OUTPUT CHANNELS Mono 2 separate XLR output channels 2 physical outputs each carrying 2 channels.
A total of 4.
Mono (Hardware)
HEADPHONE OUTPUT DAC N/A N/A N/A SNR 112 dB
HEADPHONE OUTPUT N/A N/A N/A 1/8” (3.5 mm) stereo jack
CONTOROL PANEL EMULATIONS Tokyo 800T
Berlin 47FT
Berlin 47TU

Berlin 49T

Berlin 57

Berlin 67

Berlin 87

Berlin K86

Berlin M103

Berlin M251

Berlin V563

Vienna 12

Vienna 414

Vienna 112

Illinois 7B

Minesota 20

Illinois 57

Hamburg 441

SEE ALL 18

SEE LESS

Tokyo 800T
Berlin 47FT
Berlin 47TU

Berlin 49T

Berlin 57

Berlin 67

Berlin 87

Berlin K86

Berlin M103

Berlin M251

Berlin V563

Vienna 12

Vienna 414

Berlin / Halske M25

Illinois 7B

Minesota 20

Sacramento 121R

Oxford 4038

SEE ALL 18

SEE LESS

Tokyo 800T
Berlin 47FT
Berlin 47TU

Berlin 49T

Berlin 57

Berlin 67

Berlin 87

Berlin K86

Berlin M103

Berlin M251

Berlin V563

Vienna 12

Vienna 414

Berlin / Halske M25

Illinois 7B

Minesota 20

Sacramento 121R

Oxford 4038

SEE ALL 18

SEE LESS

Tokyo 800T
Berlin 47FT
Berlin 47TU

Berlin 49T

Berlin 57

Berlin 67

Berlin 87

Berlin K86

Berlin M103

Berlin M251

Berlin V563

Vienna 12

Vienna 414

Berlin / Halske M25

Illinois 7B

Minesota 20

Sacramento 121R

Oxford 4038

SEE ALL 18

SEE LESS

EFFECTS N/A N/A N/A Bae-1073MP (Mic / Line Preamp)
STAY-LEVIN (Vari-Mu Tube Compressor)
A-TUNNER (Guitar Tunner)

POWERGATE (Noise Gate)

POWEREX (Expander)

VEQ-HLF (Tube 2-Band HPF / LPF)

VEQ-1A (2-Band Tube EQ)

VEQ-4K BLACK (4-Band EQ / HPF / LPF)

MASTER DE-ESSER (De-Esser)

AURAVERB (Reverb)

REEL-TO-REEL (Tape Saturation)

BA-31 (Germanium Mic Preamp)

RD47 (Tube Mic Preamp)

VPA76 (Tube Mic Preamp)

GYRAF GYRATEC IX (Dual Tube Mic Preamp with HPF)

BA-6A (Tube Compressor / Limiting Amplifier)

LIVERPOOL (Vari-Mu Tube Compressor)

ALT-436C (Vari-Mu Tube Compressor Amplifier)

VCA160 (VCA Compressor / Limiter)

FET-A76 (FET Compressor / Limiting Amplifier)

LANG-PEQ2 (Parametric EQ)

VEQ-55A (3-Band EQ / HPF / LPF)

BAE-1073 (3-Band EQ / HPF)

SEE ALL 24

SEE LESS
