64-CHANNEL DANTE®, HDX & THUNDERBOLT 3™ AUDIO INTERFACE WITH ONBOARD DSP

Galaxy 64 Synergy Core

OVERVIEW

64 Channels of
Analog Audio. Dante
& HDX Connectivity.
One Device.

Galaxy 64 Synergy Core is a high-end recording system that connects your entire studio within a 2U rack space while providing high-fidelity audio and onboard effects processing for your most demanding projects. With Dante, HDX and Thunderbolt connectivity, the world’s first 64-channel AD/DA converter offers unbeatable flexibility when moving sound around your high-profile production facility, live stage, broadcast, or other enterprise applications.

integration

More Streamlined Workflow,
Less Clutter

The interface is designed to be the hub of your entire recording environment that eliminates the need for any expansion modules and cards, thus centralizing your entire setup. Switching from project to project is effortless with the fast recall of presets and adapting to different workflows is made easier by allowing you to address numerous applications using a single hardware frame.

connectivity

World’s First 64-Channel AD/DA Converter
In 2U Rack Space

Galaxy 64 Synergy Core is the only interface to offer two Dante ports for audio networking, four HDX ports for a full array of 128 channels in Pro Tools as well as Thunderbolt connectivity. These features can be used simultaneously with multiple systems for easy adaptation to different workflows with preferred DAW applications. This is all made possible by utilizing our exclusive FPGA configuration and advanced digital routing.

8x DB25 line inputs

(64 channels at 24-bit, 192kHz)

 64 аnalog input channels over 8 DSUB-25 connectors with AC/DC coupling switch (TASCAM standard)

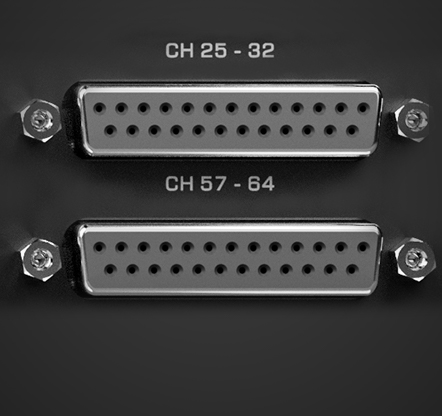

8x DB25 line outputs

(64 channels at 24-bit, 192kHz)

64 analog output channels over 8 DC-coupled D-Sub 25 connectors (TASCAM standard);

1× Stereo headphone output

(24-bit, 192kHz)

Stereo TRS jack for headphone monitoring with a D/A converter providing 122dB of headroom.

1× Stereo monitor output pair

(2 channels at 24-bit, 192kHz)

L/R studio speaker outputs on 1/4-inch TRS connectors with a dedicated converter providing 130dB of headroom

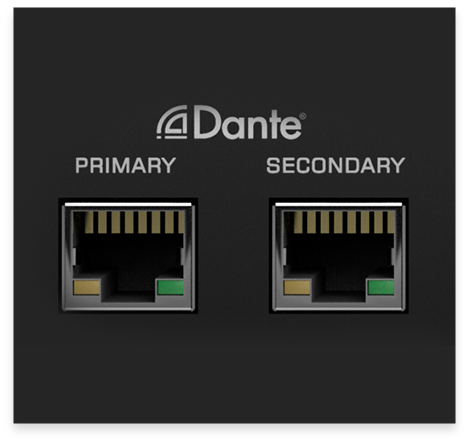

2x DANTE® Ports

(64 channels at 24-bit, 48kHz)

Primary and Secondary Dante® connections on RJ 45 (Ethernet) ports. The number of input and output audio channels is sample rate-dependent.

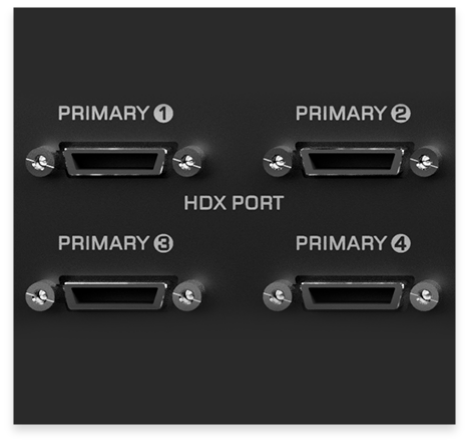

4x HDX Ports

(128 channels at 24-bit, 192kHz)

Four HDX ports enable interfacing to two HDX cards simultaneously for a primary/secondary recording setup or a full array of 128 channels.

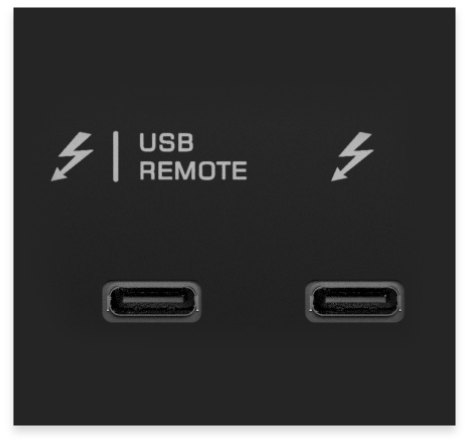

2x Thunderbolt 3™ Ports

(64 channels at 24-bit, 192kHz)

Two Thunderbolt 3 ports for PC/Mac connection. The left port enables USB-C connection to a secondary computer for remote control purposes.

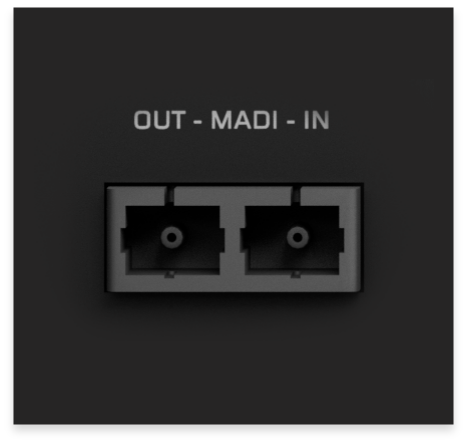

2x Optical MADI Ports

(64 channels at 24-bit, 48kHz)

Should the need for more channels arise, use the MADI ports on optical SC connectors to daisy-chain with another audio interface.

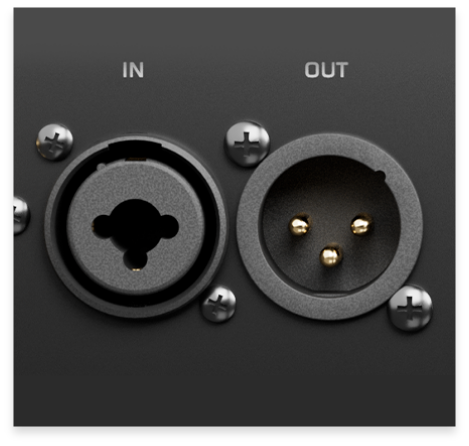

2x AES/EBU Ports

(2 channels at 24-bit, 192kHz)

Two AES/EBU ports on XLR connectors for digital expansion to AD/DA converters or monitoring systems.

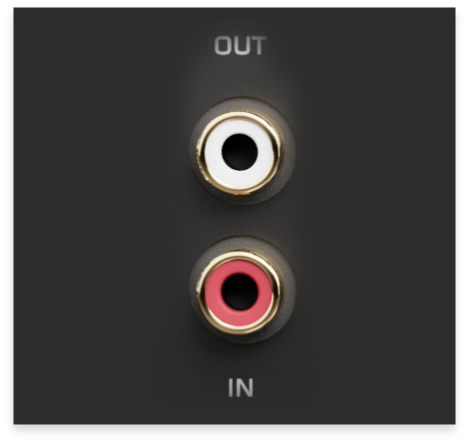

2x S/PDIF (input and output)

(2 channels at 24-bit, 192kHz)

 Two S/PDIF ports RCA connectors for digital expansion to AD/DAconverters or monitoring systems.

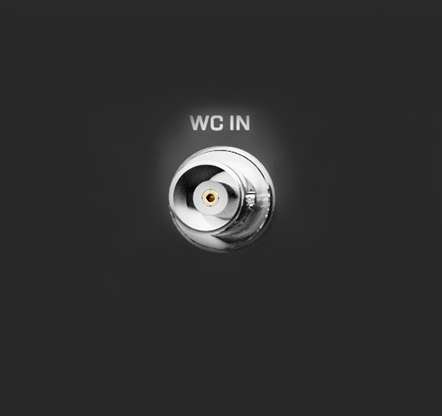

1x Word clock input

The word clock input allows you to sync Galaxy 64 Synergy Core’s internal clock to an external master clock or other converter.

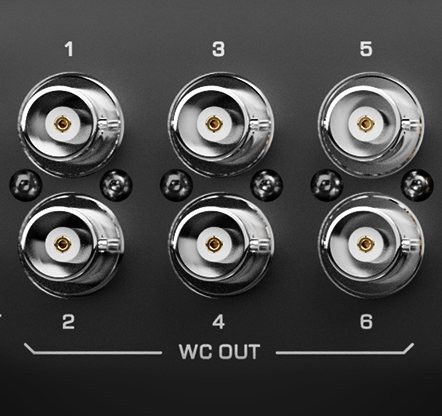

6x Word clock outputs

With the word clock outputs, you can distribute the internal clock signal across the rest of your digital gear.

2x Loop sync (input and output)

Word clock distribution system for HD and HDX set-ups that eliminates sync repatching.

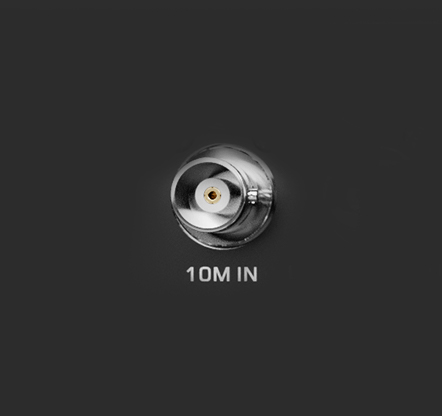

1x 10M atomic reference input

An atomic input allows reference from the 10MX atomic clock or the 10M reference clock.

Dante® Audio Over IP

Build your Network

Dante is the number one audio over IP choice for installations, live events, production facilities, and any situation where large volumes of high-definition digital audio must be reliably transferred over long distances. Achieved using just an Ethernet port, Dante connection is preferred among other digital network standards, due to its easy configuration and variety of product support.

The configuration provides straightforward integration and reliable redundancy, with the secondary RJ-45 port serving as a backup 64-channel Dante route. Galaxy 64 Synergy Core allows extensive real-time backup and multi-level recording options throughout every production stage.

HDX Connection

128 Channels in Pro Tools at 192kHz Sample Rate

The only interface to offer four HDX ports provides primary or secondary recording solution per card or a full array of 128 channels of recording split to two systems. What is especially impressive about our exclusive FPGA configuration is that it allows this channel count to be maintained at high sample rates such as 192kHz.

Unlike modular systems, all I/O is available at any time without the need to exchange boards or change setups. This is the easiest way to interface multiple Pro Tools sessions through several hosts.

sound

High-Fidelity Conversion

High-spec AD/DA converters provide low total harmonic distortion and signal-to-noise ratio for artifact-free recording sessions. The Galaxy 64 Synergy Core does not require external converters for monitoring because of the dedicated mastering-grade monitor converter. It facilitates audio reproduction with a wider soundstage for critical listening without coloration or signal degradation.

Industry-Leading Clocking Technology

Our proprietary 64-bit Acoustically Focused Clocking and Jitter Management algorithm ensure the kind of audio quality that sets apart the legendary Isochrone Trinity master clock. The Galaxy 64 Synergy Core delivers the same increased width, separation, and detail in your musical performances.

D/A STAGE DYNAMIC RANGE
128 dB
A/D STAGE DYNAMIC RANGE
124 dB
MONITOR CONVERTER DYNAMIC RANGE
130 dB

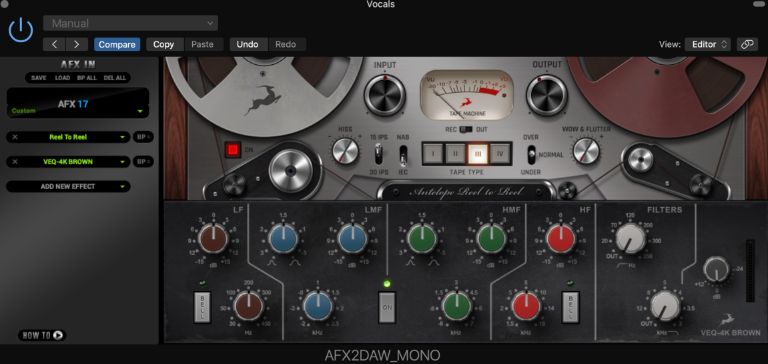

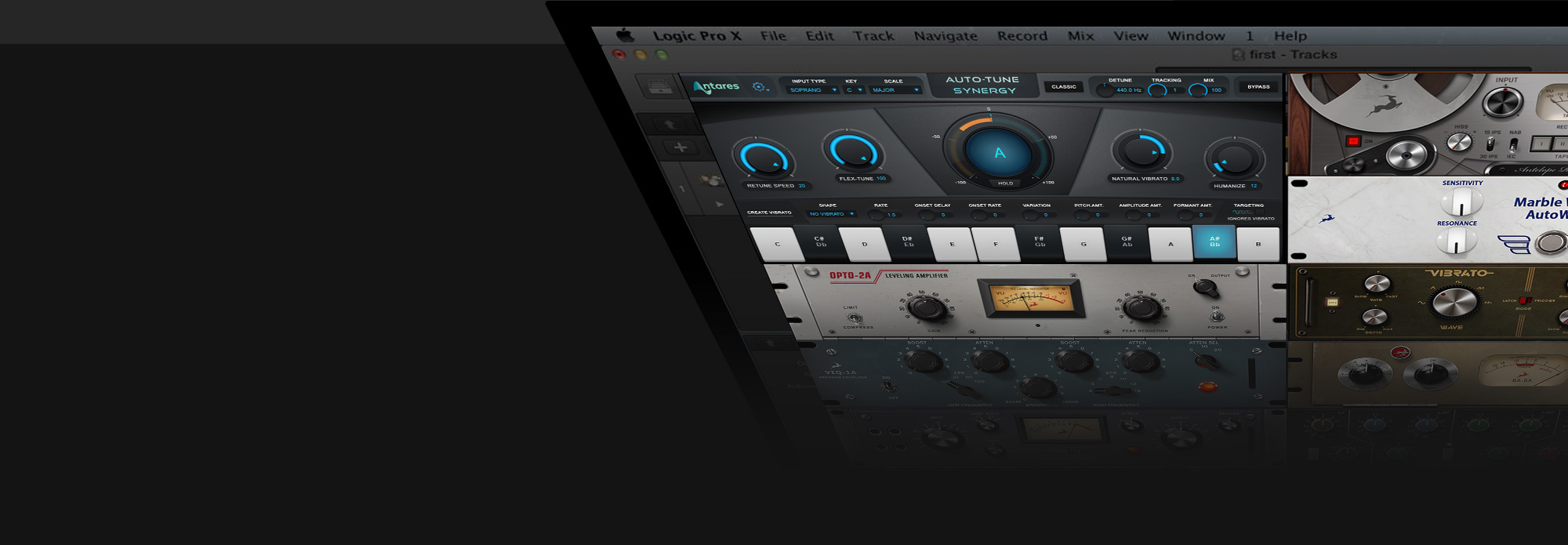

Effects Processing

36 Real-Time Effects Included

Galaxy 64 Synergy Core includes a massive expandable library of 36 real-time effects. It is largely composed of software emulations of vintage analog gear found in world-renowned recording studios. The collection does not lack in variety – you can find rarities like a boutique autowah pedal from Finland, a Danish master-grade compressor or emulation of famous units like American-design EQs.

18 Equalizers, 12 Compressors & Limiters, 2 Preamps & Channel Strips, 1 Reverb, 1 De-Esser, 1 Tremolo, 1 AutoWah Pedal
See All Effects

Synergy Core is currently one of the fastest-growing real-time effects processing platforms in the pro audio industry. In short, the Antelope Audio Synergy Core technology is a combination of the best of FPGA and DSP processing, brought together to give you a powerful, yet simple to use effects platform. It allows you to:

• offload all processing to the interface thus saving your host computer CPU & memory
• load effects while tracking or mixing and process with imperceptible latency
• handle a session with 256 plugin instances loaded simultaneously on 64 individual virtual racks

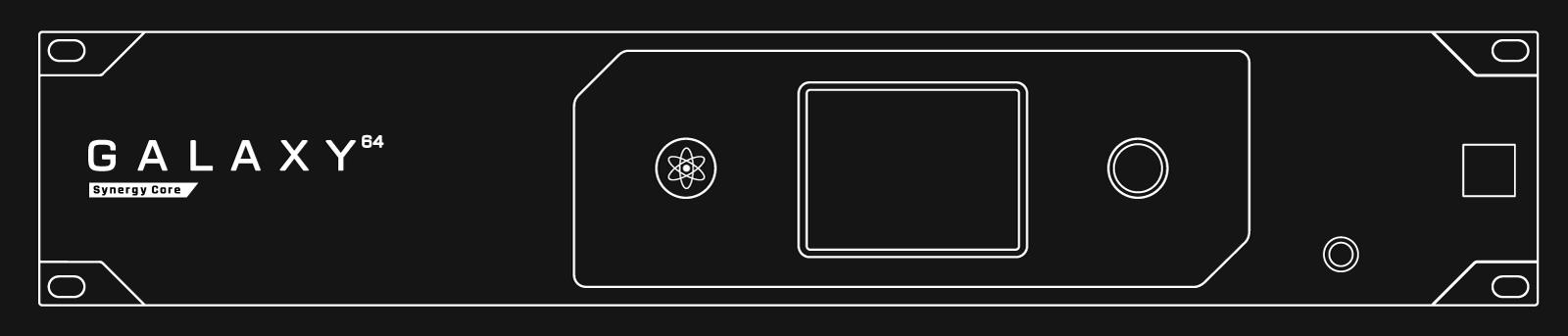

1
Atomic Clock Indicator
2
Touchscreen Display
3
On/Standby Button
4
Headphone Output

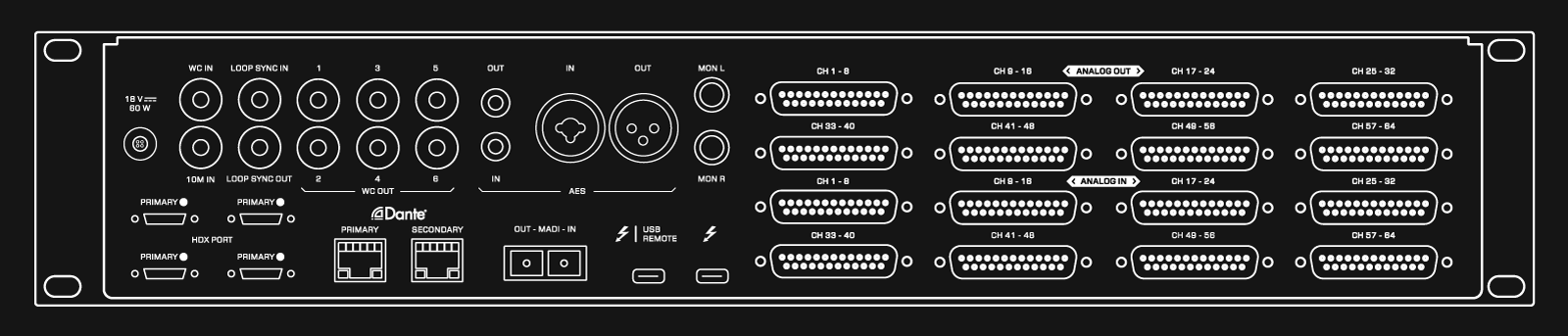

1
Power Connector
2
External Clock Inputs
3
Loop Sync I/O
4
Word Clock Outputs
5
S/PDIF & AES Connections
6
Monitor Speaker Outs
7
Line Outputs
8
Line Inputs
9
Thunderbolt™ 3 Computer Connections
10
MADI Connections
11
Dante® Connections
12
HDX Ports

Workflow-Enhancing Features

Routing Matrix

The comprehensive Routing Matrix houses an advanced digital patch bay to freely route audio between the unit’s analog and digital inputs and outputs. This happens with simple drag and drop functionality, while user labeling, and color-coding facilitate immediate and intuitive operation.

Low Latency Internal Mixers

The Control Panel houses 8 low latency 32-channel mixers that can be split into individual cue mixes and sub-mixes, allowing you to distribute headphone mixes for your musicians while applying pan, reverb, other effects and stereo link. Each mixer has 32 inputs and a stereo output which makes them ideal for real-time multi-channel hardware-based monitoring and signal summing.

Remote Control & Standalone Operation

The interface allows interfacing to a second computer via USB-C for the purposes of remote control. This way, you can run dedicated live/recording and Control Panel setups without being tied to a single computer. Network control is also a possibility through a proprietary client/server system. With the interface, you also have the option to work without being connected to a computer.

Customizable Presets

Create custom presets for any scenario, complete with signal routing, level adjustments, mixer settings and sub-mixes. Everything can be custom configured for individual recording sessions, live events, and pre/post-production sessions. Preset files can be shared across multiple studios and devices to ease workload and optimize the production process.

Low Latency Direct Monitoring

Record and monitor with analog-modeled effects processed with imperceptible latency in real-time. This feature will help you find creative solutions faster and commit to your sound early in the process, thus speeding up your workflow and avoiding the need to ‘fix it in the mix’.

Touchscreen Controls

The touchscreen functionality saves time and offers efficiency when immediate access to the Control Panel application is not there. The precise touch control facilitates fast and immediate access to metering, level controls, presets and settings.

How Does the Interface Fit in Your Setup?

Fill in the form to see how the Galaxy 64 Synergy Core can transform and streamline your complex setup. Find in-depth information about the interface in the specialized digital brochure and connectivity chart. Light speed delivery to your email!

Subscribe

* indicates required

Antelope Audio will use the information you provide on this form to be in touch with you and to provide updates and marketing.

You can unsubscribe at any time by clicking the link in the footer of our emails. For information about our privacy practices, please visit our website.

We use Mailchimp as our marketing platform. By clicking below to subscribe, you acknowledge that your information will be transferred to Mailchimp for processing. Learn more about Mailchimp's privacy practices here.

Technical Specifications

A/D LINE INPUT

Input Connection: 8 × DC-Coupled D-Sub 25-pin
With AC/DC Coupling Switch (TASCAM Standard)
I/O Channel Count: 64 Channels
Input level trim: 14 dBu to 24 dBu in steps of 1 dB
Dynamic Range: 124 dB
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
THD+N (A): -112 dB
Impedance Load: 11.2 kOhms

D/A LINE OUTPUT

Output Connection: 8 × DC-Coupled D-sub 25-pin
(TASCAM Standard)
I/O Channel Count: 64 Channels
Output level: -inf to 24dBu // 1 dB step
Dynamic Range: 128 dB
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
THD+N (A): -115 dB
Impedance Load: 56 Ohms

D/A MONITOR OUTPUT

Output Connection: 2 × ¼” 6.35 mm Jack (3 pin)
Chanel Count: 2 Channels
Output level: -inf to 24dBu // 1 dB step
Dynamic Range: 130 dB
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
THD+N (A): -115 dB
Impedance Load: 56 Ohms

HEADPHONE OUTPUT

Output Connection: 1 × ¼” 6.35 mm Jack (3 pin)
Output level: 20dBu
Dynamic Range: 122 dB
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
THD+N (A): -115 dB
Impedance Load: 120 Ohms

DIGITAL INTERFACE – THUNDERBOLT™

Interface Connection: 2 × Thunderbolt 3 Ports
I/O Channel Count: 64 Channels
Daisy-chain: Supported
Remote Control: Supported, (Over USB Type-C)
Supported Sample Rates: 44.1 kHz—192 kHz, 24-bit PCM
Control Panel Support: Supported
Thunderbolt Cable: Not Included

DIGITAL INTERFACE - DANTE®

Interface Connection: 2 × RJ-45 Ports, I/O
I/O Channel Count: 64 Channels (@44.1/48.0 kHz)
Redundancy: Supported
Connectivity: Dual Ethernet, switched or redundant
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM

DIGITAL INTERFACE - HDX

Interface Connection: 4 × HDX Ports,
I/O Channel Count: 128 Channels (32 Per Port)
Primary/Secondary ports: 4 Primary
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
Delay Compensation: Supported
Manual Delay Compensation: Supported, (up to 128 samples)
Session I/O Support: Yes (16 ×16)

DIGITAL INTERFACE - MADI

Interface Connection: 2 × Optical SC Connectors
MADI Mode: Dual Wire, Optical
SMUX: Supported
MADI Protocol: AES10-2003
I/O Channel Count: 64 Channels @44.1/48.0 kHz
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM

DIGITAL INTERFACE - S/PDIF

Interface Connection: 2 × RCA Connectors
S/PDIF SRC: Supported
I/O Channel Count: 2 Channels
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM

DIGITAL INTERFACE - AES/EBU

Interface Connection: 2 × XLR Connectors
AES Mode: AES/EBU
I/O Channel Count: 2 Channels
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM

CLOCKING SYSTEM

Clocking Technology
4th Generation Acoustically Focused Clocking,
64-Bit Jitter Management DDS
Word Clock Input: 1 × Input @ 75 Ohms 3Vpp on BNC
Word Clock Output: 6 × Output @ 75 Ohms 3Vpp on BNC
Loop-Sync Input: 1 × Input @ 75 Ohms 3Vpp on BNC
Loop-Sync Output: 1 × Output @ 75 Ohms 3Vpp on BNC
10M Atomic Reference Input: 1 × Input @ 75 Ohms 1Vpp on BNC
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
