Zen Tour’s hardware-based Vintage FX.

Forget about buying expensive DSP plugins. Zen Tour offers something better.

Get creative with Antelope’s brand new hardware-based FPGA effects. These include guitar amp & cab simulations, lengedary EQ and compressor emulations, plus the extremely versatile AuraVerb reverb.

Zen Tour now comes with 30 free Overloud plug-ins
and a PreSonus Studio One Artist Version.*

[Get yours now]

*Limited offer for devices purchased after Nov 25, 2016

Overview

Fits the whole band

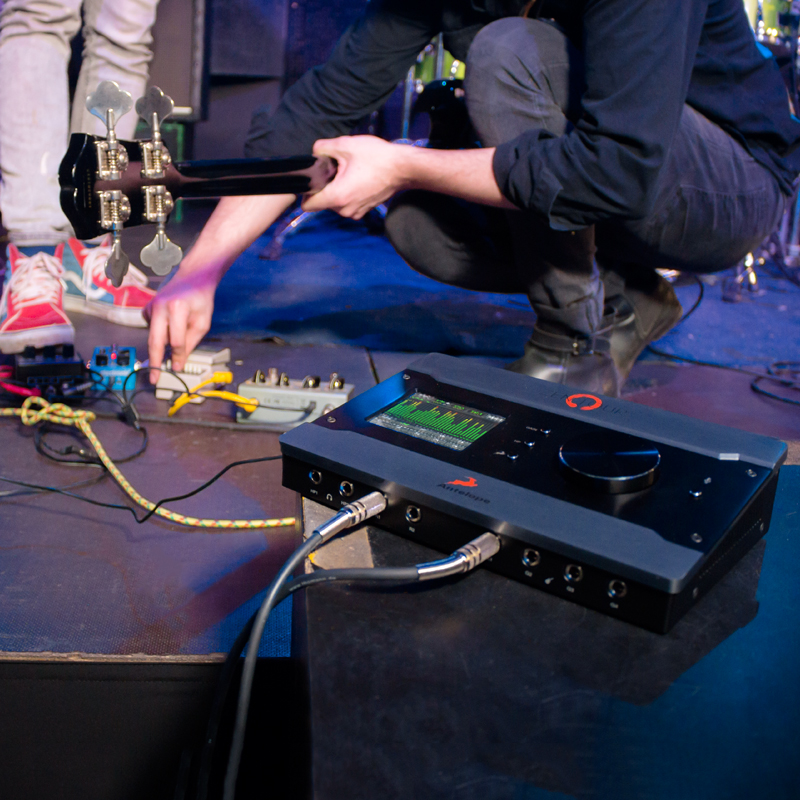

Portable – covering the needs of the whole band

Current technologies have made sound recording as easy as grabbing a pen and pouring your feelings on paper. So producing your own music has become the contemporary equivalent of writing poetry.

Unlike the solitude that writing requires, music creation is usually a shared experience. And a creative jam with friends will require at least eight channels, packed in a portable interface that could easily fit in a backpack. A simple two or four-channel audio interface is no longer enough.

features

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_microphone.svg

4 Mic/Line & 4 Line/Hi-Z ins

4 mic pres & 4 line/hi-z ins with phantom power, 8 analog outs, 2 headphone and 2 reamp outs, plus an array of digital I/O

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_cd.svg

Zero Latency

Guitar amp modeling and effects processing with virtually 0 latency

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_bolt.svg

Networking Control

Advanced Remote Apps
Control Zen Tour from multiple computers or via mobile and desktop apps

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_bolt.svg

THUNDERBOLT™ & USB

32 channels via Thunderbolt™ and 24 on USB for zero-latency audio streaming

VINTAGE GUITAR FX

FPGA based hardware models of vintage gear and equalizers, at no cost

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_shuffle_button.svg

STUNNING AD/DA

24-bit, 192 kHz audio and Antelope’s signature flawless conversion

See Zen Tour’s features

DESCRIPTION

Unbeatable amount of I/O

 for a device of that size.

With Zen Tour we have pushed the envelope once again.
Antelope is offering not just a portable Thunderbolt™ & USB audio interface, but a pro piece, easily covering the needs of a small band.

Zen Tour comes with 4 switchable Mic/Line inputs and 4 more HiZ/Line ins.
Two reamp outs and a Talkback button on the front panel put it in the spotlight of portable interfaces.

…guitarists are very much in Antelope Audio’s target: the built-in DSP effects include guitar amp and cab emulations, as well as an EQ and reverb.”

FORGET ABOUT LATENCY

Custom FPGA will allow you to create and stream multiple complex mixes and process audio with zero latency.

Zen Tour borrows the powerful Field-Programmable Gate Array (FPGA) from Antelope Audio’s top-selling pro studio devices.
This game-changing technology provides the interface with massive parallel processing capabilities, thus the lowest latency levels on the market.

…with Zen Tour, there are no more boundaries to achieving great recordings.”

Zen Tour The Portable Audio Interface

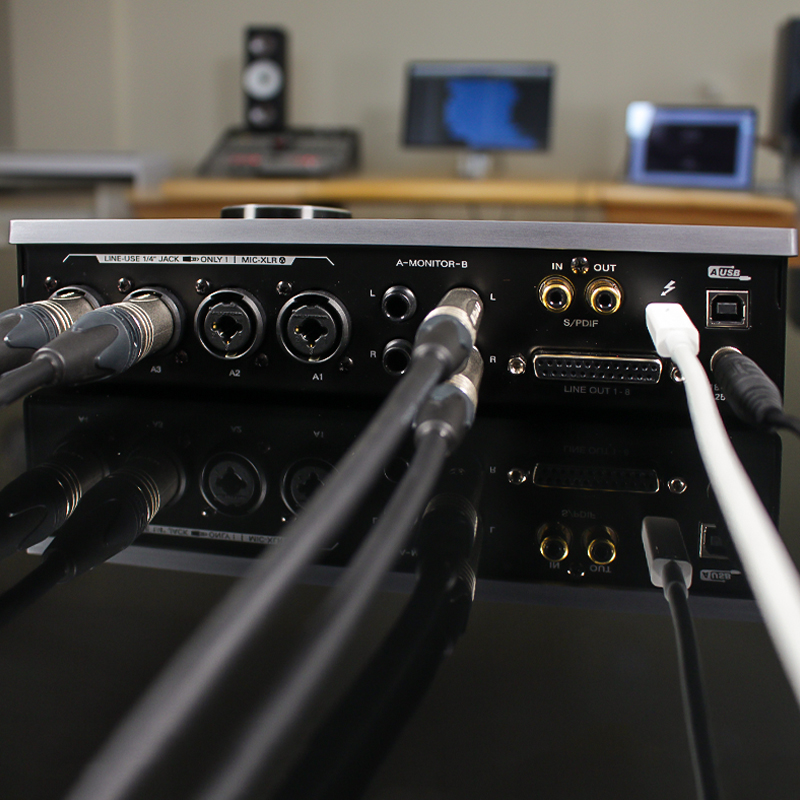

ENHANCED CONNECTIVITY

Have tons of gear hooked in – Zen Tour has quite a few options

Some portable interfaces have to go for either a decent amount of I/O channels or high-end DSP effects.

Zen Tour gives you all:

4 switchable Mic/Line
4 HiZ/Line ins
8 analog outs
digital I/O on ADAT & S/PDIF
two independent headphone amps
two separate pairs of monitor outs.

Plus, the FPGA powered Thunderbolt™ & the custom USB make the Zen Tour lightning fast and compatible with any DAW.

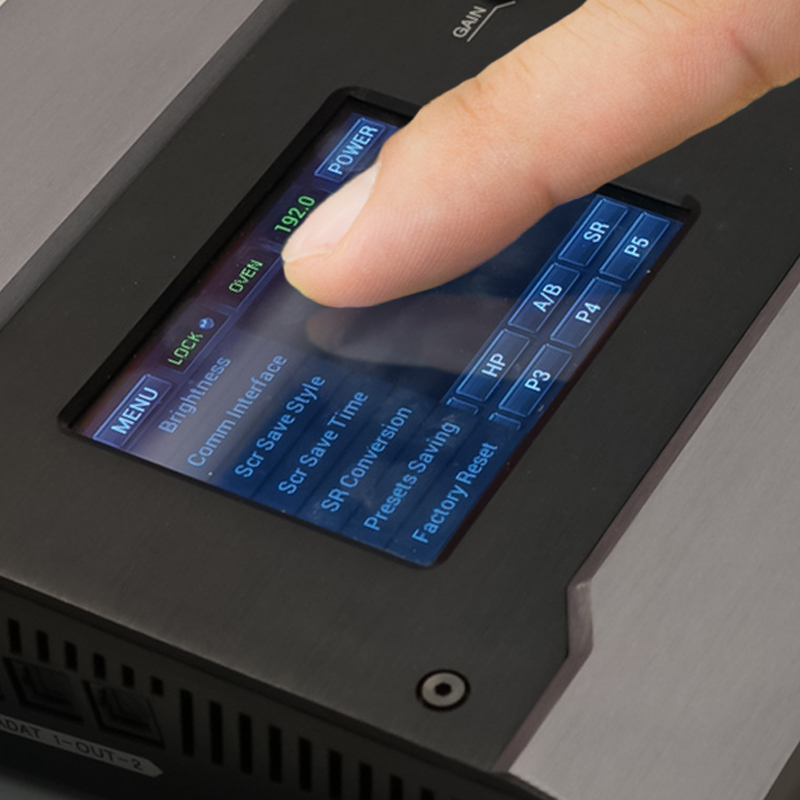

TOUCH & CONTROL

Rediscover your studio workflow with the advanced Zen Tour control options

All of Zen Tour’s features are controllable via its high-resolution touch screen.

The portable audio interface can be also managed via the Antelope Audio’s Software Control Panel for OS X and Windows and via Android and iOS mobile apps for smartphones and tablets. So both the producer and the recording artists can control Zen Tour.

google-play

Thanks to our innovative networking control concept you can now access all Zen Tour features from multiple computers.
Just make sure they are in the same network.

VIDEO TUTORIALS

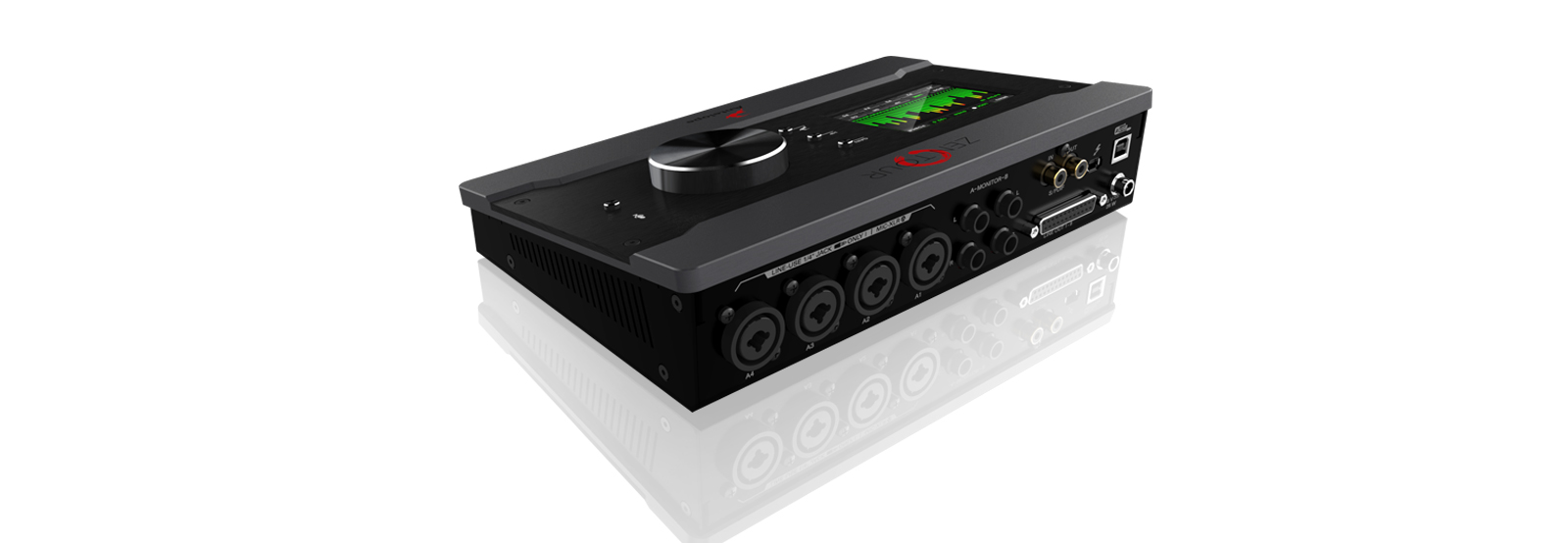

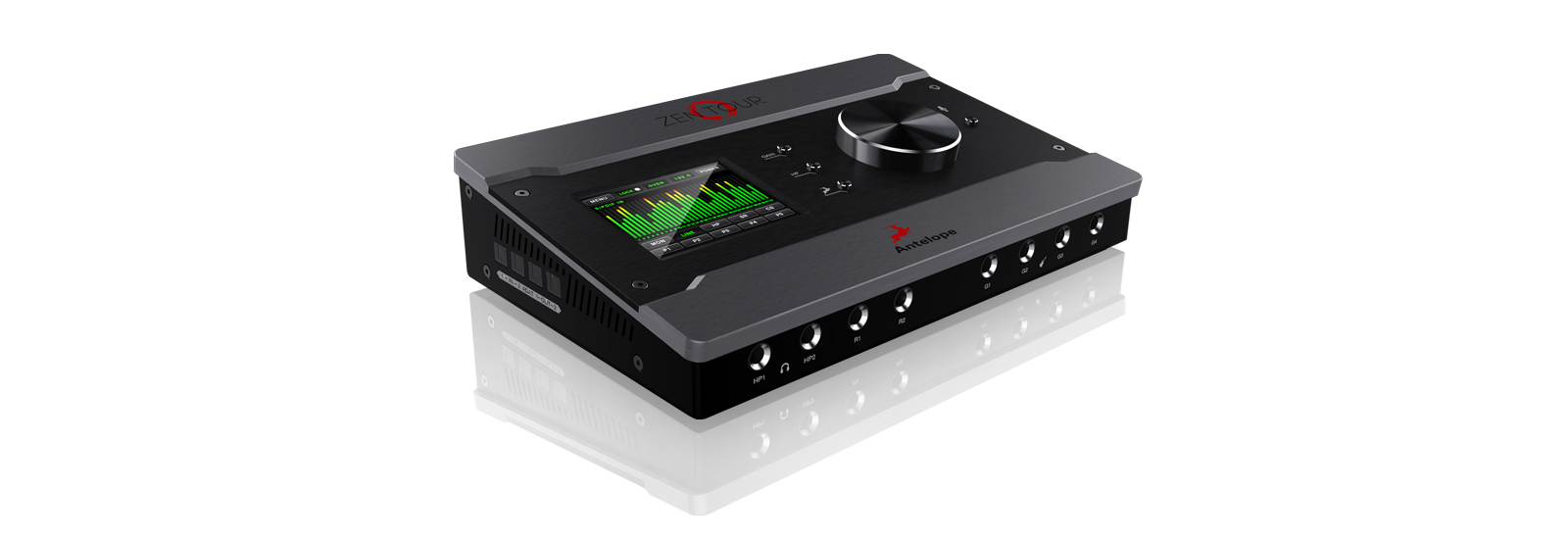

Connectivity

Specifications

  • ANALOG

    Analog Inputs
    4 x Mic / Line Instrument on XLR combos on the back
    4 x Hiz / Line on TRS on the front

    Analog Outputs
    8 x Lines on 1 x DB25 (8 channels)
    2 x Stereo Monitor out on TRS (4 channels, only 1 active at a time)
    2 x Stereo Headphone out on TRS (4 channels)
    2 x ReAmp outs on TRS (2 channels)

    D/A Monitor Converter
    Dynamic Range: 129 dB
    THD + N: -108 dB

    D/A Converter
    Dynamic Range: 120 dB
    THD + N: -107dB

    A/D Converter
    Dynamic Range: 120 dB
    THD + N: -110 dB

    Mic Preamp
    Gain: 0 – 65 dB
    THD + N: -108 dB

  • DIGITAL

    Digital Inputs
    2 x ADAT (up to 16CH)
    1 x S/PDIF

    Digital Outputs
    2 x ADAT (up to 16CH)
    1 x S/PDIF

    USB I/O
    USB 2.0 Hi-Speed;
    Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B

    Thunderbolt™ I/O
    1 x Thunderbolt™, 32 channels I/O

  • CLOCKING

    Clocking System
    4th Generation Acoustically Focused Clocking
    64-bit DDS
    Oven Controlled Crystal Oscillator

    Clocking Stability
    <+/-0.02 ppm, oven controlled at at 64.5ºC/ 148.1ºF

    Clock Aging
    < 1 ppm per year

    Clock Calibration
    <+/-0.001 ppm

    Sample Rates
    32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

  • OTHER

    Operating Temperature
    0-50°C, 32-122°F

    Weight
    1.4 kg / 3.10 lb (approx)

    Dimensions (Approx)
    Width: 25.5 mm / 10”
    Height: 5.9 mm / 2.4”
    Depth: 16.6 mm / 6.5″

    Electrical specs
    DC Universal input: 18V
    Power Consumption: 25 Watts Max

    In the box
    Zen Tour – Portable Thunderbolt™ and USB AD/DA Interface
    Wall Wart Power Supply Unit
    Cleaning Cloth
    1 USB cable
    Owner’s Manual
    Warranty Card

Audio interfaces comparison table

ANALOGZen Studio+Orion32 HDGoliathZen TourOrion StudioOrion32+Zen StudioOrion32
Analog Inserts• 2 × Inserts on 1/4″ TRS (dedicated for inputs 1, 2)N/A• 2 x Inserts on 1/4" TRS (dedicated for inputs 1, 2)N/A• 2 x Inserts on 1/4" TRS (dedicated for inputs 1, 2)N/A• 2 x Inserts on 1/4" TRS (dedicated for inputs 1, 2)N/A
Analog Inputs• 1 × DB25 (8 channels)
• 4 × Mic / Line / Hi-Z on XLR combos on the front
• 8 × Mic / Line on XLR combos on the rear
• 4 x DB 25 (32 channels total), +24 dBu max• 2 × DB25 (16 channels)
• 16 × Mic / Line on XLR combos (incl. 4 × Hi-Z)
• 4 × Hi-Z inputs on 1/4" TRS on front
• 4 × Mic / Line / Hi-Z on XLR combos
• 4 × Hi-Z / Line on 1/4" TRS
• 4 × Mic / Line / Hi-Z on XLR combos
• 8 × Mic / Line on XLR combos
• 4 x DB25 (32 channels total), +20 dBu max, 11.2 kOhms• 1 x DB25 (8 channels)
• 4 x Mic / Line / Hi-Z on XLR combos on the front
• 8 x Mic / Line on XLR combos on the rear
• 4 x DB25 (32 channels total), +20 dBu max, 11.2 kOhms
Analog Outputs• 1 × DB25 (8 channels)
• 1 × Stereo pair of Monitor outs on 1/4″” TRS
• 2 × Stereo Headphone outs on 1/4″” TRS (4 channels)
• 2 × ReAmp outs on 1/4” TRS
• 4 x DB 25 (32 channels total), +24 dBu max
• 2 x Monitor Outs on TRS 1/4 Jacks, +24 dBu max
• 3 × DB25 (24 channels)
• 2 x Stereo Monitor outs on 1/4" TRS
• 2 × Stereo Headphone outs on 1/4" TRS
• 2 × ReAmp outs on 1/4" TRS
• 1 × DB25 (8 channels)
• 2 × Stereo Monitor outs on 1/4" TRS (4 channels, only 1 pair active at a time)
• 2 × Stereo Headphone outs on 1/4" TRS
• 2 × ReAmp outs on 1/4" TRS
• 2 × DB25 (16 channels)
• 2 × Stereo Monitor outs on 1/4" TRS (4 channels, only 1 pair active at a time)
• 2 × Stereo Headphone outs on 1/4" TRS
• 2 × ReAmp outs on 1/4" TRS
• 4 x DB25 (32 channels total), +20dBu, 56 Ohms
• 2 × Stereo Monitor outs on 1/4" TRS
• 1 x DB25 (8 channels)
• 1 x Stereo pair of Monitor outs on 1/4" TRS
• 2 x Stereo Headphone outs on 1/4" TRS (4 channels)
• 4 x DB25 (32 channels total), +20 dBu, 56 Ohms
D/A Monitor ConverterDynamic Range: 118dB
THD + N: -98dB
Dynamic Range: 129 dB
THD + N: -108 dB
Dynamic Range: 129 dB;
THD + N: -108 dB
Dynamic Range: 129 dB
THD + N: -108 dB
Dynamic Range: 129 dB
THD + N: -108 dB
Dynamic Range: 129 dB
THD + N: -108 dB
Dynamic Range 118dB
THD + N -98dB
N/A
A/D ConverterDynamic Range: 118 dB
THD + N: -105 dB
Dynamic Range: 120 dB
THD + N: -110 dB
Dynamic Range: 120 dB;
THD + N: -110 dB
Dynamic Range: 120 dB
THD + N: -110 dB
Dynamic Range: 120 dB
THD + N: -110 dB
Dynamic Range: 118 dB
THD + N: -105 dB
Dynamic Range 118dB
THD + N -105dB
Dynamic Range 118dB
THD + N -105dB
D/A ConverterDynamic Range: 118 dB
THD + N: -98 dB
Dynamic Range: 120 dB
THD + N: -107 dB
Dynamic Range: 120 dB;
THD + N: -107 dB
Dynamic Range: 120 dB
THD + N: -107dB
Dynamic Range: 120 dB
THD + N: -107dB
Dynamic Range: 118 dB
THD + N: -98 dB
Dynamic Range 118dB
THD + N -98dB
Dynamic Range: 118dB
THD + N: -98 dB
Mic PreampGain: 0,10 – 65 dB
THD + N: -108 dB
N/AGain: 0, 10 – 65 dB
THD + N: -108 dB
Gain: 0 – 65 dB
THD + N: -108 dB
Gain: 0,10 – 65 dB
THD + N: -108 dB
N/AGain: 0,10 – 65dB
THD + N -108dB
N/A
DIGITALZen Studio+Orion32 HDGoliathZen TourOrion StudioOrion32+Zen StudioOrion32
Digital Inputs• 2 × ADAT (up to 16 channels)
• 1 × S/PDIF
• 1 x Fiber Optic MADI (up to 64 channels)
• 2 x ADAT (up to 16 channels)
• 1 x S/PDIF
• 2 × Fiber Optic MADI (up to 64 channels each)
• 2 × ADAT (up to 16 channels)
• 1 × S/PDIF
• 8 × AES/EBU on DB25 (16 channels)
• 2 × ADAT optical (up to 16 channels)
• 1 × S/PDIF on RCA
• 2 × ADAT (up to 16 channels)
• 1 × S/PDIF
• 1 x Fiber Optic MADI (up to 64 channels)
• 2 x ADAT (up to 16 channels)
• 1 x S/PDIF
• 2 x ADAT (up to 16 channels)
• 1 x S/PDIF
• 1x Fiber Optic MADI (up to 64 channels)
• 2 x ADAT (up to 16 channels)
• 1x S/PDIF
Digital Outputs• 2 × ADAT (up to 16 channels)
• 1 × S/PDIF
• 1 x Fiber Optic MADI (up to 64 channels)
• 2 x ADAT (up to 16 channels)
• 1 x S/PDIF
• 2 × Fiber Optic MADI (up to 64 channels each)
• 2 × ADAT (up to 16 channels)
• 1 × S/PDIF
• 8 × AES/EBU on DB25 (16 channels)
• 2 × ADAT optical (up to 16 channels)
• 1 × S/PDIF on RCA
• 2 × ADAT (up to 16 channels)
• 1 × S/PDIF
• 1 × Fiber Optic MADI (up to 64 channels)
• 2 × ADAT (up to 16 channels)
• 1 × S/PDIF
• 2 x ADAT (up to 16 channels)
• 1 x S/PDIF
• 1 × Fiber Optic MADI (up to 64 channels each)
• 2 × ADAT (up to 16 channels)
• 1 × S/PDIF
USBUSB 2.0 Hi-Speed;
Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B
USB 3.0
64 channels I/O up to 192kHz, Type B connector
USB 2.0 Hi-Speed;
Data stream up to 480 Mbits/192kHz, 32 channels I/O, Type B
USB 2.0 Hi-Speed;
Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B
USB 2.0 Hi-Speed;
Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B
USB 2.0 Hi-Speed;
Data stream up to 480 Mbits/192kHz, 32 channels I/O, Type B
USB 2.0 Hi-Speed;
Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B
USB 2.0 Hi-Speed;
Data stream up to 480 Mbits/192kHz, 32 channels I/O, Type B
Thunderbolt™1 x Thunderbolt™ (32 channels I/O)N/A1 × Thunderbolt™ (64 channels I/O)1 × Thunderbolt™ (32 channels I/O)1 × Thunderbolt™ (32 channels I/O)1 × Thunderbolt™ (64 channels I/O)N/AN/A
HDX ConnectivityN/A2 x mini HDX connectors for direct Pro Tools connection
32 Channels I/O each ( total of 64 channels )
N/AN/AN/AN/AN/AN/A
CLOCKINGZen Studio+Orion32 HDGoliathZen TourOrion StudioOrion32+Zen StudioOrion32
Word Clock Input1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz1 × Input @ 75 Ohms on BNC 32 –192kHzN/A1 × Input @ 75 Ohms on BNC 32 –192kHz1 × Input @ 75 Ohms on BNC 32 –192kHz1 × Input @ 75 Ohms on BNC 32 –192kHz1 × Input @ 75 Ohms on BNC 32 –192kHz
Word Clock Output1 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz2 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz2 × Outputs @ 75 Ohms on BNC 32 –192kHzN/A1 × Outputs @ 75 Ohms on BNC 32 –192kHz2 × Outputs @ 75 Ohms on BNC 32 –192kHz1 × Outputs @ 75 Ohms on BNC 32 –192kHz4 × Outputs @ 75 Ohms on BNC 32 –192kHz square wave signal
Atomic Clock InputN/A1 x 10M Input @ 75 Ohms 1Vpp on BNC1 x 10MHz Input @ 75 Ohms 1Vpp on BNCN/AN/A1 × 10MHz Input @ 75 Ohms on BNCN/A1 x 10MHz Input @ 75 Ohms on BNC
Clocking System• 4th Generation Acoustically Focused Clocking
• 64-bit DDS
• Oven Controlled Crystal Oscillator
• 4th Generation Acoustically Focused Clocking
• 64-bit DDS
• Oven Controlled Crystal Oscillator
• 4th Generation Acoustically Focused Clocking
• 64-bit DDS
• Oven Controlled Crystal Oscillator
• 4th Generation Acoustically Focused Clocking
• 64-bit DDS
• Oven Controlled Crystal Oscillator
• 4th Generation Acoustically Focused Clocking
• 64-bit DDS
• Oven Controlled Crystal Oscillator
• 4th Generation Acoustically Focused Clocking
• 64-bit DDS
• Oven Controlled Crystal Oscillator
• 4th Generation Acoustically Focused Clocking
• 64-bit DDS
• Oven Controlled Crystal Oscillator
• 4th Generation Acoustically Focused Clocking
• 64-bit DDS
• Oven Controlled Crystal • Oscillator
Clock Stability<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF
Clock Aging< 1 ppm per year< 1 ppm per year< 1 ppm per year< 1 ppm per year< 1 ppm per year< 1 ppm per year< 1 ppm per year< 1 ppm per year
Clock Calibration< +/-0.001 ppm< +/-0.001 ppm< +/-0.001 ppm< +/-0.001 ppm< +/-0.001 ppm< +/-0.001 ppm< +/-0.001 ppm< +/-0.001 ppm
Sample Rates32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
OTHERZen Studio+Orion32 HDGoliathZen TourOrion StudioOrion32+Zen StudioOrion32
Operating Temperature0-50°C, 32-122°F0-50°C, 32-122°F0-50°C, 32-122°F0-50°C, 32-122°F0-50°C, 32-122°F0-50°C, 32-122°F0-50°C, 32-122°F0-50°C, 32-122°F
Electrical SpecsDC Universal input: 18V
Power Consumption: 25 Watts Max
AC Universal input: 95-245V
Power Consumption: 30 Watts Max.
AC Universal input: ~95-245 V
Power Consumption: 40 Watts Max
DC Universal input: 18V
Power Consumption: 25 Watts Max
DC Universal input: 18V
Power Consumption: 25 Watts Max
AC Universal input: ~95-245 V
Power Consumption: 20 Watts Max
DC Universal input: 18V
Power Consumption: 25 Watts Max
AC Universal input: 95-245V
Power Consumption: 20 Watts Max.
Weight (aprox)2 kg/4.41 lbs approx.3.6 kg/ 8.0 lbs approx.6.8 kg / 15 lbs1.4 kg / 3.09 lbs3.1 kg / 6.83 lbs3 kg / 6.6 lbs
2 kg / 4.41 lb3 kg / 6.6 lb
Dimensions (aprox)Width: 418 mm / 16.5”
Height: 45 mm / 1.8”
Depth: 145mm / 5.7″
Width: 483 mm / 19”
Height: 44 mm / 1.75”
Depth: 270mm / 10.63″
Width: 48 3mm / 19”
Height: 81 mm / 3.2”
Depth: 279 mm / 11”
Width: 25.5 mm / 10”
Height: 5.9 mm / 2.4”
Depth: 16.6 mm / 6.5″
Width: 483 mm / 19”
Height: 44 mm / 1.7”
Depth: 220 mm /8.6”
Width: 483 mm / 19”
Height: 44 mm / 1.75”
Depth: 220 mm / 8.66”
Width: 418 mm / 16.5”
Height: 45 mm / 1.8”
Depth: 145 mm / 5.7”
Width: 483 mm/19”
Height: 44 mm/1.75”
Depth: 220 mm/8.66”
In the box• Zen Studio+ Portable Audio interface
• Quick Start Guide
• Warranty Card
• 1 DC Power Adapter
• 1 USB Cable
• Orion32 HD Portable Audio interface
• Owner’s Manual
• Warranty Card
• AC Power Cord
• 1 USB 3.0 Cable
• Goliath – ThunderboltTM and USB AD/DA Interface
• Owner’s Manual
• Warranty Card
• 1 AEC Power cable
• 1 USB cable
• Zen Tour – Portable Thunderbolt™ and USB AD/DA Interface
• Cleaning Cloth
• Owner’s Manual
• Warranty Card
• Wall Wart Power Supply Unit
• 1 USB cable
• Orion Studio – Thunderbolt™ and USB AD/DA Interface with 12 mic pres
• Owner’s Manual
• Warranty Card
• 1 DC Power supply
• 1 USB cable
• Orion32+ 32-channel AD/DA Interface with AFC™ Clocking Technology
• Owner’s Manual
• Warranty Card
• Power cable
• 1 USB cable
• Zen Studio Portable Audio interface
• Owner’s Manual
• Warranty Card
• 1 DC Power Adapter
• 1 USB Cable
• Orion³² Multi-Channel AD/DA Converter
• Owner’s Manual
• Warranty card
• Power cable
• 1 USB cable

System requirements

Windows

OS: Windows 7/8/8.1/10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth: 80%-90%
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)

MAC

OS X: 10.9/10.10/10.11/10.12 (El Capitan 10.11.6 Recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Thunderbolt: 1x Thunderbolt/USB-C Port
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.

FEATURED REVIEWS

DOWNLOADS

MANUALS

User manual

Zen Tour user manual – PDF

SOFTWARE

Launchers

Windows
Download Zen Tour Launcher for Windows 7 and newer (Jan 8, 2017)

MAC
Zen Tour Launcher for Mac OS X 10.9 and newer (Jan 8, 2017)

Remote Control Apps

Android
Android app remote for Zen Tour

Apple
Apple app remote for Zen Tour

Zen Studio+

Zen Studio+

Portable Thunderbolt™ and USB interface with 12 mic pres

Orion32 HD

Orion32 HD

64 channel HDX & USB 3.0 Audio Interface

Orion Studio

Orion Studio

Thunderbolt ™ & USB Audio Interface

Goliath

Goliath

Thunderbolt ™, USB & MADI Audio Interface
