FUSION OF FLAWLESS CLOCKING TECHNOLOGIES

10MX features the atomic precision of 10M and Trinity’s groundbreaking jitter management algorithm

10MX is the newest and the premier member of the Isochrone family. It features technologies from two of Antelope’s legendary products. The atomic precision of the 10M and the sophisticated jitter-management algorithm of Trinity are combined in a futuristic, 1U rack space enclosure, providing the world’s most stable and musical clocking.

10MX is a fusion of proven technologies and contemporary industrial design, where no compromises are allowed and both build-quality, and performance-excellence are top priority. The new Rubidium Atomic Clock is an epiphany of more than 20 years’ expertise in the digital audio world, making vividly real the clarity, depth, width and 3-dimensionality distinctive of the analog sound.

10mx features

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_target.svg

4 WORD CLOCK outputs

The master clock beast: 4 Word Clock outputs allowing up to 768 kHz

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_move.svg

64-BIT ACOUSTICALLY FOCUSED CLOCKING

Flawless clocking powered by Antelope Audio’s world-renowned jitter management algorithm

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_shuffle_button.svg

MULTIPLE ATOMIC OUTPUTS

The 10MX’s multiple atomic outputs allow up to 10 devices to be simultaneously clocked

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_glide_vertical.svg

Additional outputs

2 x S/PDIF and 2 x AES/EBU master clocking outputs up to 192 kHz

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_mixer2.svg

MAXIMUM CONTROL

Intuitive Software Control Panel

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_laptop.svg

PC/Mac connection

PC/Mac connection via USB, allowing remote control and firmware upgrades

10M & Trinity’s legacy

DESCRIPTION

ATOMIC CLOCKING

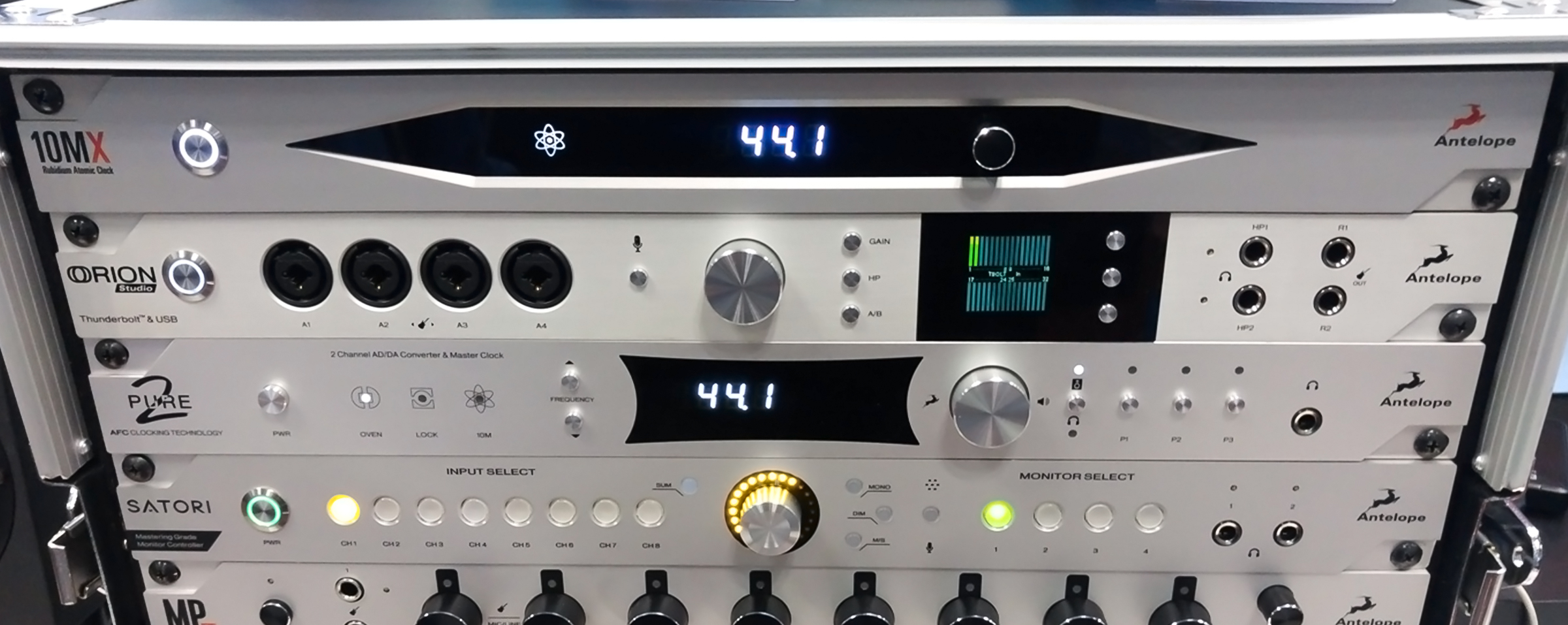

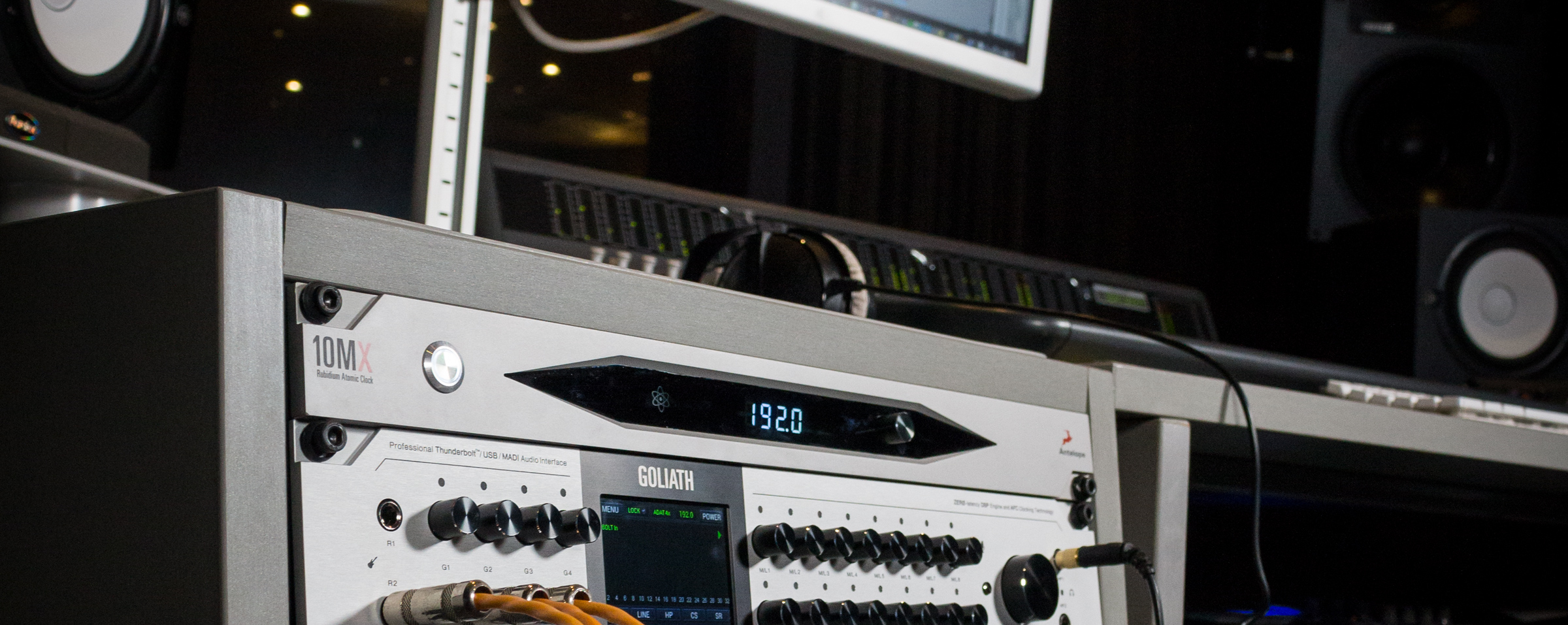

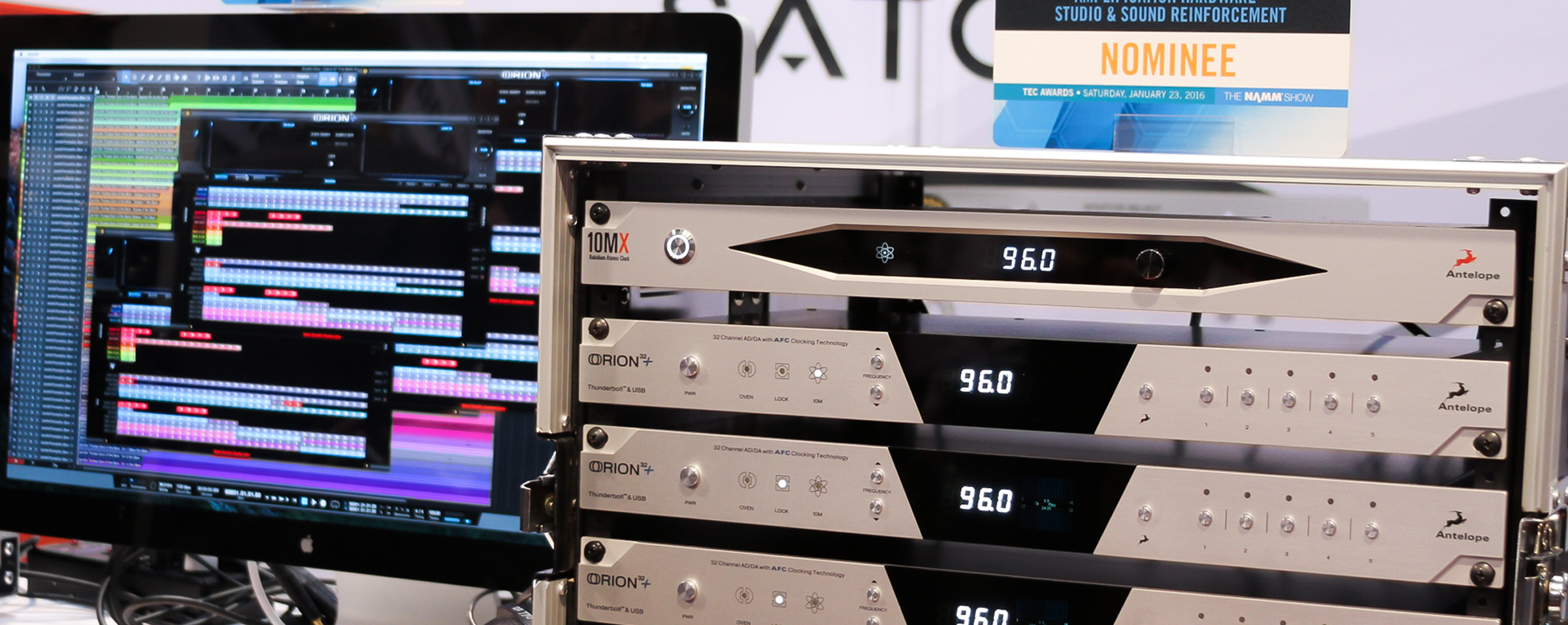

10MX fits any studio environment – from recording to mixing and mastering

10MX is perfectly suited for recording, mixing and mastering environments. Its form factor, occupying only 1U of rack space, makes it ideal for live sound application where rack slots are precious commodity.

The multiple atomic outputs allow up to 10 devices to be clocked simultaneously over BNC outputs of 10MHz. The unit can also be used as a master clock with 4 outputs, supporting the outstanding sampling rate of up to 768 kHz via BNC. Two more clocking outputs are available via AES and two via S/PDIF.

‘I’ve always been skeptical about people saying that they use a world. This is one of the first times I’ve actually had the time to sit down and do it… and I’m shocked”

PAUL BEVAN is one of New York’s busiest and most in-demand Sound Engineers, Production and Tour Managers, working on a wide variety of major corporate, special event and music projects, including: Hall & Oates, Boston Pops, World Economic Forum, NBC Today Show Summer Concert Series, US Open Tennis Finals, Lord of the Rings live to Projection, Re-dedication of Grand Central Terminal, and many other prestigious events.

Watch the full video

ADVANCED CONTROL

Access all features of 10MX via its user-friendly software app or from the sleek front panel

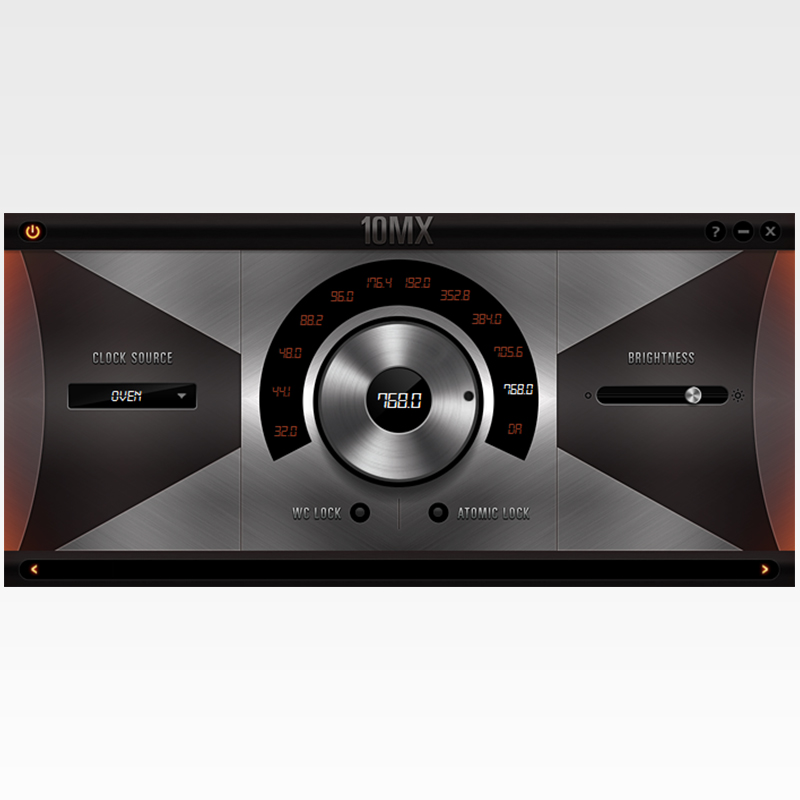

The new Rubidium Atomic Clock is equally easy manageable either from the front panel or the intuitive software control panel available for OS X and Windows, connecting via a USB port.

the legend grows

The 10MX continues the legacy of the world renowned 10M and Trinity

The new Rubidium Atomic Clock is an epiphany of more than 20 years’ expertise in the digital audio world, making vividly real the clarity, depth, width and 3-dimensional distinctive of the analog sound.

VIDEO TUTORIALS

TUTORIALS COMING SOON

Our team is working on it. If you have questions regarding the 10MX, please contact us.

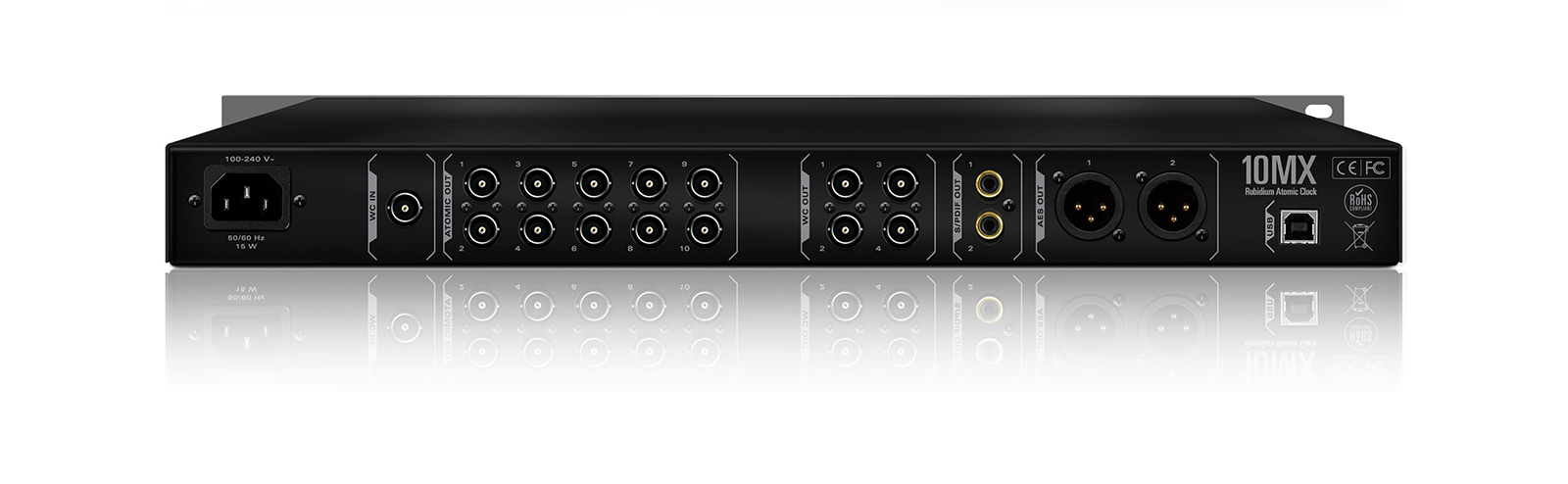

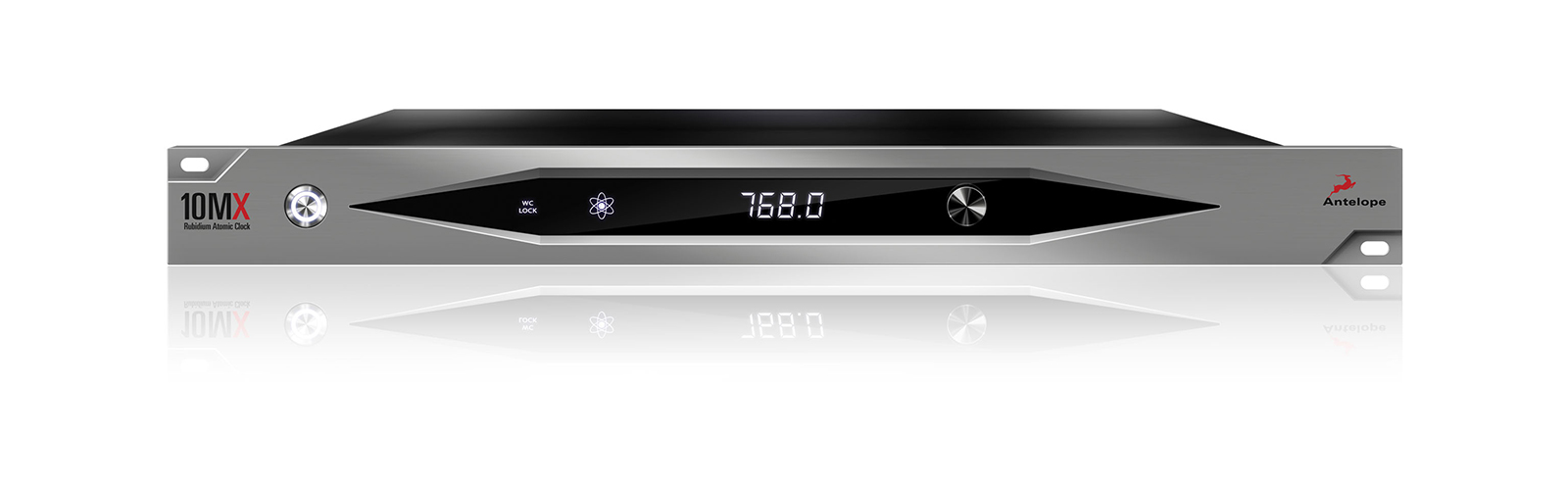

Connectivity

Specifications

    • Phase Noise (SSB)

1Hz ≤-70 dBc/Hz
10Hz ≤-87 dBc/Hz
100Hz ≤-114 dBc/Hz
1kHz ≤-130 dBc/Hz
10kHz ≤-140 dBc/Hz

    • Short-Term Stability

t=1s ≤3E-11
t=10s ≤1.6E-11
t=100s ≤8E-12
Time drift in a 24-hr period:

    • Warm-Up Time

8 – 10 minutes (depends on ambient temperature)

    • Word Clock Input

1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 – 384kHz

    • Maximum shock
      withstanding

Non-operating, flight case mounted:
100m/s2 (~10.2 g*), 11 msec half-sine pulse per IEC 60068-2-27:2008
Non-operating, in original packing:
300m/s2 (~30.6 g*), 5 msec half-sine pulse per IEC 60068-2-27:2008
* g – gravitational acceleration

    • Outputs

Word Clock: 4 x BNC
AES/EBU: 2 x XLR
S/PDIF: 2 x RCA

    • Word Clock Outputs

4 x Word Clock Outputs @ 75 Ohms 3Vpp on BNC 44.1 – 768 kHz square wave signal

    • USB I/O

USB 2.0 Hi-Speed; Data stream up to 480Mbits/384kHz, Type B

    • Clocking System

4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator

    • Clock Stability

<+/-0.0 2 PPM, oven controlled at 64.5 °C

    • Atomic Reference Type

Rubidium Ultra-Stable Resonance-Controlled Master Oscillator

    • Frequency

10 MHz

    • Frequency Accuracy

Better than ±5E-11 @25C (±0.05 PPB)

    • Aging

Daily* ±2.5E-11
Monthly* ±1E-10
Yearly ±1E-9
(*After 1 day & 1 month of operation respectively)

    • Atomic Clock Outputs

10 x BNC Sinusoidal, 10MHz, 75 Ohm, 1Vpp typical (unload)

    • Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768

    • Word Clock Specs

TTL Level, 75 Ohm Output Impedance

    • USB

USB 2.0 Full-Speed, Type B, only for control

    • Operating Temperature

0-50°C, 32-122°F

    • Weight

2.8 kg/6.17 lb

    • Dimensions

482.6 (W) х228 (D) х 44 (H) mm
19 (W) x 9 (D) x 1.73 (H) inch

    • Power Supply

AC

    • Power Consumption

15 W

    • Humidity

30 – 80% RH non-condensing

    • Power Supply Input

100 – 240 V~

Master Clocks comparison table



10MX

LIVECLOCK

OCXHD

TRINITY

10M

10MX

LiveClock

OCXHD

TRINITY

10M

Atomic Reference Type

Rubidium Ultra-Stable Resonance Controlled
Master Oscillator
xxxRubidium Ultra-Stable Resonance Controlled
Master Oscillator

Clocking System

x4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
x

Clock Stability

t=1s ≤3E-11
t=10s ≤1.6E-11
t=100s ≤8E-12
<+/- 0.02 ppm, oven controlled at 64.5°C/ 148.1°F<+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F< +/-0.02ppm @ 64.5°CTypical: 0.05 PPB per month (measured after 6 months of continuous operation)
First Year < 2 PPB

Clock Aging

Daily* ±2.5E-11
Monthly* ±1E-10
Yearly ±1E-9
(*After 1 day & 1 month of operation respectively)
< 1 ppm per year< 1 ppm per year< 1 ppm per yearBetter than 0.02 PPB
Typical: 0.05 PPB per month (measured after 6 months
of continuous operation)
First Year < 2 PpB

Warm-Up Time

8 – 10 minutes (depends on ambient temperature)xxx8-10 minutes (depends on ambient temperature)

Inputs

1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 – 384kHz
1x Word Clock up to 192kHz
1x Atomic Input
2x Word Clock Inputs up to 768kHz
1 x 10M Atomic Clock Input
1x Video Input accepting wide range of SD and HD video signals
2x S/PDIF Inputs up to 192kHz
1x AES/EBU Input up to 192kHz
2 selectable Word Clock on BNC 32kHz – 384kHz
1x Atomic Input
1x Universal video input on BNC.
1x AES/EBU on XLR. 32kHz – 192kHz @110Ω terminated
1x S/PDIF on RCA. 32kHz – 192kHz @75Ω terminated
x

Outputs

4 x Word Clock Outputs on BNC 44.1 – 768 kHz square wave signal
10 x BNC Sinusoidal, 10MHz, 75 Ohm, 1Vpp typical (unload)
2 x AES/EBU on XLR
2 x S/PDIF on RCA
4x Word Clock Outputs up to 192 kHz
2x AES/EBU Outputs up to 192 kHz
2x S/PDIF Outputs up to 192 kHz
10x Word Clock Outputs up to 768kHz
4x AES/EBU Outputs up to 192kHz
2x S/PDIF Outputs up to 192kHz
Wordclock – 16 BNC, 3Vpp @ 75Ω
6x HD Video BNC @75Ω
SD 1 – BNC @75Ω fixed for NTSC video standard. Black Burst
SD 2 – BNC @75Ω fixed for PAL video standard. Black Burst
SD 3 – BNC @75Ω PAL 24/NTSC 30 selectable.Composite Sync
SD 4 – BNC @75Ω PAL 48/PAL 47.95 selectable. Composite Sync
AES/EBU – 4 XLR @ 110Ω
S/PDIF – 4 RCA @ 75Ω
8 x Atomic Clock Output on BNC Sinusoidal, 70 Ohm, 1 Vpp typical (unload)

USB I/O

USB 2.0 Full-Speed, Type B, only for controlUSB 2.0 Hi-Speed, Type B, only for control1x USB Input for control2.0 full-speedx

Frequency & Accuracy

10 MHz, better than ±5E-11 @25C (±0.05 PPB)xxx10 MHz, better than 0.03 PPB

Sample Rates

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

Power Supply

AC Universal Input ~100-240V, 15 Watts max.DC Universal Input 12 – 18V, 6 Watts max.AC Universal Input ~95-245V, 20 Watts max.AC Universal Input ~90-250V, 15 Watts max.AC & DC Dual Redundant ~100-240V; 12V, 40 Watts during start up / 17 Watts after warm up

System requirements

Windows

OS: Windows 7/8/8.1/10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth (for firmware update): 80%-90%
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)

MAC

OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.
