Overview

real atomic technology

Isochrone 10M was specifically designed by Antelope Audio to reach the most demanding audiophiles and audio professionals.

So, if your goal is to set up your studio for maximum performance, you will certainly appreciate a clocking reference that is a staggering 100,000 times more accurate than the quartz oscillators used in most equipment.

10m features

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_target.svg

RUBIDIUM CORE

Swiss-made Rubidium core with accuracy of 0.03 ppb (parts per BILLION)

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_move.svg

JUST PLUG & PLAY

Like anything Antelope Audio just connect, power it on and the 10M is good to go

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_shuffle_button.svg

BNC outputs

8 BNC Outputs of 10 MHz

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_target.svg

Atomic Oscillator

Ultra-precise Atomic oscillator with stability of 1 second in 1,000 years

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_move.svg

DUAL POWER SUPPLY

Dual Redundant power supply with automatic switchover

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_shuffle_button.svg

OCX & OCX-V FRIENDLY

The 10M is the perfect companion to the OCX, OCX-V, Trinity and any 10 MHz reference compatible device

The legendary 10M

DESCRIPTION

Rubidium atomic reference generator

For those refusing to accept compromises in audio quality there is the Isochrone 10M – a Rubidium Atomic Reference Generator based on real atomic technology. The 10M is designed specifically to appeal to the most discerning audiophiles and audio professionals.

The ultimate tool in achieving analog sound

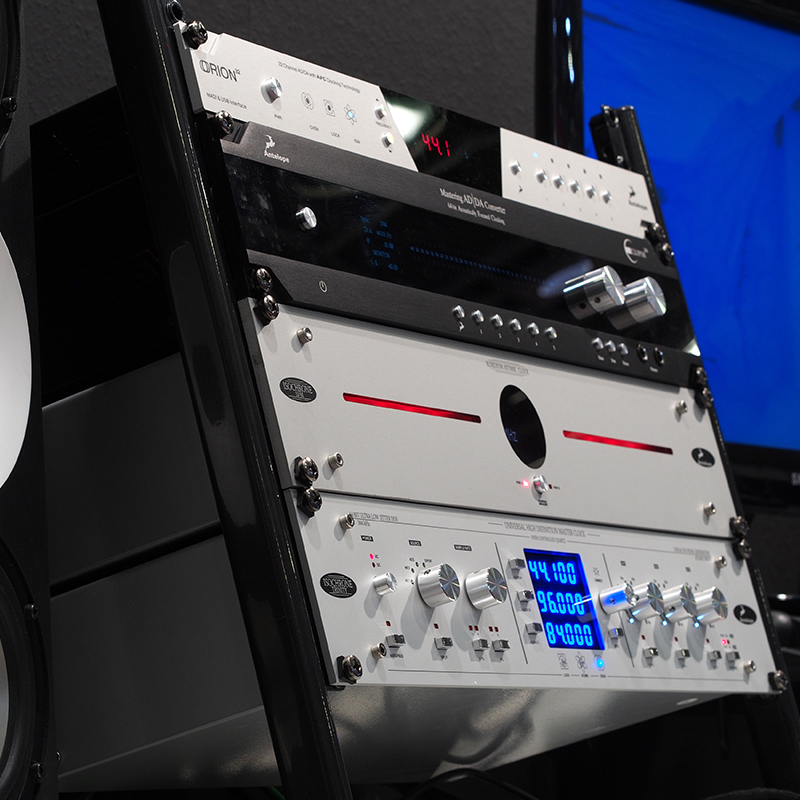

The Rubidium Atomic Clock is the perfect companion to the Isochrone audio master clocks such as the OCX or OCX-V

When connected to the Isochrone 10M, these devices switch over automatically from oven-based crystal to the superior Rubidium Core. Isochrone 10M is the ultimate tool in achieving analog sound. Experts agree that 10M is probably “the best sounding clock” ever produced.

A sturdy mechanical construction

Suited for every environment

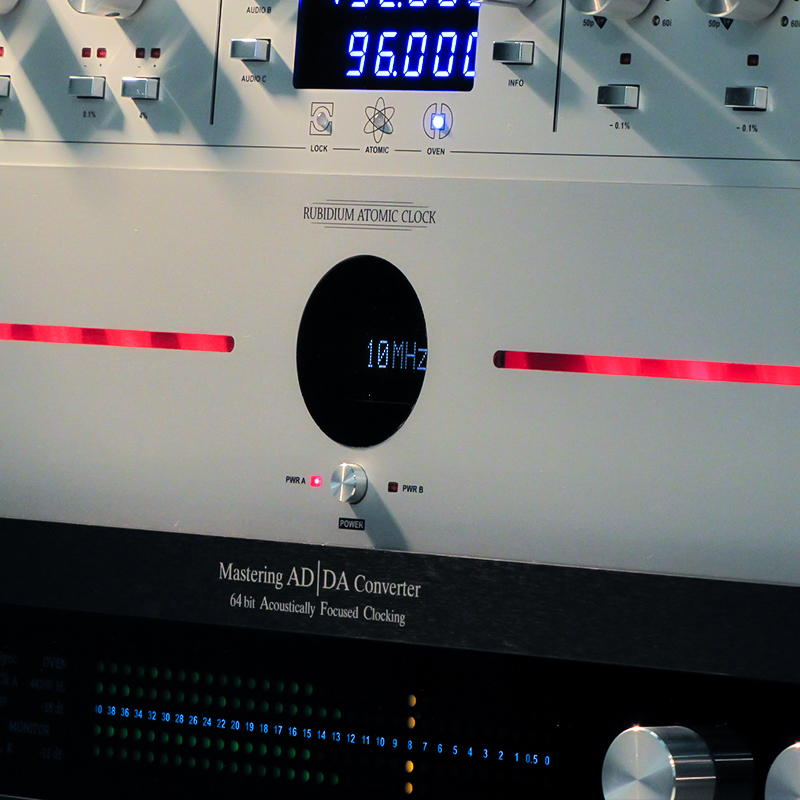

The Atomic Clock is distinguished by an extremely sturdy mechanical construction, making it highly resistant to mechanical shocks. In the Antelope tradition of making things easy to use, just connect and power it on; the status lights are visible at a glance and all information is prominently shown on the easy-to-read frequency display.

… My mixes came to life and my low end was punchy and round while my top end had sizzle but not knife stabbing in the ear.”

Rober Dugan Robert has been interested in audio from a very young age and decided to pursue a degree in Audio Engineering. He graduated from SAE Institute of Technology with an outstanding 4.0 GPA. Immediately following, he went on tour all over the world as a Tour Manager, Production Manager, Front of House Engineer, and Monitor engineer working with Grammy winning artist to small bands still trying to make it. Since August 2011 Robert has been working as Production Manager and Front of House Engineer with Mike Posner

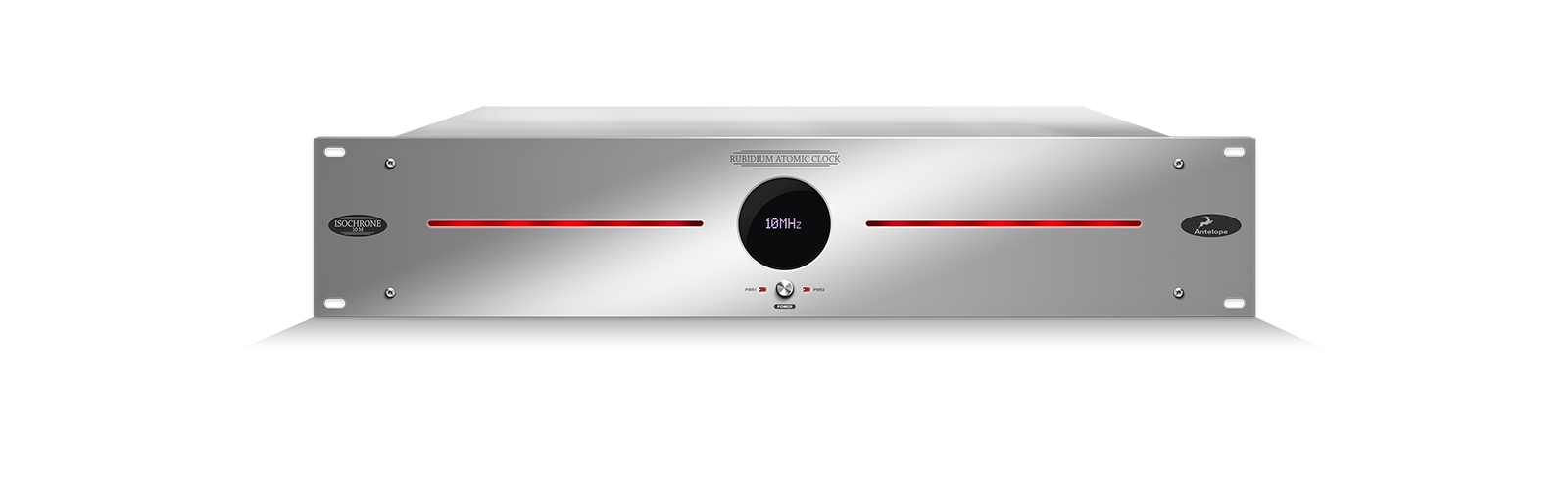

10M - 10 MHz Rubidium Atomic Reference Generator

VIDEO TUTORIALS

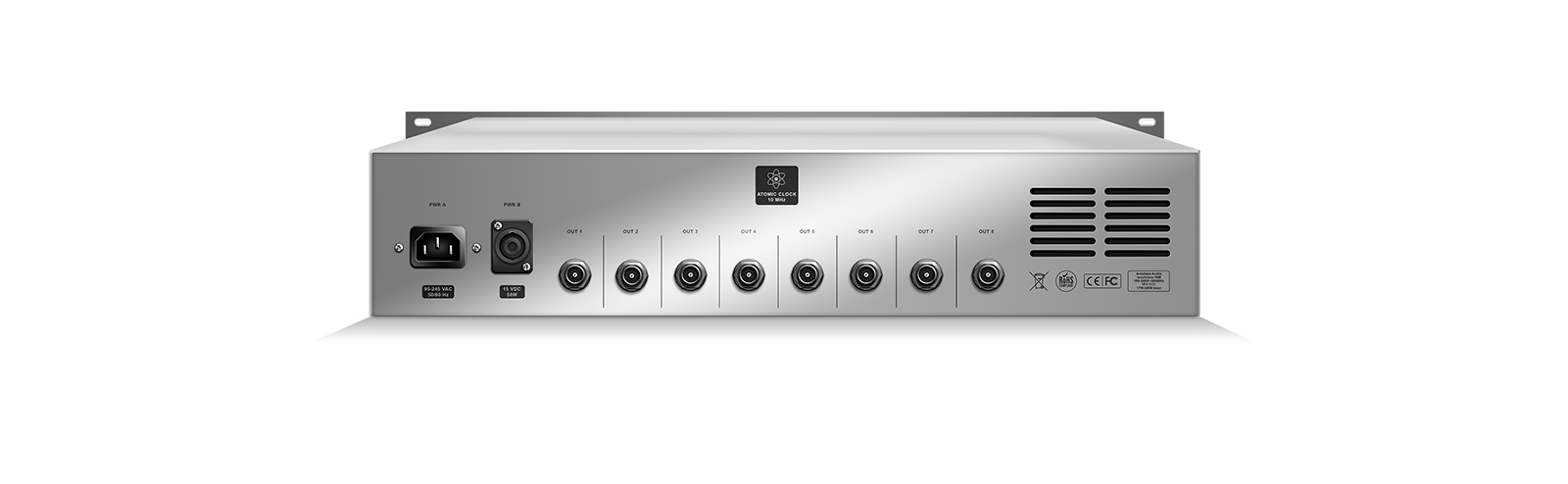

Connectivity

Specifications

    • Atomic Reference Type

Rubidium Ultra-Stable Reasonance- Controlled
Master Oscillator

    • Frequency

10 MHz

    • Frequency Accurancy

Better than 0.03 PPB (parts per BILLION)

    • Long-Term Stability

Better than 0.02 PPB
Typical: 0.05 PPB per month (measured after 6 months
of continuous operation)
First Year < 2 PpB

    • Short-Term Stability

Standart
0.03 PPB per second
0.01 PPB per 10 seconds
0.003 PPB per 100 seconds

    • Warm Up Time

8-10 minutes (depends on ambient temperature)

    • Power Supply Type

AC and DC, Dual Reduntant

    • Power Supply Input

100-240V – 50/60 Hz
12V

    • Power Consumption

40 W during the warm-up
17 W at standart operation (after the warm-up)

    • Inrush Current

Maximum 50A at 264 V AC

    • Atomic Clock Output

8 x BNC Sinusoidal, 10 MHz, 70 Ohm, 1 Vpp typical (unload)

    • Humidity

Maximum 80%

    • Dimensions

434 mm (W) x 81 mm (H) x 205 (D)
17″ (W) x 3.2″ (H) x 8″ (D)

    • Phase Noise 10 MHz

Standart
-140 dBc per Hz at 10 Hz

    • Operating Temperature

0-45C
32-113F

    • Weight

5.7 kg/12.9 lb

Master clocks comparison table



10MX

LIVECLOCK

OCXHD

TRINITY

10M

10MX

LiveClock

OCXHD

TRINITY

10M

Atomic Reference Type

Rubidium Ultra-Stable Resonance Controlled
Master Oscillator
xxxRubidium Ultra-Stable Resonance Controlled
Master Oscillator

Clocking System

x4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
x

Clock Stability

t=1s ≤3E-11
t=10s ≤1.6E-11
t=100s ≤8E-12
<+/- 0.02 ppm, oven controlled at 64.5°C/ 148.1°F<+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F< +/-0.02ppm @ 64.5°CTypical: 0.05 PPB per month (measured after 6 months of continuous operation)
First Year < 2 PPB

Clock Aging

Daily* ±2.5E-11
Monthly* ±1E-10
Yearly ±1E-9
(*After 1 day & 1 month of operation respectively)
< 1 ppm per year< 1 ppm per year< 1 ppm per yearBetter than 0.02 PPB
Typical: 0.05 PPB per month (measured after 6 months
of continuous operation)
First Year < 2 PpB

Warm-Up Time

8 – 10 minutes (depends on ambient temperature)xxx8-10 minutes (depends on ambient temperature)

Inputs

1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 – 384kHz
1x Word Clock up to 192kHz
1x Atomic Input
2x Word Clock Inputs up to 768kHz
1 x 10M Atomic Clock Input
1x Video Input accepting wide range of SD and HD video signals
2x S/PDIF Inputs up to 192kHz
1x AES/EBU Input up to 192kHz
2 selectable Word Clock on BNC 32kHz – 384kHz
1x Atomic Input
1x Universal video input on BNC.
1x AES/EBU on XLR. 32kHz – 192kHz @110Ω terminated
1x S/PDIF on RCA. 32kHz – 192kHz @75Ω terminated
x

Outputs

4 x Word Clock Outputs on BNC 44.1 – 768 kHz square wave signal
10 x BNC Sinusoidal, 10MHz, 75 Ohm, 1Vpp typical (unload)
2 x AES/EBU on XLR
2 x S/PDIF on RCA
4x Word Clock Outputs up to 192 kHz
2x AES/EBU Outputs up to 192 kHz
2x S/PDIF Outputs up to 192 kHz
10x Word Clock Outputs up to 768kHz
4x AES/EBU Outputs up to 192kHz
2x S/PDIF Outputs up to 192kHz
Wordclock – 16 BNC, 3Vpp @ 75Ω
6x HD Video BNC @75Ω
SD 1 – BNC @75Ω fixed for NTSC video standard. Black Burst
SD 2 – BNC @75Ω fixed for PAL video standard. Black Burst
SD 3 – BNC @75Ω PAL 24/NTSC 30 selectable.Composite Sync
SD 4 – BNC @75Ω PAL 48/PAL 47.95 selectable. Composite Sync
AES/EBU – 4 XLR @ 110Ω
S/PDIF – 4 RCA @ 75Ω
8 x Atomic Clock Output on BNC Sinusoidal, 70 Ohm, 1 Vpp typical (unload)

USB I/O

USB 2.0 Full-Speed, Type B, only for controlUSB 2.0 Hi-Speed, Type B, only for control1x USB Input for control2.0 full-speedx

Frequency & Accuracy

10 MHz, better than ±5E-11 @25C (±0.05 PPB)xxx10 MHz, better than 0.03 PPB

Sample Rates

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

Power Supply

AC Universal Input ~100-240V, 15 Watts max.DC Universal Input 12 – 18V, 6 Watts max.AC Universal Input ~95-245V, 20 Watts max.AC Universal Input ~90-250V, 15 Watts max.AC & DC Dual Redundant ~100-240V; 12V, 40 Watts during start up / 17 Watts after warm up

FEATURED REVIEWS

Downloads

MANUALS

User manual

10M Atomic Clock | Data Sheets

10MX

10MX

The hottest member of the Antelope Audio Isochrone family

LiveClock

LiveClock

Portable 192 kHz Master Clock

OCX HD

OCX HD

768 kHz HD Master Clock

Isochrone Trinity

Isochrone Trinity

A must-have 384 kHz HD Master Clock
