Overview

ATOMIC ACCURACY

Antelope Audio’s 10M Atomic Clock will bring out the sonic details you’ve always dreamed of experiencing

To get ultimate sonic performance from your system, you need a clock with absolute accuracy and virtually zero jitter. The new Audiophile 10M Atomic Clock is a 10MHz rubidium atomic reference generator that, paired with Antelope’s renowned clocking algorithm, delivers astonishing audio quality. 100,000 times more stable than a typical crystal oscillator, the hyperfine energy levels of the non-radioactive rubidium core enable high-precision timing to 0.03 parts per billion, which equates to a loss of just one second per 1000 years!

All aspects of your sound will benefit – staging and imaging will become pin-sharp, and spectral separation and depth will gain clarity, detail, and range. The result will be the analogue immersion, dynamics, and detail that you always wished for.

The perfect pair

Features

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_compress.svg

Rubidium core

with accuracy of 0.03ppb (parts per BILLION)

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_circle_check.svg

ease of operation

Just connect it and power it on

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_target.svg

Ultra-precise Atomic oscillator

Stability of 1 second per 1,000 years

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/weather_windgust.svg

BUILT TO LAST

Extremely sturdy mechanical construction

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_shuffle_button.svg

BNC Outputs

Two 10MHz BNC Outputs

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_repeat_button.svg

Perfect match

It goes hand-in-hand with the Zodiac Platinum DSD DAC

DESCRIPTION

THE CHOICE OF PROS

10M is the preferred clock for trendsetting producers, audio engineers, artists and movie post-production studios

The Audiophile 10M Atomic Clock (a.k.a. Baby 10M) is an upgraded and enhanced version of the Antelope’s Isochrone 10M, which has become a new industry standard for ensuring audio quality and accurate sound reproduction. Leading producers, sound engineers, artists, and movie post production studios worldwide are using the 10M Atomic Clock together with our high-end Trinity master clock. They usually describe it as “mind-blowing”, an “instantaneous improvement”, “superior”, and fundamental in bringing “more detail, ambiance, and naturalness” to the digital signal. The results are described as “wider and more solid” with “crisp transients and a 3D depth of field.”
This experience is no longer exclusive to music and film studios. Exactly the same clocking technology and atomic precision is now available to the home audio listener.

A PERFECT PARTNER

10M is Zodiac Platinum’s best friend

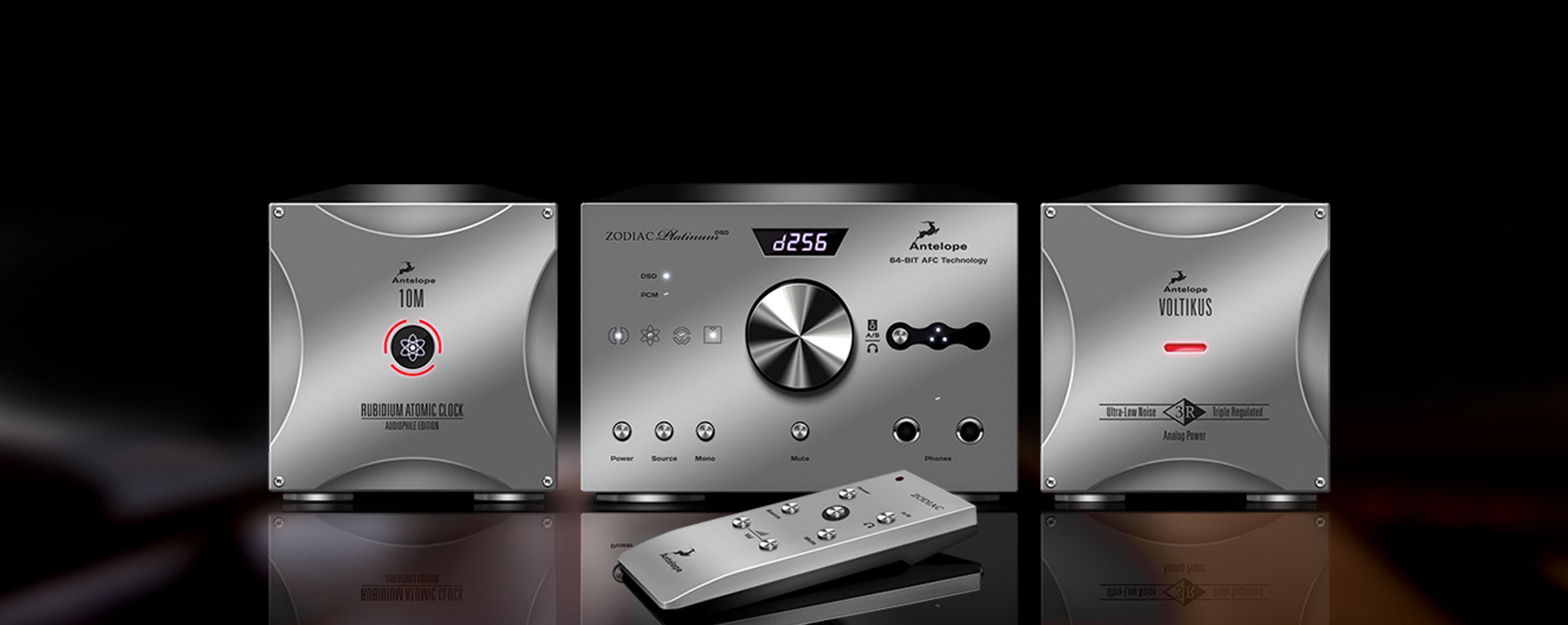

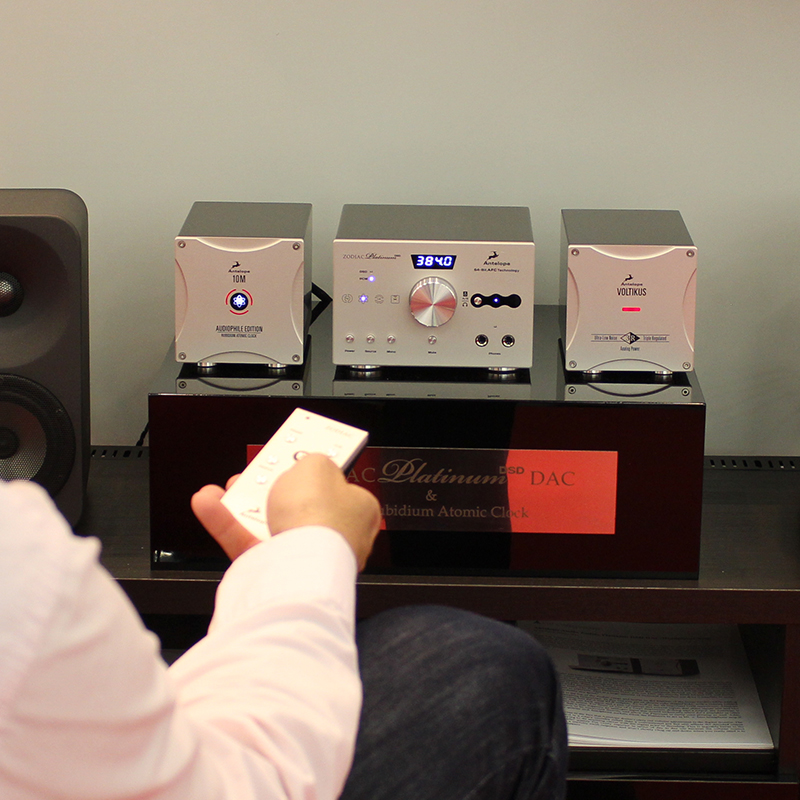

The Audiophile 10M is especially designed to match the aesthetics of the Zodiac Platinum DSD DAC, which also has a direct 10MHz input. The pair are visually and technically perfect for each other, and together they transfer high-end studio technology directly to the home environment. With the Zodiac Platinum / 10M combo, for the first time ever, the home listener has the chance to experience the music with the same technology it was created with, sounding exactly the way it was meant to by the sound engineers that worked on it.

A BREEZE TO USE

Use 10M with any device with a 10 MHz (BNC) input and clock two units simultaneously

Bring the original, unspoilt source to your speakers simply by connecting this ultra-accurate 10MHz clock and turning it on. The Zodiac Platinum DSD DAC will automatically switch from its crystal oscillator to the atomic clock reference, still using the 4th generation of Acoustically Focused Clocking algorithm implemented in the DAC, the same as it is in the top level Trinity Master Clock.

You can use your Audiophile 10M Atomic Clock with any device that supports 10MHz (BNC) input clock and clock two devices simultaneously.

ROCK SOLID & GREEN

The 10M Atomic Clock was designed to endure and stay eco-friendly

The Audiophile 10M Atomic Clock is made from only high-grade materials, including a custom-machined aluminum front panel. This sturdy mechanical construction makes it highly resistant to mechanical shocks. The much smaller chassis and heat sink of the Baby 10M, compared to that of its elder brother, is due to the implementation of energy saving technology, allowing three times less power consumption and thus a greatly reduced heat level.

10M - 10 MHz Rubidium Atomic Reference Generator 10M - 10 MHz Rubidium Atomic Reference Generator

Specifications

    • Atomic Reference Type

Rubidium Ultra-Stable Resonance- Controlled
Master Oscillator

    • Frequency

10 MHz

    • Frequency Accurancy

0.03 PPB (parts per BILLION)

    • Long-Term Stability

1 sec/1000 years

    • Connections

Umbilical to connect with DAC
Grounded AC

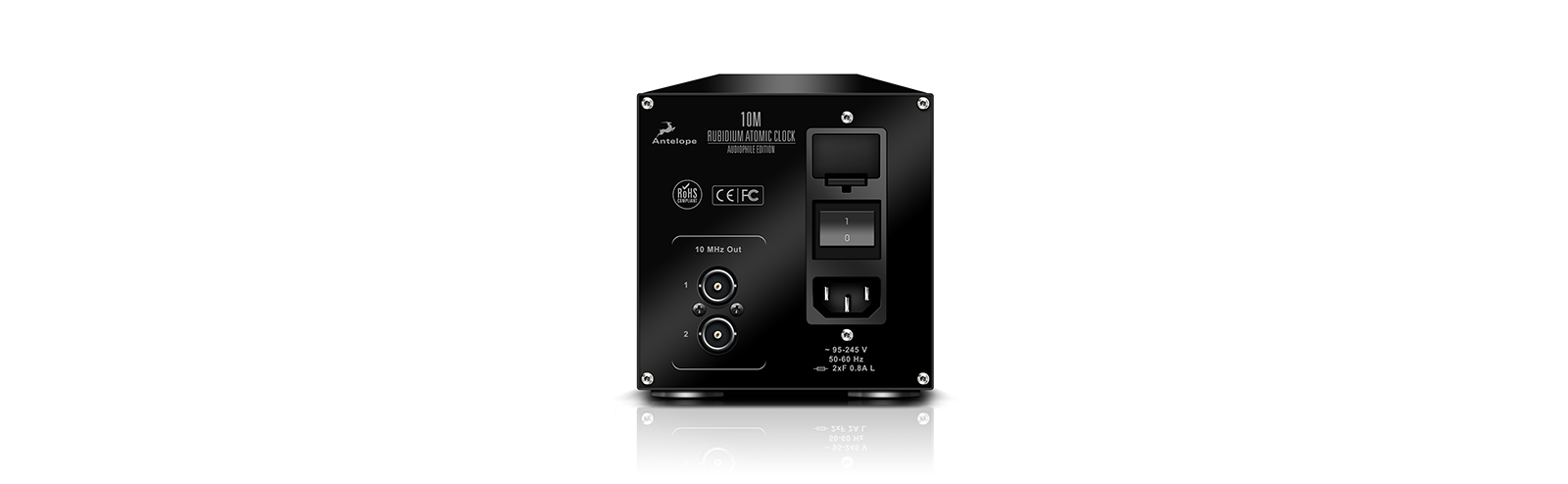

    • Atomic Clock Output

2x 10MHz BNC Outputs

    • Dimensions

Width: 166 mm/6.5”
Height: 112 mm/4.4”
Depth: 193 mm/7.6””

    • Weight

1.4 kg/ 3.1 lb

    • In the box

Audiophile 10M Atomic Clock
Power cord
Custom BNC cable
Owner’s manual
Warranty card

Downloads

MANUALS

User manual

PDF | Quick Start Guide – video

System requirements

Windows

OS: Windows 7/8/8.1/10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth: 80%-90%
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)

MAC

OS X: 10.8.5/10.9/10.10/10.11 (Yosemite Recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.
