Overview

The most powerful audio interface on the market

Offering the biggest number of I/O’s available on the market, Goliath is the result of Antelope’s 20+ years of experience in digital audio, innovative clocking technologies and analog circuit design.

Connectable via blazing-fast Thunderbolt™, USB & 2 x MADI, Goliath houses a total of 36 analog ins and 32 analog outs, providing digital clarity and analog realism like no other audio interface out there.

Antelope’s most powerful audio interface comes with an array of hardware-based audio effects, among which vintage guitar amps & cabs, AuraVerb reverb, legendary EQ and compressor emulations, plus our world-renowned Acoustically Focused Clocking technology.

Features

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_microphone.svg

16 MIC PRES

16 Class-A Mic preamps. Hi-Z, Mic & Line ins

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_shuffle_button.svg

PRISTINE AD/DA

24-bit, 192 kHz audio and Antelope Audio’s signature pristine conversion

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_bolt.svg

ZERO LATENCY

64 channels I/O simultaneous streaming, multiple mixers and effects processing

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_target.svg

64-BIT ACOUSTICALLY FOCUSED CLOCKING

4th Generation Antelope Audio jitter management technology

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/software_layers2.svg

PRO GUITAR EFFECTS

Hardware-based effects for next level guitar amp modeling

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_mixer.svg

CONVENIENT CONTROL

Intuitive desktop and mobile apps and front panel touch screen

What makes the GOLIATH so powerful?

DESCRIPTION

THE SOUND YOU HAVE ALWAYS DREAMED OF

Flawless clocking and unique analog circuitry brings pro sound to a new level.

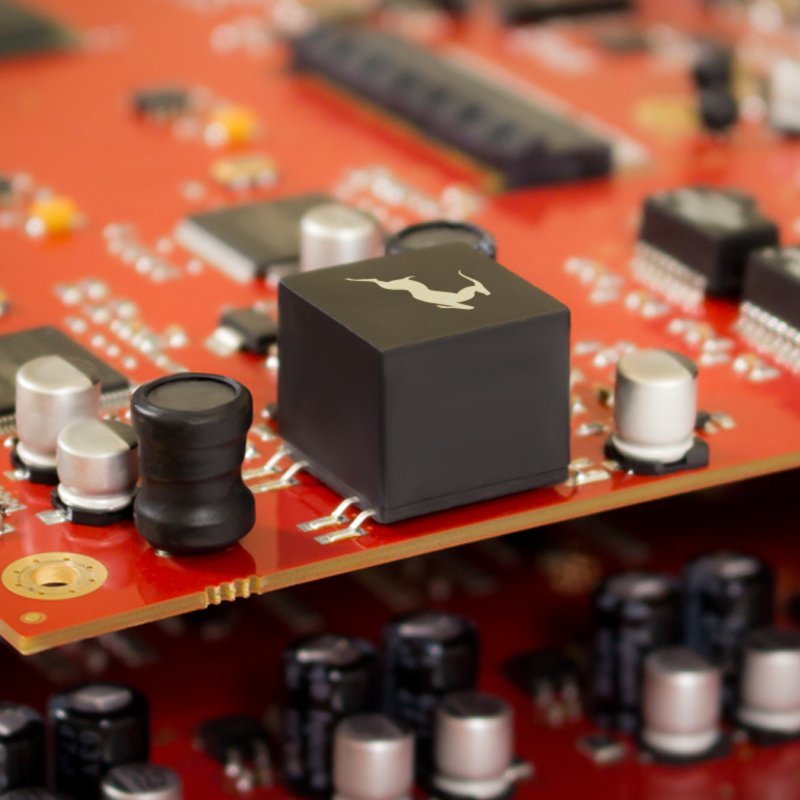

At Antelope Audio we love to say that best clock = best sound.
So, no surprise that our 4th generation of Acoustically Focused Clocking jitter management algorithms (AFC) is in charge of Goliath’s flawless clocking. The audio interface features the oven-controlled crystal oscillator you know from Antelope’s signature crystal-based master clocks.
For optimum detail and sound stage, Goliath can be additionally synced to the extremely accurate Rubidium Atomic Clock – 10MX, and it can also be used as a master clock for two other devices via Word Clock Outs on BNC.

REALISTIC VINTAGE FX

Process multiple zero latency mixes and get crazy creative with Goliath’s custom hardware-based effects.

Goliath employs Antelope’s powerful FPGA-based DSP engine, a massive platform allowing you to process four zero latency mixers with custom effects.
These include the stunning AuraVerb reverb and several modern and vintage hardware EQ and compressor models.

Antelope’s new RealModel technology recreate not only the true sound of classic analog gear but its behavior and feel as well. Stacks of effects can be combined in custom FX Chains and saved as Presets.

All our guitar amp and cabs simulations were developed in a partnership with leaders in guitar software Overloud Audio Tools, so we know guitar players will just love Goliath.

64 channels via Thunderbolt™

can be routed to a vast selection of digital and Analog I/O options, including MADI, AES, ADAT, and S/PDIF.

Goliath offers 36 Analog Inputs and 32 Analog Outputs with pristine AD/DA converters. These include 4 superb Instrument DI’s, 2 transformer Reamp Outs, 2 Headphone Outs with integrated Talkback on the front, 16-Channels of Class-A Mic Preamps, 2 sets of Stereo Inserts and a pair of mastering grade Monitor Outs on the back.

The DB25 connectors feature 24 Outputs (1-8 can be level controlled for Surround Sound Mixing) and 16 additional Line Inputs, making Goliath an attractive solution for Hardware Inserts and Summing.

Even more Analog I/O Channels can be added by connecting Antelope’s Orion32 or Orion32+ via MADI for a total of 64 Channels of Analog I/O simultaneously.

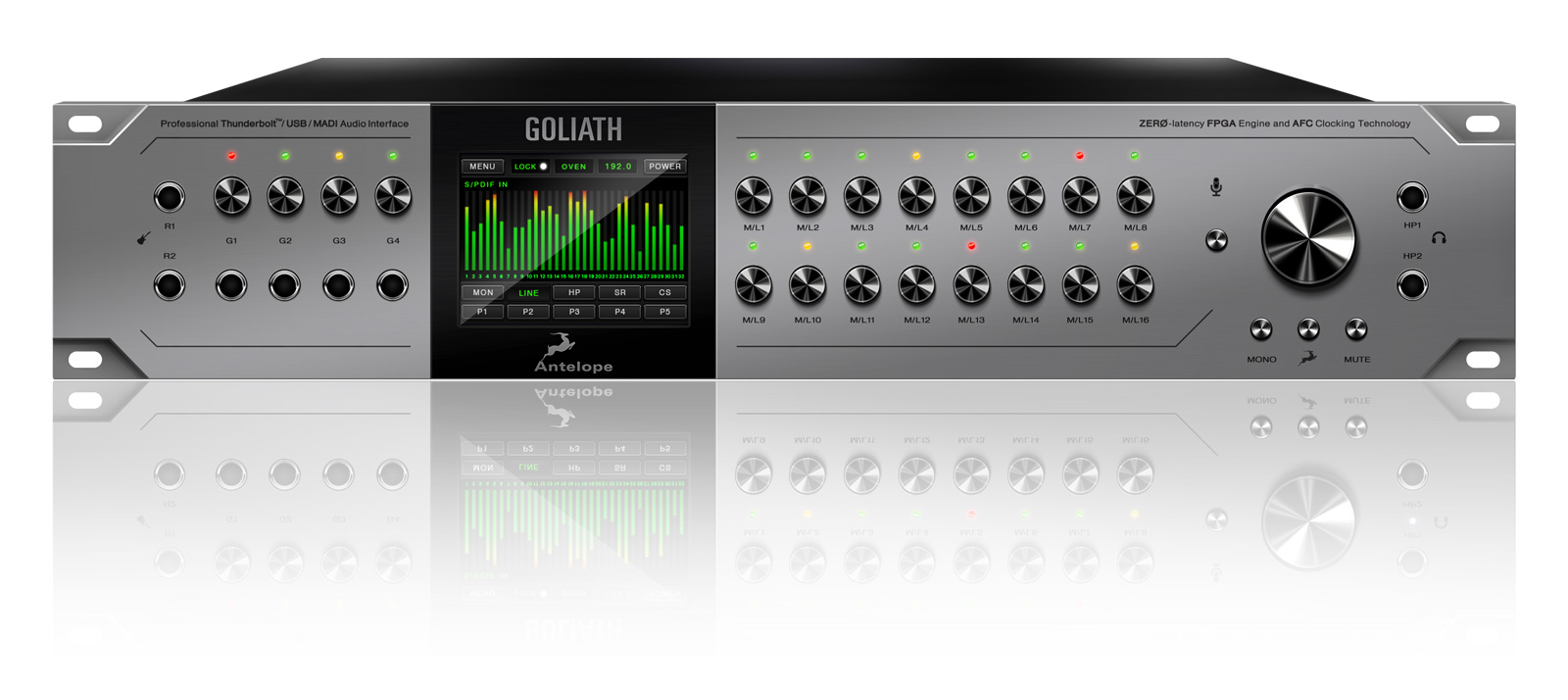

Goliath front - audio interface

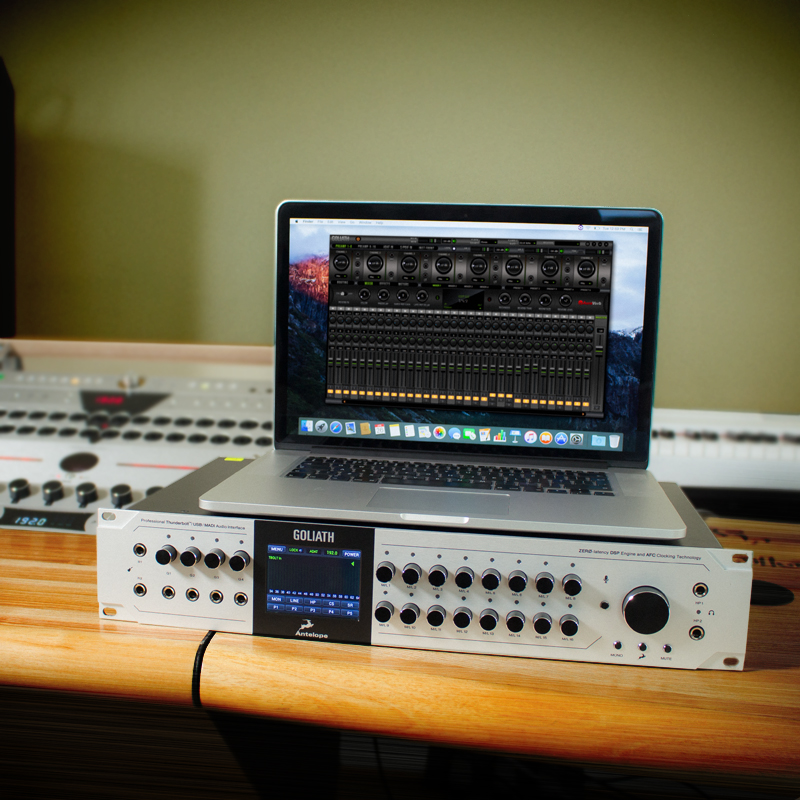

TOUCH & CONTROL

Reinvent your studio experience with Goliath’s advanced control options.

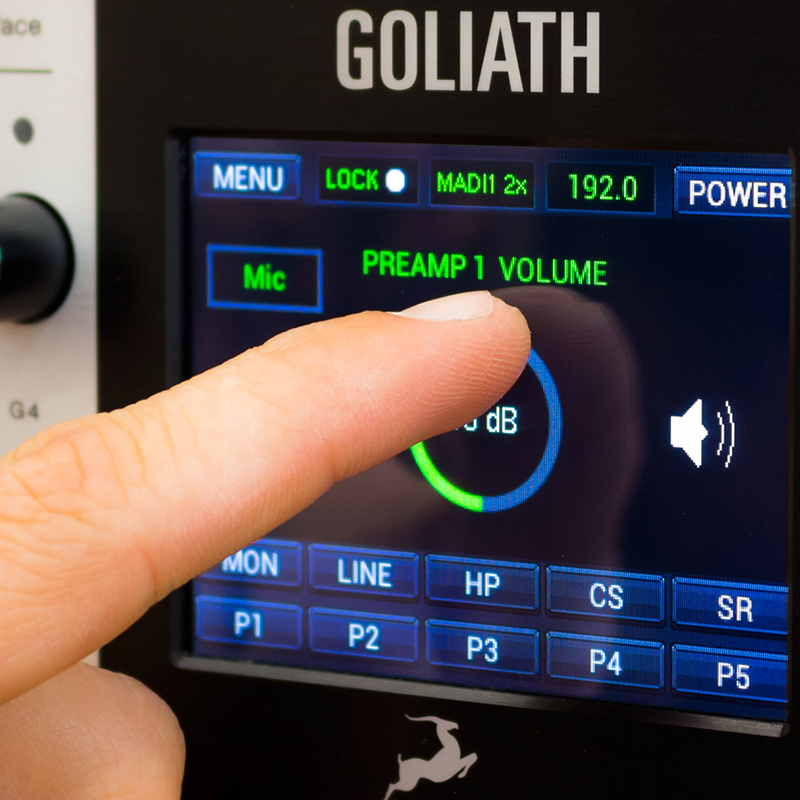

All Goliath functions are accessible via its intuitive, high-resolution touch screen. All features of the audio interface can be also accessed via the OS X and Windows compatible Software Control Panel. Just like all new breed Antelope Audio devices. the Goliath follows our networking control concept. This means you can now access all Goliath features from multiple computers in the same network.

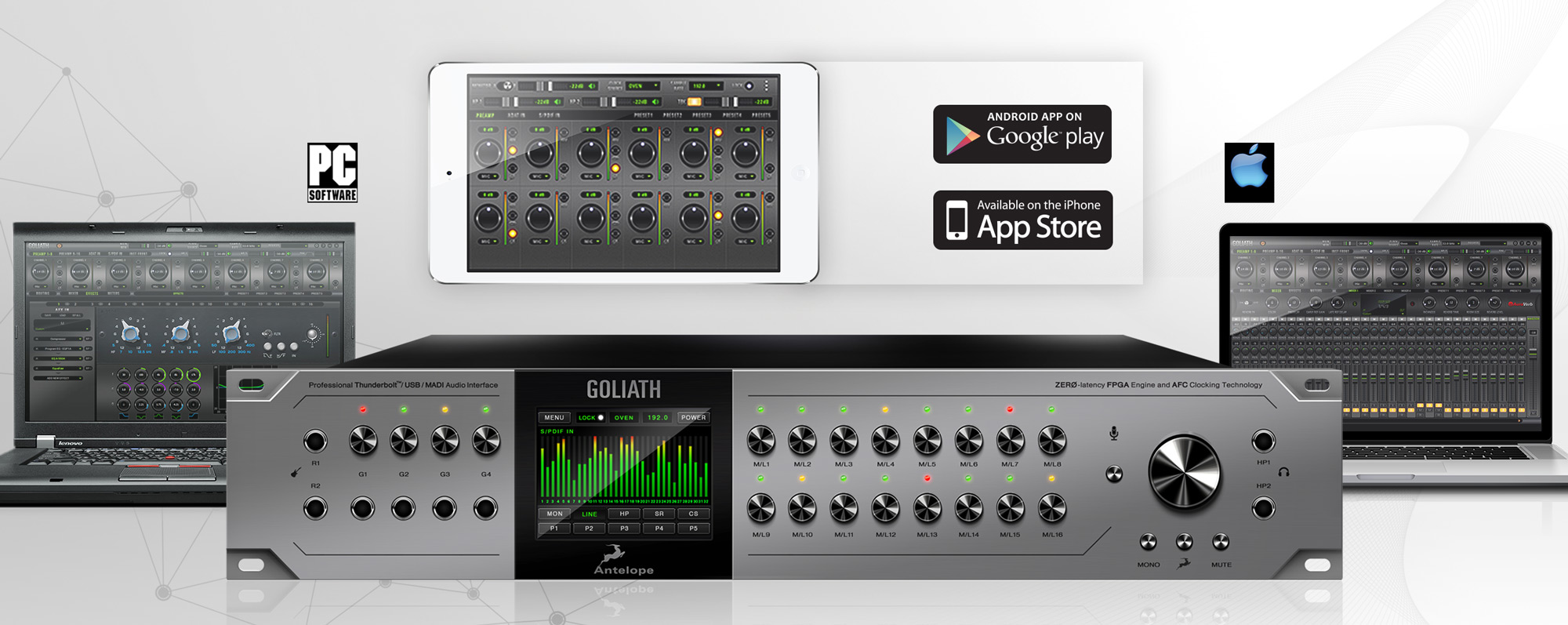

Audio Interface Goliath remotley controlled

Control your beast

Have no fear, this beast is kept well under control.



We have prepared a Remote Control App for Android and Apple users. So now you can take your recording experience further.

google-play

TUTORIALS

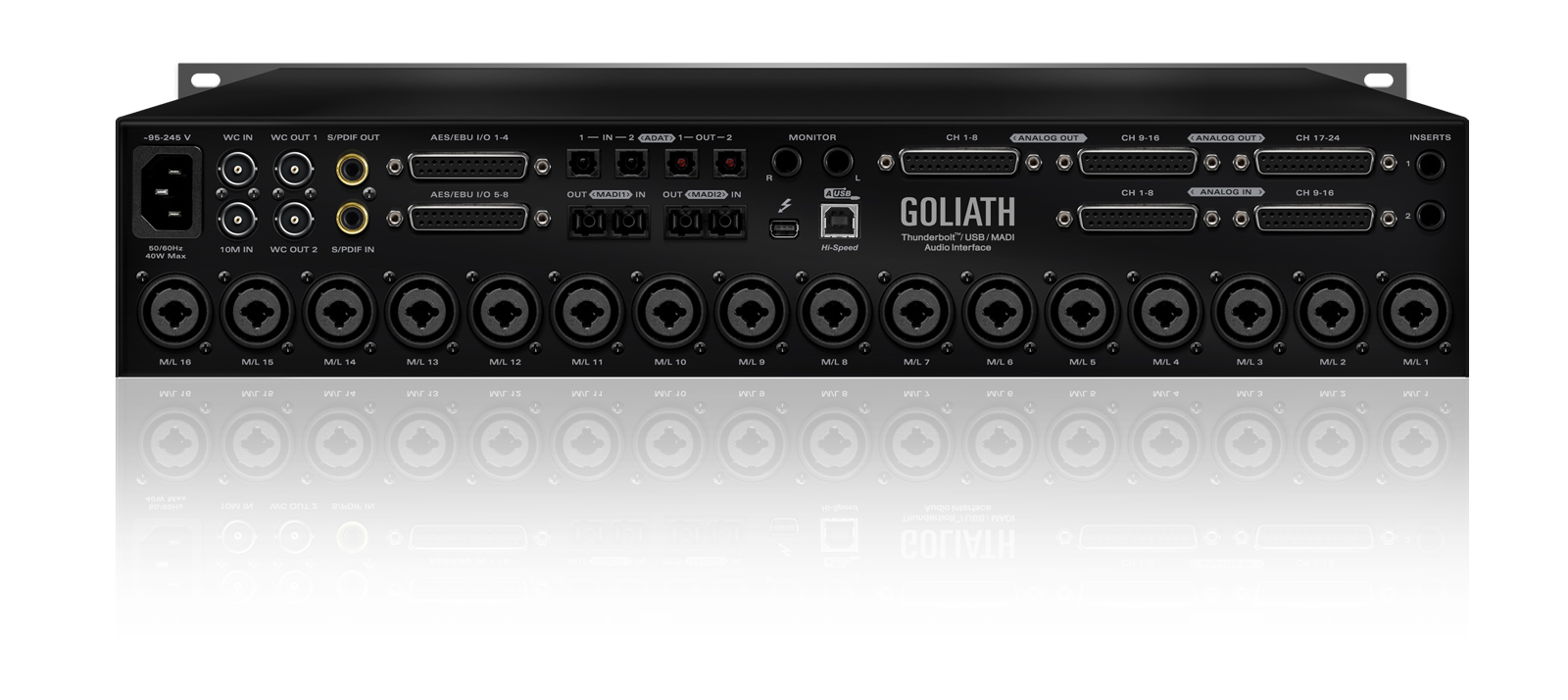

Connectivity

Specifications

    • Analog Inputs

16 x Line inputs on two D-SUB 25, +20 dBu max, 11.2 kOhms
16 x Mic / Line universal inputs on XLR combos on the rear (first 4 can be used for instruments also)
4 x Instrument (HiZ) inputs on TRS 1/4 jacks on front

    • Analog Inserts

2 x Inserts on TRS 1/4 jacks (dedicated to rear universal inputs 1, 2)

    • Digital Inputs

2 x Fiber Optic MADI (up to 64CH each)
2 x ADAT (up to 16CH)
8 x AES/EBU on D-SUB 25 (16CH)
1 x S/PDIF

    • Word Clock Input

1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

    • Atomic Clock Input

1 x 10M Input @ 75 Ohms 1Vpp on BNC

    • Analog Outputs

24 x Line outs on three D-SUB 25, +20dBu, 56 Ohms
1 x Monitor out on 2x TRS 1/4 jacks
2 x Stereo Headphone outs on TRS
2 x ReAmp outs on TRS

    • Digital Outputs

2 x Fiber Optic MADI (up to 64CH each)
2 x ADAT (up to 16CH)
8 x AES/EBU on D-SUB 25 (16CH)
1 x S/PDIF

    • Word Clock Outputs

2 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz

    • Thunderbolt

1 x Thunderbolt (64 channels I/O)

    • D/A Monitor Converter

Dynamic Range: 129 dB; THD + N: -108 dB

    • D/A Converter

Dynamic Range: 120 dB; THD + N: -107 dB

    • A/D Converter

Dynamic Range: 120 dB; THD + N: -110 dB

    • Clocking System

4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator

    • Clocking Stability

<+/-0.02 ppm, oven controlled at 64.5°C/ 148.1°F

    • Clock Aging

<1 ppm per year

    • Clock Calibration

<+/-0.001 ppm

    • Sample Rates

32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

    • Operating Temperature

0-50°C/32-122°F

    • Weight

6.8 kg/ 15 lbs approx

    • Dimensions (approx.)

Width: 483mm /19”
Height: 81mm / 3.2”
Depth: 279mm / 11”

    • Power Supply

AC Universal input ~95-245 V
Power Consumption
40 Watts Max

    • Mic Pre

Gain: 0, 10 – 65 dB
THD + N: -108 dB

    • USB I/O

1 x USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz, 32 channels I/O, Type B

Audio interfaces comparison table

 Orion32 HDGoliathZen TourOrion StudioOrion32+Zen StudioOrion32
Orion32 HDGoliathZen TourOrion StudioOrion32+Zen StudioOrion32
Analog InsertsN/A2 x Inserts on 1/4" TRS (dedicated for inputs 1, 2)N/A2 x Inserts on 1/4" TRS (dedicated for inputs 1, 2)N/A2 x Inserts on 1/4" TRS (dedicated for inputs 1, 2)N/A
Analog Inputs4 x DB 25 (32 channels total), +24 dBu max2 × DB25 (16 channels)
16 × Mic / Line on XLR combos (incl. 4 × Hi-Z)
4 × Hi-Z inputs on 1/4" TRS on front
4 × Mic / Line / Hi-Z on XLR combos
4 × Hi-Z / Line on 1/4" TRS
4 × Mic / Line / Hi-Z on XLR combos
8 × Mic / Line on XLR combos
4 x DB25 (32 channels total), +20 dBu max, 11.2 kOhms1 x DB25 (8 channels)
4 x Mic / Line / Hi-Z on XLR combos on the front
8 x Mic / Line on XLR combos on the rear
4 x DB25 (32 channels total), +20 dBu max, 11.2 kOhms
Analog Outputs4 x DB 25 (32 channels total), +24 dBu max
2 x Monitor Outs on TRS 1/4 Jacks, +24 dBu max
3 × DB25 (24 channels)
2 x Stereo Monitor outs on 1/4" TRS
2 × Stereo Headphone outs on 1/4" TRS
2 × ReAmp outs on 1/4" TRS
1 × DB25 (8 channels)
2 × Stereo Monitor outs on 1/4" TRS (4 channels, only 1 pair active at a time)
2 × Stereo Headphone outs on 1/4" TRS
2 × ReAmp outs on 1/4" TRS
2 × DB25 (16 channels)
2 × Stereo Monitor outs on 1/4" TRS (4 channels, only 1 pair active at a time)
2 × Stereo Headphone outs on 1/4" TRS
2 × ReAmp outs on 1/4" TRS
4 x DB25 (32 channels total), +20dBu, 56 Ohms
2 × Stereo Monitor outs on 1/4" TRS
1 x DB25 (8 channels)
1 x Stereo pair of Monitor outs on 1/4" TRS
2 x Stereo Headphone outs on 1/4" TRS (4 channels)
4 x DB25 (32 channels total), +20 dBu, 56 Ohms
Digital Inputs1 x Fiber Optic MADI (up to 64 channels)
2 x ADAT (up to 16 channels)
1 x S/PDIF
2 × Fiber Optic MADI (up to 64 channels each)
2 × ADAT (up to 16 channels)
1 × S/PDIF
8 × AES/EBU on DB25 (16 channels)
2 × ADAT optical (up to 16 channels)
1 × S/PDIF on RCA
2 × ADAT (up to 16 channels)
1 × S/PDIF
1 x Fiber Optic MADI (up to 64 channels)
2 x ADAT (up to 16 channels)
1 x S/PDIF
2 x ADAT (up to 16 channels)
1 x S/PDIF
1x Fiber Optic MADI (up to 64 channels)
2 x ADAT (up to 16 channels)
1x S/PDIF
Digital Outputs1 x Fiber Optic MADI (up to 64 channels)
2 x ADAT (up to 16 channels)
1 x S/PDIF
2 × Fiber Optic MADI (up to 64 channels each)
2 × ADAT (up to 16 channels)
1 × S/PDIF
8 × AES/EBU on DB25 (16 channels)
2 × ADAT optical (up to 16 channels)
1 × S/PDIF on RCA
2 × ADAT (up to 16 channels)
1 × S/PDIF
1 × Fiber Optic MADI (up to 64 channels)
2 × ADAT (up to 16 channels)
1 × S/PDIF
2 x ADAT (up to 16 channels)
1 x S/PDIF
1 × Fiber Optic MADI (up to 64 channels each)
2 × ADAT (up to 16 channels)
1 × S/PDIF
Thunderbolt™N/A1 × Thunderbolt™ (64 channels I/O)1 × Thunderbolt™ (32 channels I/O)1 × Thunderbolt™ (32 channels I/O)1 × Thunderbolt™ (64 channels I/O)N/AN/A
USBUSB 3.0 – 64 chennels I/O up to 192kHz, Type B connectorUSB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
32 channels I/O, Type B
USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
24 channels I/O, Type B
USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
24 channels I/O, Type B
USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
32 channels I/O, Type B
USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
24 channels I/O, Type B
USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
32 channels I/O, Type B
HDX Connectivity2 x mini HDX connectors for direct Pro Tools connection
32 Channels I/O each ( total of 64 channels )
N/AN/AN/AN/AN/AN/A
Word Clock Input1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz1 × Input @ 75 Ohms on BNC 32 –192kHzN/A1 × Input @ 75 Ohms on BNC 32 –192kHz1 × Input @ 75 Ohms on BNC 32 –192kHz1 × Input @ 75 Ohms on BNC 32 –192kHz1 × Input @ 75 Ohms on BNC 32 –192kHz
Word Clock Output2 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz2 × Outputs @ 75 Ohms on BNC 32 –192kHzN/A1 × Outputs @ 75 Ohms on BNC 32 –192kHz2 × Outputs @ 75 Ohms on BNC 32 –192kHz1 × Outputs @ 75 Ohms on BNC 32 –192kHz4 × Outputs @ 75 Ohms on BNC 32 –192kHz square wave signal
Atomic Clock Input1 x 10M Input @ 75 Ohms 1Vpp on BNC1 x 10MHz Input @ 75 Ohms 1Vpp on BNCN/AN/A1 × 10MHz Input @ 75 Ohms on BNCN/A1 x 10MHz Input @ 75 Ohms on BNC
D/A Monitor ConverterDynamic Range: 129 dB
THD + N: -108 dB
Dynamic Range: 129 dB;
THD + N: -108 dB
Dynamic Range: 129 dB
THD + N: -108 dB
Dynamic Range: 129 dB
THD + N: -108 dB
Dynamic Range: 129 dB
THD + N: -108 dB
Dynamic Range 118dB
THD + N -98dB
N/A
D/A ConverterDynamic Range: 120 dB
THD + N: -107 dB
Dynamic Range: 120 dB;
THD + N: -107 dB
Dynamic Range: 120 dB
THD + N: -107dB
Dynamic Range: 120 dB
THD + N: -107dB
Dynamic Range: 118 dB
THD + N: -98 dB
Dynamic Range 118dB
THD + N -98dB
Dynamic Range: 118dB
THD + N: -98 dB
A/D ConverterDynamic Range: 120 dB
THD + N: -110 dB
Dynamic Range: 120 dB;
THD + N: -110 dB
Dynamic Range: 120 dB
THD + N: -110 dB
Dynamic Range: 120 dB
THD + N: -110 dB
Dynamic Range: 118 dB
THD + N: -105 dB
Dynamic Range 118dB
THD + N -105dB
Dynamic Range 118dB
THD + N -105dB
Mic PreampN/AGain: 0, 10 – 65 dB
THD + N: -108 dB
Gain: 0 – 65 dB
THD + N: -108 dB
Gain: 0,10 – 65 dB
THD + N: -108 dB
N/AGain: 0,10 – 65dB
THD + N -108dB
N/A
Clocking system4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
Sample Rates32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Electrical SpecsAC Universal input: 95-245V
Power Consumption: 30 Watts Max.
AC Universal input: ~95-245 V
Power Consumption: 40 Watts Max
DC Universal input: 18V
Power Consumption: 25 Watts Max
DC Universal input: 18V
Power Consumption: 25 Watts Max
AC Universal input: ~95-245 V
Power Consumption: 20 Watts Max
DC Universal input: 18V
Power Consumption: 25 Watts Max
AC Universal input: 95-245V
Power Consumption: 20 Watts Max.
Physical SpecsDimensions: 483 mm/19” (W) / 44 mm/1.75” (H) / 220 mm/8.66” (D)
Weight: 3.6 kg/ 8.0 lbs approx.
Dimensions: 483 mm/19” (W) / 81 mm/3.2” (H) / 279 mm/11” (D)
Weight: 6.8 kg/ 15 lbs approx.
Dimensions: 25.5 mm/10” (W) / 5.9 mm/2.4” (H) / 16.6 mm/6.5” (D)
Weight: 1.4 kg/ 3.09 lbs
Dimensions: 483 mm/19” (W) / 44 mm/1.7” (H) / 220 mm/8.6” (D)
Weight: 3.1 kg/ 6.83 lbs
Dimensions: 483 mm/19” (W) / 44 mm/1.75” (H) / 220 mm/8.66” (D)
Weight: 3 kg/ 6.6 lbs approx.
Dimensions: 418 mm/16.8” (W) / 45 mm/1.8” (H) / 145 mm/5.8” (D)
Weight: 2 kg/4.41 lbs approx.
Dimensions: 483 mm/19” (W) / 44 mm/1.75” (H) / 220 mm/8.66” (D)
Weight: 3 kg/ 6.6 lbs approx.

System requirements

WINDOWS

OS: Windows 7/8/8.1/10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth: 80%-90%
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)

MAC

OS X: 10.9/10.10/10.11/10.12 (El Capitan 10.11.6 Recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Thunderbolt: 1x Thunderbolt/USB-C Port
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.

FEATURED REVIEWS

FEATURED REVIEWS COMING SOON.

If you would like to test the most powerful interface on the market, the Goliath, please contact us.

Downloads

MANUALS

User manual

Goliath User Manual

SOFTWARE

Launchers

Windows
Download Goliath Launcher for Windows 7 and newer (Jan 8, 2017)

MAC
Download Goliath Launcher for Mac OS X 10.9 and newer (Jan 8, 2017)

Remote Control Apps

Android
Android app remote for the Goliath

Apple
Apple app remote for the Goliath

Zen Studio+

Zen Studio+

Portable Thunderbolt™ and USB interface with 12 mic pres

Orion32 HD

Orion32 HD

64 channel HDX & USB 3.0 Audio Interface

Orion Studio

Orion Studio

Thunderbolt ™ & USB Audio Interface

Goliath

Goliath

Thunderbolt ™, USB & MADI Audio Interface
