MEET ANTELOPE AUDIO’S
PORTABLE CLOCK

Digital perfection and analog detail in the most elegant portable clock on the market

For over a decade now Antelope Audio has been setting new standards in the studio master clocks market.

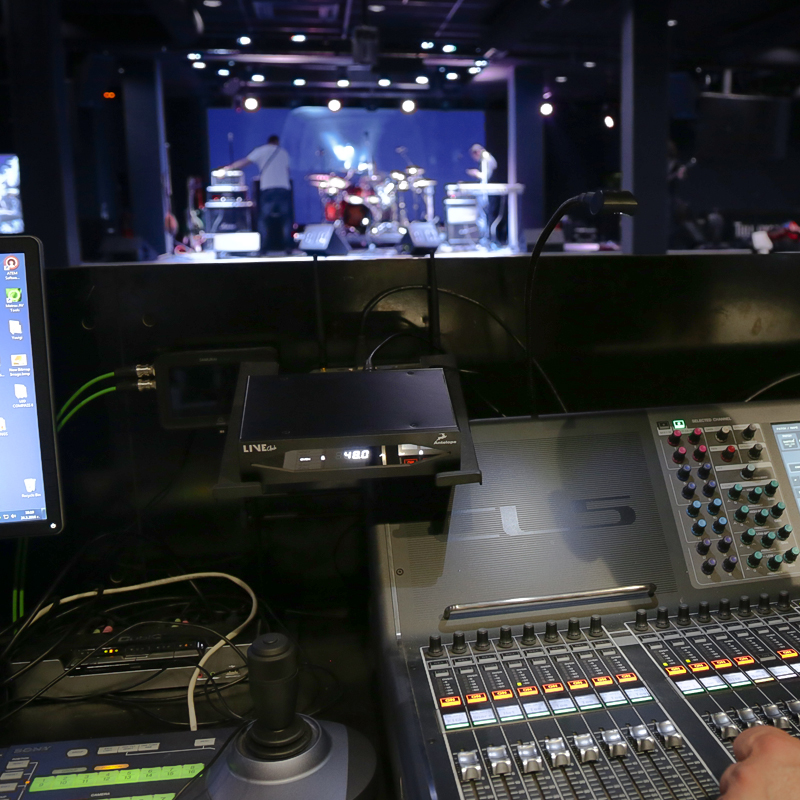

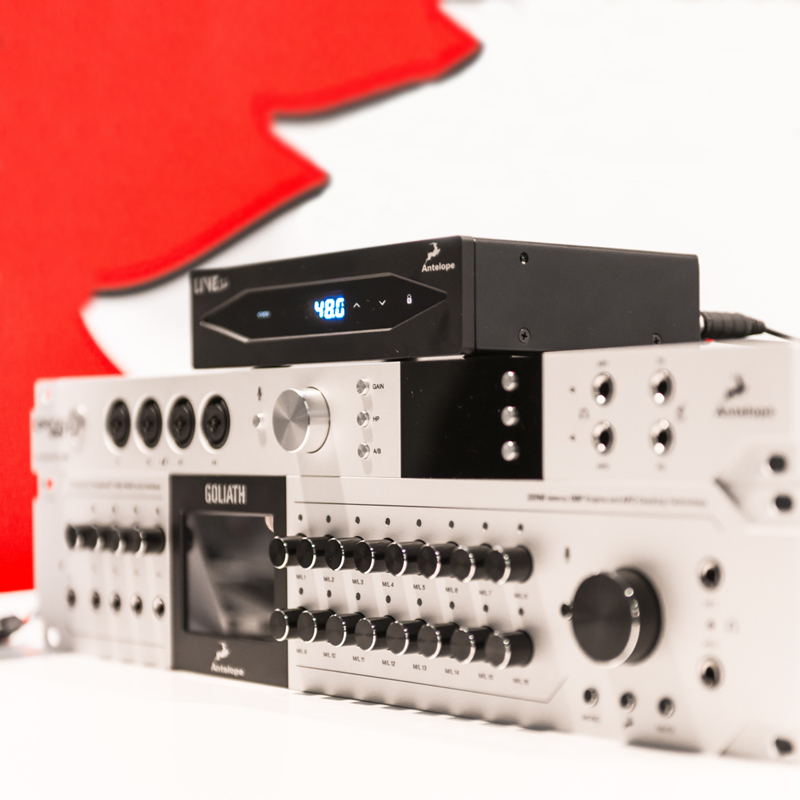

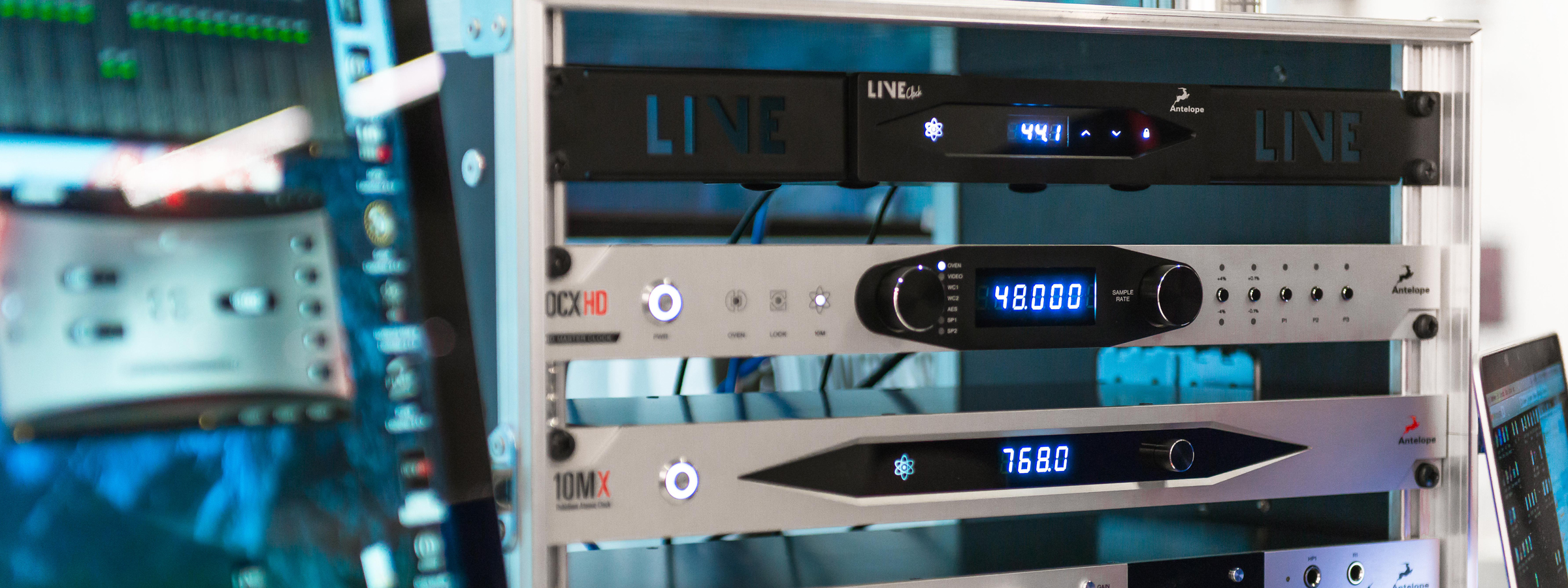

Our portable audio master clock, the LiveClock, is unique in terms of size, sound quality and price. Packed in a robust aluminum case with a lockable touch screen, it fits perfectly into a FOH console dog house. With the additional rack ears is taking up just 1U space it’s a breeze to set it in the rig.

Designed to perfectly suit any live sound set up, this portable clock carries the signature Antelope sound.

LiveClock features

LiveClock’s features

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_target.svg

64-BIT ACOUSTICALLY FOCUSED CLOCKING

includes Antelope Audio’s legendary jitter management algorithm

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_expand.svg

MULTIPLE OUTPUTS

192 kHz sample rate, 4 WC outs on BNC and 2 pairs on AES/EBU & S/PDIF

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_paperplane.svg

ELEGANT PORTABLE DESIGN

A breeze to fit in your FOH console dog house or rack

DESCRIPTION

SMALL SIZE, BIG SOUND

Best clock will always stand for best sound. Now you have both on the go.

The competitive price and elegantly small footprint make LiveClock the perfect choice for all location recordists, home studio producers or traveling artists.

The LiveClock utilizes the same clocking technology, therefore sounds as amazing as Antelope’s legendary Trinity or latest OCX HD master clock.

…guitarists are very much in Antelope Audio’s target market: the built-in DSP effects include guitar amp and cab emulations, as well as an EQ and reverb.”

MusicRadar is part of Future plc, an international media group and leading digital publisher..

192 KHZ SAMPLE RATE SUPPORT

Clock multiple devices simultaneously and sync with Antelope’s Atomic Clocks

LiveClock supports up to 192 kHz sample rate, distributed via four Word Clock outputs on BNC and two pairs of AES/EBU and S/PDIF outputs. The unit allows simultaneous clocking of multiple devices, providing the perfect synchronization of either a large live rig or a contemporary studio set up. A 10 MHz input for connection with Antelope’s 10MX or 10M offers even greater stability and sound quality.

INTUITIVE CONTROL

Not just portable, but a breeze to set up and control, LiveClock is your live rig’s new best friend

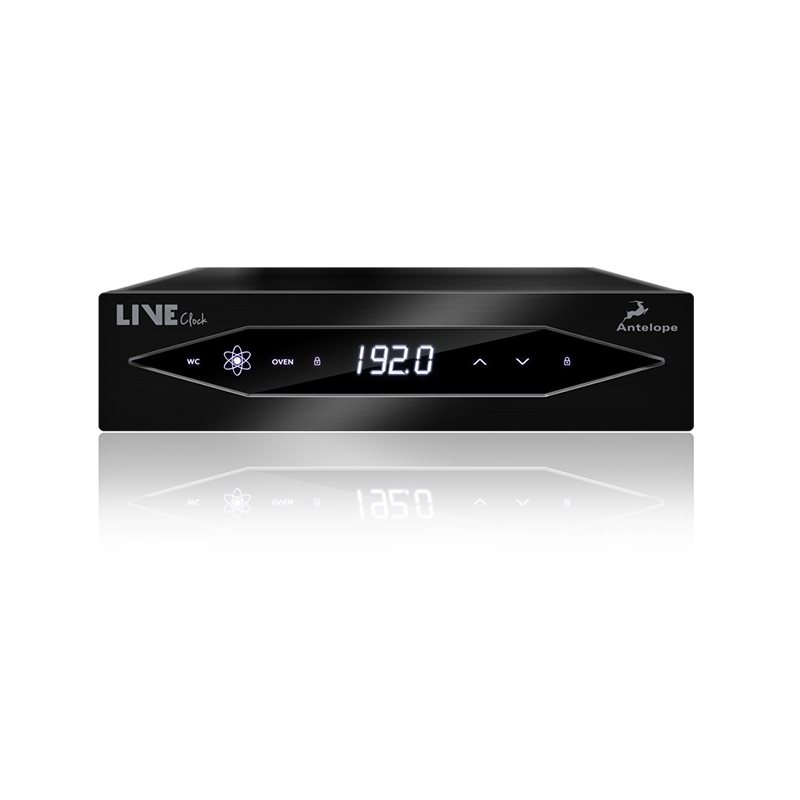

LiveClock is extremely easy to configure via the sleek front panel touch buttons. The convenient ‘Panel Lock’ function prevents sampling rate changes during a session or live show.
All aspects of the device are easily operated via the OS X and Windows compatible Software Control Panel.

TUTORIALS

Video tutorials Coming soon

Our content team is working on this as we speak.

If you have any questions regarding LiveClock, please contact our support department.

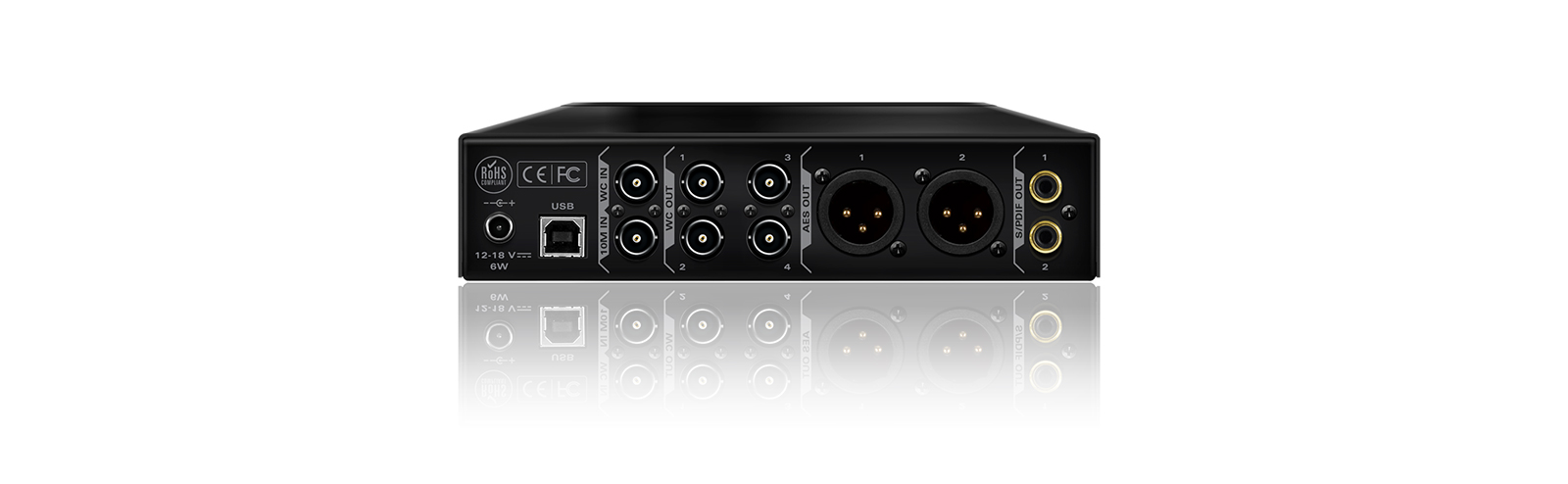

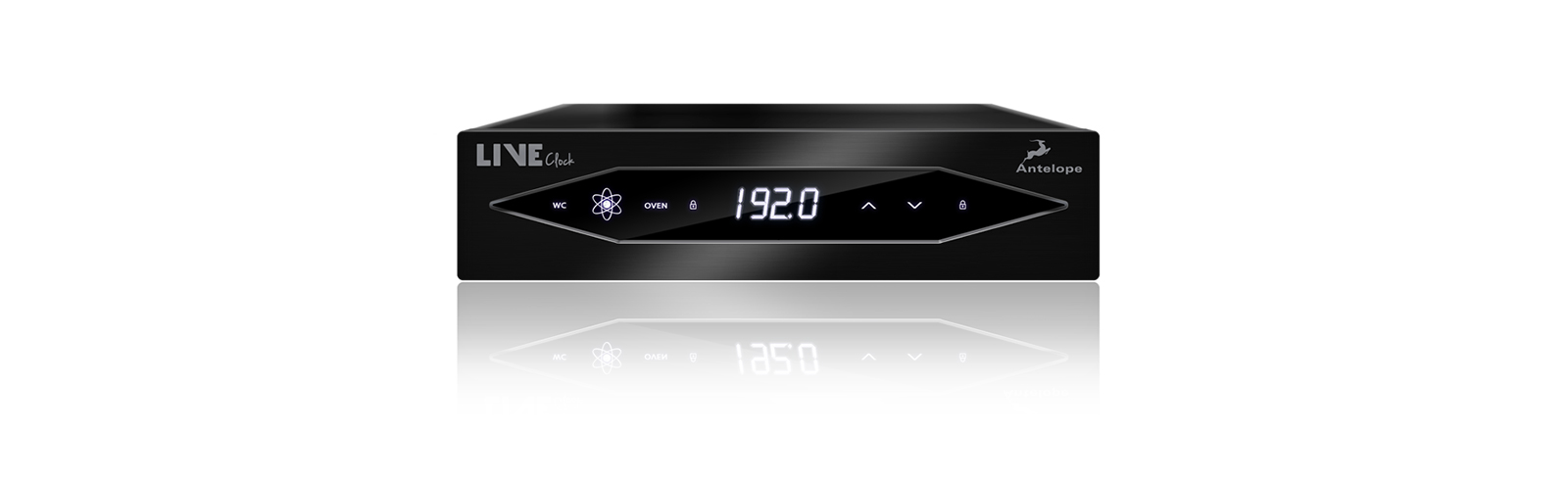

Connectivity

Specifications

    • Atomic Clock Inputs

10 MHz Sinusoidal, BNC, 75 Ohm, 1Vpp typical

    • Inputs

1x Word Clock up to 192kHz
1x Atomic Input

    • Word Clock Specs

TTL Level, 75 Ohm Output Impedance

    • Outputs

4x Word Clock Outputs up to 192 kHz
2x AES/EBU Outputs up to 192 kHz
2x S/PDIF Outputs up to 192 kHz

    • Power Supply

DC Universal Input 12 – 18V

    • Clocking System

4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator

    • Power Consumption

6W max.

    • Operating Temperature

0-50°C/ 32 – 122°F

    • Dimensions (device only)

Width: 190 mm / 7,48“
Height: 46,8 mm / 1,84“
Depth: 134,8 mm / 5,30”

    • Clocking Stability

<+/-0.02 ppm, oven controlled at at 64.5ºC/ 148.1ºF

    • Clock Aging

< 1 ppm per year

    • Clock Calibration

<+/-0.001 ppm

    • Sample Rates

32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

    • USB

USB 2.0 Hi-Speed, Type B, only for control

Master clocks comparison table



10MX

LIVECLOCK

OCXHD

TRINITY

10M

10MX

LiveClock

OCXHD

TRINITY

10M

Atomic Reference Type

Rubidium Ultra-Stable Resonance Controlled
Master Oscillator
xxxRubidium Ultra-Stable Resonance Controlled
Master Oscillator

Clocking System

x4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
x

Clock Stability

t=1s ≤3E-11
t=10s ≤1.6E-11
t=100s ≤8E-12
<+/- 0.02 ppm, oven controlled at 64.5°C/ 148.1°F<+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F< +/-0.02ppm @ 64.5°CTypical: 0.05 PPB per month (measured after 6 months of continuous operation)
First Year < 2 PPB

Clock Aging

Daily* ±2.5E-11
Monthly* ±1E-10
Yearly ±1E-9
(*After 1 day & 1 month of operation respectively)
< 1 ppm per year< 1 ppm per year< 1 ppm per yearBetter than 0.02 PPB
Typical: 0.05 PPB per month (measured after 6 months
of continuous operation)
First Year < 2 PpB

Warm-Up Time

8 – 10 minutes (depends on ambient temperature)xxx8-10 minutes (depends on ambient temperature)

Inputs

1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 – 384kHz
1x Word Clock up to 192kHz
1x Atomic Input
2x Word Clock Inputs up to 768kHz
1 x 10M Atomic Clock Input
1x Video Input accepting wide range of SD and HD video signals
2x S/PDIF Inputs up to 192kHz
1x AES/EBU Input up to 192kHz
2 selectable Word Clock on BNC 32kHz – 384kHz
1x Atomic Input
1x Universal video input on BNC.
1x AES/EBU on XLR. 32kHz – 192kHz @110Ω terminated
1x S/PDIF on RCA. 32kHz – 192kHz @75Ω terminated
x

Outputs

4 x Word Clock Outputs on BNC 44.1 – 768 kHz square wave signal
10 x BNC Sinusoidal, 10MHz, 75 Ohm, 1Vpp typical (unload)
2 x AES/EBU on XLR
2 x S/PDIF on RCA
4x Word Clock Outputs up to 192 kHz
2x AES/EBU Outputs up to 192 kHz
2x S/PDIF Outputs up to 192 kHz
10x Word Clock Outputs up to 768kHz
4x AES/EBU Outputs up to 192kHz
2x S/PDIF Outputs up to 192kHz
Wordclock – 16 BNC, 3Vpp @ 75Ω
6x HD Video BNC @75Ω
SD 1 – BNC @75Ω fixed for NTSC video standard. Black Burst
SD 2 – BNC @75Ω fixed for PAL video standard. Black Burst
SD 3 – BNC @75Ω PAL 24/NTSC 30 selectable.Composite Sync
SD 4 – BNC @75Ω PAL 48/PAL 47.95 selectable. Composite Sync
AES/EBU – 4 XLR @ 110Ω
S/PDIF – 4 RCA @ 75Ω
8 x Atomic Clock Output on BNC Sinusoidal, 70 Ohm, 1 Vpp typical (unload)

USB I/O

USB 2.0 Full-Speed, Type B, only for controlUSB 2.0 Hi-Speed, Type B, only for control1x USB Input for control2.0 full-speedx

Frequency & Accuracy

10 MHz, better than ±5E-11 @25C (±0.05 PPB)xxx10 MHz, better than 0.03 PPB

Sample Rates

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

Power Supply

AC Universal Input ~100-240V, 15 Watts max.DC Universal Input 12 – 18V, 6 Watts max.AC Universal Input ~95-245V, 20 Watts max.AC Universal Input ~90-250V, 15 Watts max.AC & DC Dual Redundant ~100-240V; 12V, 40 Watts during start up / 17 Watts after warm up

System requirements

Windows

OS: Windows 7/8/8.1/10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth (for firmware update): 80%-90%
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)

MAC

OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.
