Overview

POWER MEETS MOBILITY

Portable Thunderbolt™ and USB interface with 12 mic pres

Zen Studio+ is the successor to Antelope’s first of a kind professional portable interface Zen Studio. It’s extensive analog and digital connectivity, 12 world-class mic preamps and Antelope’s signature clocking are now accompanied by an evolving library of hardware-based vintage effects. With both Thunderbolt™ and USB connectivity, Zen Studio+ is a the most versatile high-end mobile recording system and capable of turning any location into a professional recording studio.

Features

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_microphone.svg

12 STUDIO GRADE MIC PREAMPS

12 Class-A Mic preamps, Hi-Z, Mic & Line ins with phantom power

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_keyboard_alt.svg

POWERFUL FPGA

Custom FPGA for powering multiple monitor mixers and real-time effects processing

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_expand.svg

EXTENDED CONNECTIVITY

20 Analog Inputs, 2 Monitor Outs, 8 Line Outs on DB25, ADAT, S/PDIF, 2 Re-Amp Outs, 2 HP Outs

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_target.svg

SUPREME CLOCKING

64-BIT AFC Technology built-in, Word Clock Out, Word Clock & Atomic Input

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_microphone_old.svg

INTEGRATED TALKBACK

Front Panel Controllable Talkback with IOS/Android App implementation

http://en.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_mixer.svg

SOFTWARE CONTROL

Routing, mixing, real-time effects processing via OS X & Windows compatible app

Zen Studio+ Features

DESCRIPTION

FPGA POWERED

Reinvent your studio workflow with the growing Antelope FX library

Zen Studio+ comes with a growing arsenal of vintage FPGA-based effects, including accurately modeled EQs, compressors, guitar amps and cabinets. The key to the Zen Studio+ modeling engine is its custom FPGA chip. This proprietary technology makes the interface much faster and more powerful than competing devices. You can not only create and control multiple monitor mixes in realtime, but also employ the sound of legendary studio hardware classics ,while exclusively working in-the-box.

The exquisite collections of Vintage EQ’s include authentically models of Lang PEQ1, BAE 1073, 1084, 1023, UK69 and many other classic British and German vintage units. Vintage Compressors begin with the life-like model of the FET76 and many more are soon to be available, FREE to all new and registered users of Antelope’s growing line of world class interfaces.

…it looks great, sounds fantastic, feels reliable and solid — everything a high end piece of studio gear should be”

Matt Vanacoro, one of New York’s premier musicians, he has collaborated as a keyboardist in studio and on stage with artists such as Jordan Rudess (Dream Theater), Mark Wood (Trans-Siberian Orchestra), Mark Rivera (Billy Joel Band), Aaron Carter and many more.

ARTIST FRIENDLY!

Zen Studio+ perfectly suits every pro working on-the-go

The interface features аn integrated Talkback function, allowing easy and fast communication between recordings artists, the engineer and the producer. Zen Studio+ offers dedicated Re-amp outs, making it the perfect choice not only for mobile recordists and traveling artists, but for pro guitarists as well.

Users can create up to four independent, realtime mixes, which are assignable to any output, including the two independent headphone outputs or the Monitor or Line outputs with Antelope’s proprietary routing matrix.

ZEN MEANS YOU ARE IN CONTROL

Access all Zen Studio+ features via desktop & mobile apps

Zen Studio+ is fully controllable via an intuitive desktop application for PC and Mac, offering flexible signal routing and customizable presets. IOS/Android Apps offer remote control for adjusting Mic Pre gain levels from anywhere in the studio, perfect for checking mic levels right at the source instruments.

… it reacts right away, it shows exactly what you’re doing at the moment, there’s zero latency. And it’s a beautiful thing.”

Michael “Fish” Herring. An accomplished musician, Fish toured the world with artists from the unknown to the legendary. He has also appeared on records for artists such as Mariah Carey, Tupac, Nas, LeAnn Rimes, Siedah Garrett, Celine Dion and other superstars, as his discography continues to grow.

CLOCKING LIKE WE LOVE IT

Perfect sound through flawless clocking

The unbeatable clocking accuracy of Zen Studio+ is provided by Antelope’s renowned 64-bit Acoustically Focused Clocking (AFC) jitter management technology. Transients will shine like never before, you’ll achieve a stereo image with incomparable depth and detail. And that sparse and crystal clear high-end… Yes, we’re talking sonic perfection just like in our game-changing OCX HD and Trinity master clocks.

VIDEO TUTORIALS

Coming soon…

Connectivity

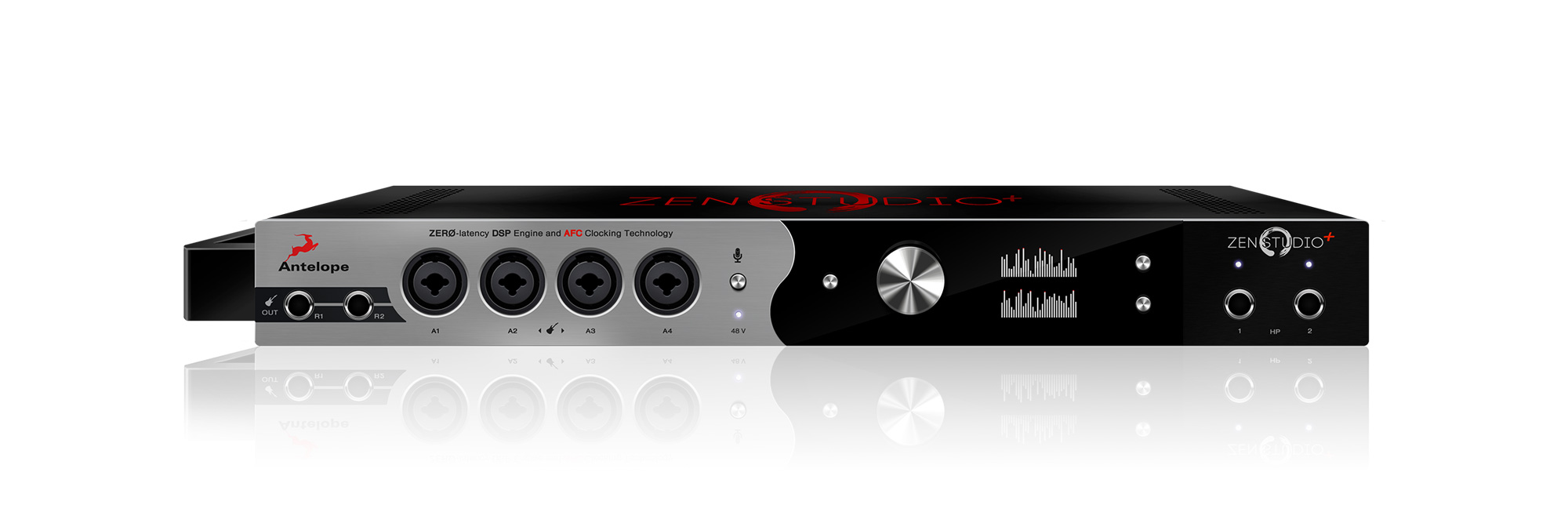

2 x Reamp Outs

These direct outputs should be used with guitar amplifiers for reamping

4 x Intrument/Mic Preamps/Line Inputs

4 Class A mic preamps with phantom power over Combo input with switchable line/ Hi-Z input

TalkBack Button

The talkback microphone can be distributed to the selected headphones and/or monitors using the software control panel or the touchscreen

Power Button

Toggles standby/operation state. Clicking and holding for two seconds allows you to enter sub-menu of the device

Rotary Control

Large stepped attenuator for headphone volume and main out volume

Display

Multi-function display that can scroll (using the 2 option buttons (6) to the right) through five different option screens

2 Option Buttons

Two option buttons allow you to scroll up and down between five different option screens

2 Headphone indicator lights

These lights are illuminated to indicate which headphone outputs are active

Headphone Outputs

Two independently assignable headphone outputs, selectable and controllable via the main volume control knob

48V Indicator light

Displays when phantom power is enabled at any of the inputs

USB High-Speed

1 USB connector Type B and operates up to 192kHz sample rate with Antelope ASIO on Windows & Mac OS X

DC Power Connection

For use with Antelope’s DC power supply only

ThunderboltTM port

Enables you to connect your Zen Studio+ to a ThunderboltTM port on a Mac computer using a ThunderboltTM cable (not included)

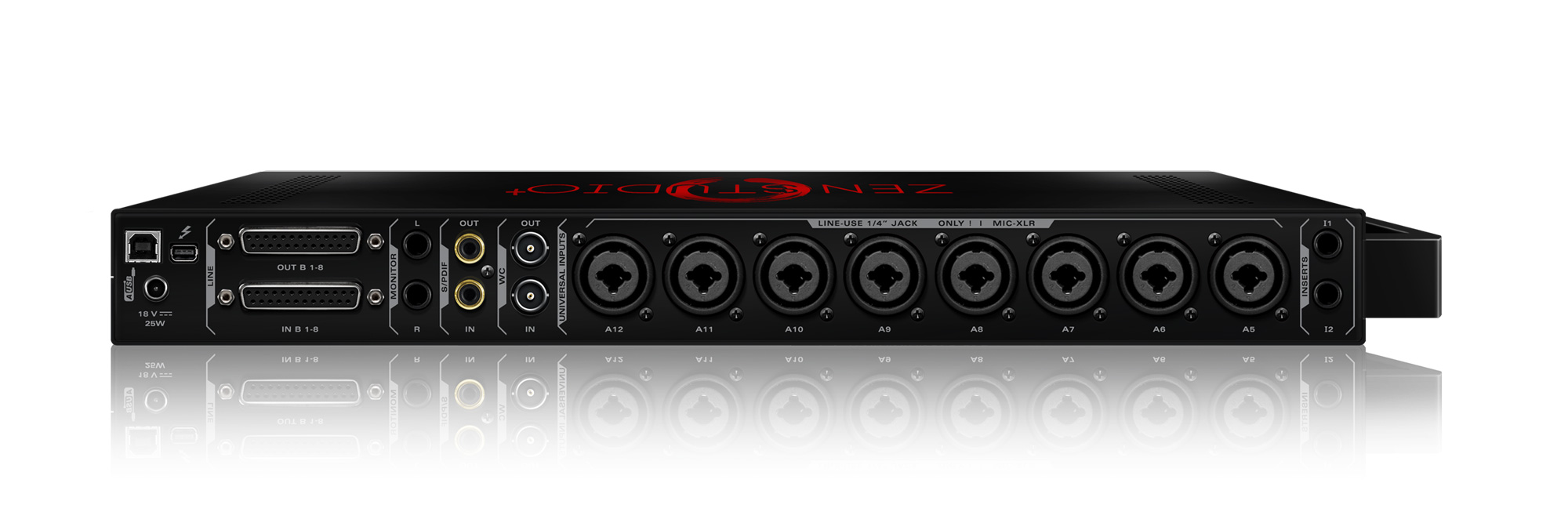

D-SUB 25pin TASCAM Analog Outputs

A connector enables you to attach breakout cables, each with 8 lines

D-SUB 25pin TASCAM Analog Inputs

A connector enables you to attach breakout cables, each with 8 lines

Main Stereo Monitor Outputs

Assignable unbalanced stereo output

S/PDIF Input/Output

75 Ω S/PDIF inputs for use with compatible equipment

Word Clock Output

1 Word Clock Output with a BNC connector

Word Clock & Atomic Clock Input

BNC connector used to receive Word Clock reference.

8 Line and Mic Preamp Inputs

8 Class A mic preamps, with phantom power over combo XLR.

AD Inserts

Two ¼” TRS insert points (L & R) for connecting analog gear such as dynamics processors or EQ’s, just before the A/D conversion

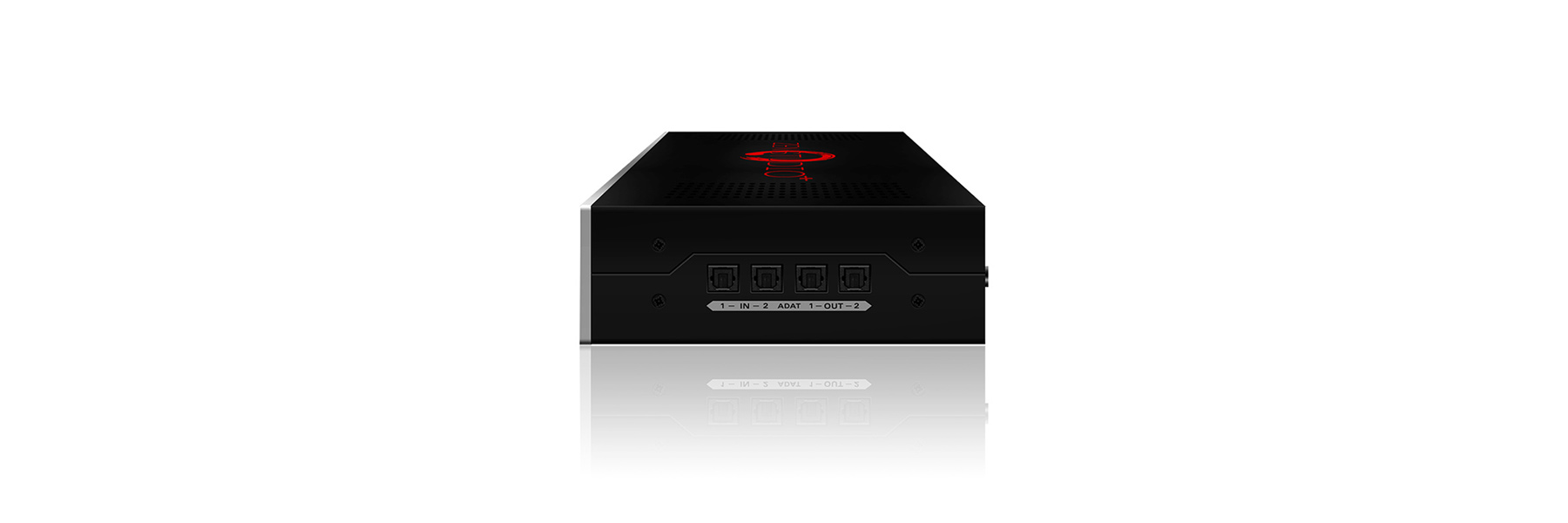

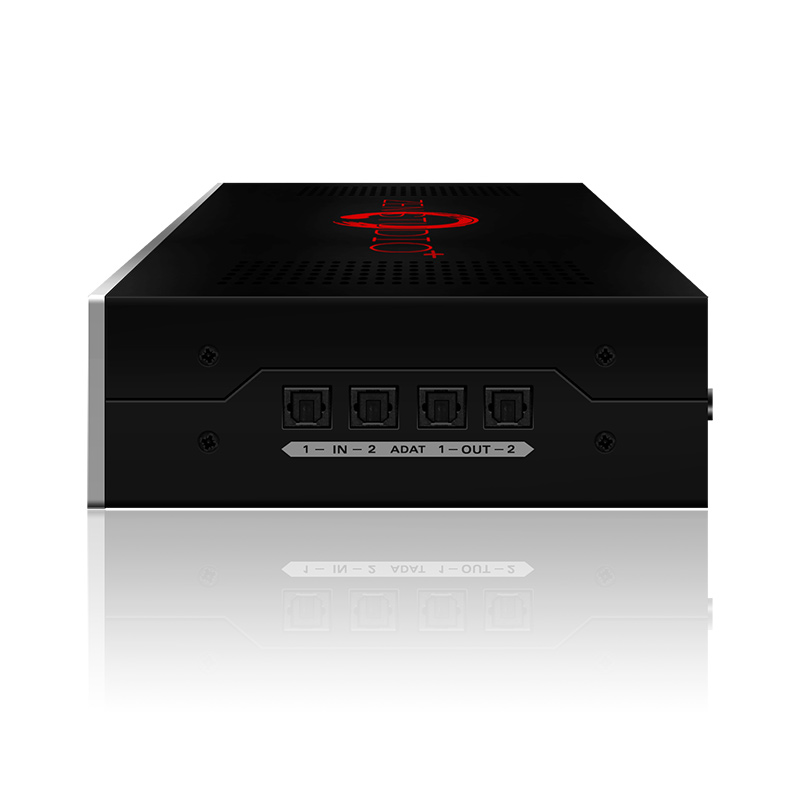

ADAT Inputs and Outputs

2 Inputs & 2 Outputs (up to 8 channels per line)

Specifications

  • ANALOG

    Analog Inputs
    1 × DB25 (8 channels)
    4 × Mic / Line / Hi-Z on XLR combos on the front
    8 × Mic / Line on XLR combos on the rear

    Analog Inserts
    2 × Inserts on 1/4″ TRS (dedicated for inputs 1, 2)

    Analog Outputs
    1 × DB25 (8 channels)
    1 × Stereo pair of Monitor outs on 1/4″” TRS
    2 × Stereo Headphone outs on 1/4″” TRS (4 channels)
    2 × ReAmp outs on 1/4” TRS

    D/A Monitor Converter
    Dynamic Range: 118dB
    THD + N: -98dB

    A/D Converter
    Dynamic Range: 118 dB
    THD + N: -105 dB

    D/A Converters
    Dynamic Range: 118 dB
    THD + N: -98 dB

    Mic Preamp
    Gain: 0,10 – 65 dB
    THD + N: -108 dB

  • DIGITAL

    Digital Inputs
    2 × ADAT (up to 16 channels)
    1 × S/PDIF

    Digital Outputs
    2 × ADAT (up to 16 channels)
    1 × S/PDIF

    USB I/O
    USB 2.0 Hi-Speed;
    Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B

    Thunderbolt™ I/O
    1 x Thunderbolt™, 32 channels I/O

  • CLOCKING

    Word Clock Input
    1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

    Word Clock Outputs
    1 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz

    Clocking System
    4th Generation Acoustically Focused Clocking
    64-bit DDS
    Oven Controlled Crystal Oscillator

    Clock Stability
    <+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF

    Clock Aging
    < 1 ppm per year

    Clock Calibration
    < +/-0.001 ppm

    Sample Rates (kHz)
    32, 44.1, 48, 88.2, 96, 176.4, 192

    • OTHER

      Operating Temperature
      0-50°C, 32-122°F

      Weight
      2kg / 4.4 lb ( approx )

      Dimensions (Approx)
      Width: 418 mm / 16.5”
      Height: 45 mm / 1.8”
      Depth: 145mm / 5.7″

      Electrical specs
      DC Universal input: 18V
      Power Consumption: 25 Watts Max

      In the box
      Zen Studio+ Portable Audio interface
      Quick Start Guide
      Warranty Card
      1 USB Cable
      1 DC Power Adapter

Audio interfaces comparison table

 Orion32 HDGoliathZen TourOrion StudioOrion32+Zen StudioOrion32
Orion32 HDGoliathZen TourOrion StudioOrion32+Zen StudioOrion32
Analog InsertsN/A2 x Inserts on 1/4" TRS (dedicated for inputs 1, 2)N/A2 x Inserts on 1/4" TRS (dedicated for inputs 1, 2)N/A2 x Inserts on 1/4" TRS (dedicated for inputs 1, 2)N/A
Analog Inputs4 x DB 25 (32 channels total), +24 dBu max2 × DB25 (16 channels)
16 × Mic / Line on XLR combos (incl. 4 × Hi-Z)
4 × Hi-Z inputs on 1/4" TRS on front
4 × Mic / Line / Hi-Z on XLR combos
4 × Hi-Z / Line on 1/4" TRS
4 × Mic / Line / Hi-Z on XLR combos
8 × Mic / Line on XLR combos
4 x DB25 (32 channels total), +20 dBu max, 11.2 kOhms1 x DB25 (8 channels)
4 x Mic / Line / Hi-Z on XLR combos on the front
8 x Mic / Line on XLR combos on the rear
4 x DB25 (32 channels total), +20 dBu max, 11.2 kOhms
Analog Outputs4 x DB 25 (32 channels total), +24 dBu max
2 x Monitor Outs on TRS 1/4 Jacks, +24 dBu max
3 × DB25 (24 channels)
2 x Stereo Monitor outs on 1/4" TRS
2 × Stereo Headphone outs on 1/4" TRS
2 × ReAmp outs on 1/4" TRS
1 × DB25 (8 channels)
2 × Stereo Monitor outs on 1/4" TRS (4 channels, only 1 pair active at a time)
2 × Stereo Headphone outs on 1/4" TRS
2 × ReAmp outs on 1/4" TRS
2 × DB25 (16 channels)
2 × Stereo Monitor outs on 1/4" TRS (4 channels, only 1 pair active at a time)
2 × Stereo Headphone outs on 1/4" TRS
2 × ReAmp outs on 1/4" TRS
4 x DB25 (32 channels total), +20dBu, 56 Ohms
2 × Stereo Monitor outs on 1/4" TRS
1 x DB25 (8 channels)
1 x Stereo pair of Monitor outs on 1/4" TRS
2 x Stereo Headphone outs on 1/4" TRS (4 channels)
4 x DB25 (32 channels total), +20 dBu, 56 Ohms
Digital Inputs1 x Fiber Optic MADI (up to 64 channels)
2 x ADAT (up to 16 channels)
1 x S/PDIF
2 × Fiber Optic MADI (up to 64 channels each)
2 × ADAT (up to 16 channels)
1 × S/PDIF
8 × AES/EBU on DB25 (16 channels)
2 × ADAT optical (up to 16 channels)
1 × S/PDIF on RCA
2 × ADAT (up to 16 channels)
1 × S/PDIF
1 x Fiber Optic MADI (up to 64 channels)
2 x ADAT (up to 16 channels)
1 x S/PDIF
2 x ADAT (up to 16 channels)
1 x S/PDIF
1x Fiber Optic MADI (up to 64 channels)
2 x ADAT (up to 16 channels)
1x S/PDIF
Digital Outputs1 x Fiber Optic MADI (up to 64 channels)
2 x ADAT (up to 16 channels)
1 x S/PDIF
2 × Fiber Optic MADI (up to 64 channels each)
2 × ADAT (up to 16 channels)
1 × S/PDIF
8 × AES/EBU on DB25 (16 channels)
2 × ADAT optical (up to 16 channels)
1 × S/PDIF on RCA
2 × ADAT (up to 16 channels)
1 × S/PDIF
1 × Fiber Optic MADI (up to 64 channels)
2 × ADAT (up to 16 channels)
1 × S/PDIF
2 x ADAT (up to 16 channels)
1 x S/PDIF
1 × Fiber Optic MADI (up to 64 channels each)
2 × ADAT (up to 16 channels)
1 × S/PDIF
Thunderbolt™N/A1 × Thunderbolt™ (64 channels I/O)1 × Thunderbolt™ (32 channels I/O)1 × Thunderbolt™ (32 channels I/O)1 × Thunderbolt™ (64 channels I/O)N/AN/A
USBUSB 3.0 – 64 chennels I/O up to 192kHz, Type B connectorUSB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
32 channels I/O, Type B
USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
24 channels I/O, Type B
USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
24 channels I/O, Type B
USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
32 channels I/O, Type B
USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
24 channels I/O, Type B
USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
32 channels I/O, Type B
HDX Connectivity2 x mini HDX connectors for direct Pro Tools connection
32 Channels I/O each ( total of 64 channels )
N/AN/AN/AN/AN/AN/A
Word Clock Input1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz1 × Input @ 75 Ohms on BNC 32 –192kHzN/A1 × Input @ 75 Ohms on BNC 32 –192kHz1 × Input @ 75 Ohms on BNC 32 –192kHz1 × Input @ 75 Ohms on BNC 32 –192kHz1 × Input @ 75 Ohms on BNC 32 –192kHz
Word Clock Output2 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz2 × Outputs @ 75 Ohms on BNC 32 –192kHzN/A1 × Outputs @ 75 Ohms on BNC 32 –192kHz2 × Outputs @ 75 Ohms on BNC 32 –192kHz1 × Outputs @ 75 Ohms on BNC 32 –192kHz4 × Outputs @ 75 Ohms on BNC 32 –192kHz square wave signal
Atomic Clock Input1 x 10M Input @ 75 Ohms 1Vpp on BNC1 x 10MHz Input @ 75 Ohms 1Vpp on BNCN/AN/A1 × 10MHz Input @ 75 Ohms on BNCN/A1 x 10MHz Input @ 75 Ohms on BNC
D/A Monitor ConverterDynamic Range: 129 dB
THD + N: -108 dB
Dynamic Range: 129 dB;
THD + N: -108 dB
Dynamic Range: 129 dB
THD + N: -108 dB
Dynamic Range: 129 dB
THD + N: -108 dB
Dynamic Range: 129 dB
THD + N: -108 dB
Dynamic Range 118dB
THD + N -98dB
N/A
D/A ConverterDynamic Range: 120 dB
THD + N: -107 dB
Dynamic Range: 120 dB;
THD + N: -107 dB
Dynamic Range: 120 dB
THD + N: -107dB
Dynamic Range: 120 dB
THD + N: -107dB
Dynamic Range: 118 dB
THD + N: -98 dB
Dynamic Range 118dB
THD + N -98dB
Dynamic Range: 118dB
THD + N: -98 dB
A/D ConverterDynamic Range: 120 dB
THD + N: -110 dB
Dynamic Range: 120 dB;
THD + N: -110 dB
Dynamic Range: 120 dB
THD + N: -110 dB
Dynamic Range: 120 dB
THD + N: -110 dB
Dynamic Range: 118 dB
THD + N: -105 dB
Dynamic Range 118dB
THD + N -105dB
Dynamic Range 118dB
THD + N -105dB
Mic PreampN/AGain: 0, 10 – 65 dB
THD + N: -108 dB
Gain: 0 – 65 dB
THD + N: -108 dB
Gain: 0,10 – 65 dB
THD + N: -108 dB
N/AGain: 0,10 – 65dB
THD + N -108dB
N/A
Clocking system4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
Sample Rates32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Electrical SpecsAC Universal input: 95-245V
Power Consumption: 30 Watts Max.
AC Universal input: ~95-245 V
Power Consumption: 40 Watts Max
DC Universal input: 18V
Power Consumption: 25 Watts Max
DC Universal input: 18V
Power Consumption: 25 Watts Max
AC Universal input: ~95-245 V
Power Consumption: 20 Watts Max
DC Universal input: 18V
Power Consumption: 25 Watts Max
AC Universal input: 95-245V
Power Consumption: 20 Watts Max.
Physical SpecsDimensions: 483 mm/19” (W) / 44 mm/1.75” (H) / 220 mm/8.66” (D)
Weight: 3.6 kg/ 8.0 lbs approx.
Dimensions: 483 mm/19” (W) / 81 mm/3.2” (H) / 279 mm/11” (D)
Weight: 6.8 kg/ 15 lbs approx.
Dimensions: 25.5 mm/10” (W) / 5.9 mm/2.4” (H) / 16.6 mm/6.5” (D)
Weight: 1.4 kg/ 3.09 lbs
Dimensions: 483 mm/19” (W) / 44 mm/1.7” (H) / 220 mm/8.6” (D)
Weight: 3.1 kg/ 6.83 lbs
Dimensions: 483 mm/19” (W) / 44 mm/1.75” (H) / 220 mm/8.66” (D)
Weight: 3 kg/ 6.6 lbs approx.
Dimensions: 418 mm/16.8” (W) / 45 mm/1.8” (H) / 145 mm/5.8” (D)
Weight: 2 kg/4.41 lbs approx.
Dimensions: 483 mm/19” (W) / 44 mm/1.75” (H) / 220 mm/8.66” (D)
Weight: 3 kg/ 6.6 lbs approx.

System requirements

WINDOWS

OS: Windows 7/8/8.1/10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth: 80%-90%
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)

MAC

OS X: 10.9/10.10/10.11/10.12 (El Capitan 10.11.6 Recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Thunderbolt: 1x Thunderbolt/USB-C Port
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.

FEATURED REVIEWS

Coming soon…

If you want to review Zen Studio+, please contact us.

Downloads

Coming soon…

Please check back in a couple of days.

Thanks.

SOFTWARE

Launchers

Windows
Download Orion Studio Launcher for Windows7 and newer (Jun 7, 2016)

MAC
Download Orion Studio Launcher for Mac OS X 10.9 and newer (Jun 7, 2016)

Remote Control Apps

Android
Android app remote for the Orion Studio

Apple
Apple app remote for the Orion Studio

Zen Studio+

Zen Studio+

Portable Thunderbolt™ and USB interface with 12 mic pres

Orion32 HD

Orion32 HD

64 channel HDX & USB 3.0 Audio Interface

Orion Studio

Orion Studio

Thunderbolt ™ & USB Audio Interface

Goliath

Goliath

Thunderbolt ™, USB & MADI Audio Interface
