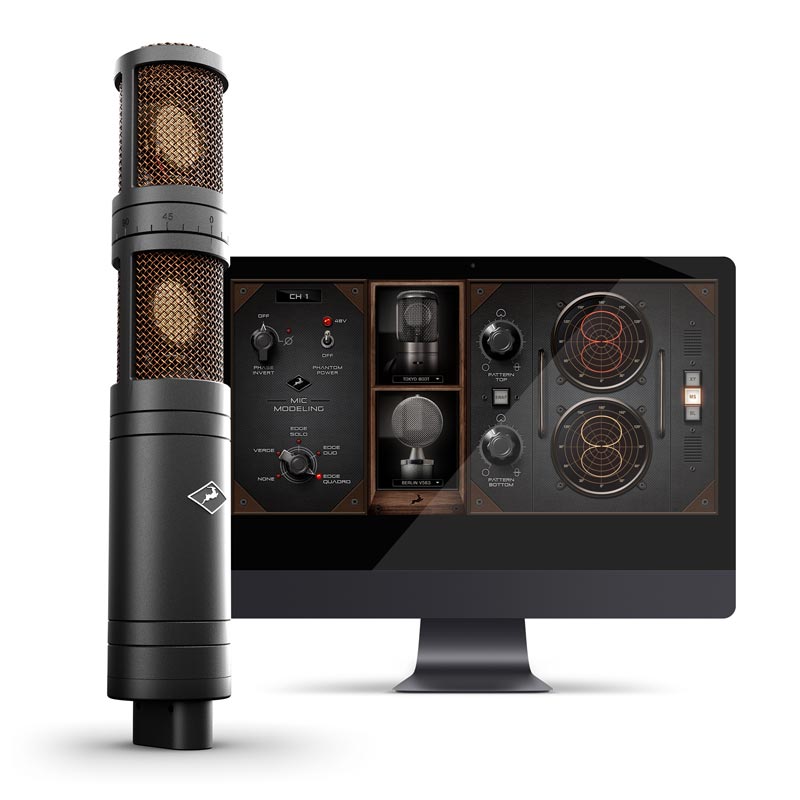

Edge Quadro small 1

• One-of-a-kind Quadrosonic modeling microphone
• Rotatable head with large double-membrane condenser capsules
• Audio signal split into 4 independent XLR output channels for optimum control and re-micing
• Switchable patterns: cardioid, figure-8 and omnidirectional
• Individual mic emulation and polar pattern selection for each head
• Infinite top head rotation for maximum flexibility
• Ultra-low reflection, fully symmetrical top and bottom heads
• Extensive library of vintage mic emulations
• Custom luxury shock mount, two special oxygen-free copper Y-cables and a custom handmade wooden case included

Emulations Included


- Berlin 47 FT
- Berlin 47 TU
- Berlin 49T
- Berlin 57
- Berlin 67
- Berlin 87
- Berlin K86
- Berlin M103
- Berlin M251

- Berlin V563
- Berlin/Halske M25
- Illinois 7B
- Minnesota 20
- Oxford 4038
- Sacramento 121R
- Tokyo 800T
- Vienna 12
- Vienna 414

Technical specs

Microphone type: Quadrosonic condenser microphone
Diaphragms: Two large condenser capsules with double-sided 6u-gold sputtered membranes. Top head is fully rotatable.
Diaphragm diameter: 34mm
Polar pattern:
Multi-pattern (cardioid, figure-8, omnidirectional, Blumlein, M/S, X/Y)
XY-stereo – set both capsules to Cardioid, offset 90°
Mid-side stereo – set the top capsule to Cardioid, and the bottom capsule to figure-8
Blumlein – Set both capsules to Figure-8, offset 90°

Self-noise: 19dB(A)
SNR: 75dB(A)
Frequency response: 20HZ ~ 20kHZ
Sensitivity: -35dB | 18mV/Pa (-1 to +3dB)
THD+N: -116dB
Output impedance: 50 Ohms @ 1kHz
Power requirements: 48V DC phantom power
Output connector: 5-pin male XLR
Dimensions: 11,9″ x 2,1″ (303mm x 53mm)
Weight: 1.697 lbs (770 grams)

In the box
Breakout cable: Two 16.4′ (5 meters) 5-pin female XLR to dual 3-pin male XLR (high grade oxygen-free copper Y-cable)
Mount: Custom luxury shock absorber type
Case: Custom handmade wooden case

System requirements

Additional Info: Internet connection required for product activation.

All plug-ins are iLok protected. An iLok is required in order to use them. iLok is not provided by Antelope Audio and must be purchased separately

VST PlugIn Technology by Steinberg Media Technologies GmbH.


The microphone emulations are also available as Native effects but iLok will be required.
All emulations are available for the following audio interfaces:

Current Devices:
Discrete 4 Synergy Core
Discrete 8 Synergy Core
Zen Tour Synergy Core
Orion Studio Synergy Core
Goliath HD | Gen 3

Legacy Devices:
Discrete 4
Discrete 8
Zen Tour
Orion Studio (only Berlin 47FT, Berlin 67, Berlin 87, Tokyo 800T emulations are available)
Orion Studio Rev. 2017
Goliath HD (Berlin Halske M25 emulations is incompatible with this device)
