A RECORDING AND PRODUCTION CENTERPIECE

Orion Studio Synergy Core doesn’t just record. It defines your production workflow. As the centerpiece of a modern production environment, it keeps every stage of your session moving from tracking to final playback. Track through Synergy Core FX in real time with near-zero latency while capturing every performance with industry-leading conversion.

Stop letting your room dictate your mixes. Integrated Room Correction delivers accurate, reliable monitoring, while fail-safe Dual Host Streaming keeps audio flowing to two host computers simultaneously, providing seamless backup recording when every take matters.

With extensive I/O, advanced DSP processing, and uncompromising flexibility, Orion Studio Synergy Core is engineered to handle the most demanding studio workflows without slowing you down.


Powered by Antelope Audio’s AFC™

At the heart of Orion Studio Synergy Core is Antelope Audio’s AFC™ — Acoustically Focused Clocking technology, built to deliver the focus, depth and precision that professional recordings demand. By keeping the conversion process ultra-stable, AFC helps capture cleaner transients, wider stereo imaging and a more three-dimensional soundstage. The result is audio that sounds open, detailed and confidently mix-ready from the very first take.


SONIC TRANSPARENCY

The 12 discrete preamps are among the signature features of the Orion Studio Synergy Core. Designed to remain transparent while authentically capturing any sound source, they provide the stunning 75 dB of gain with ultra-low noise floor. The Orion Studio mic preamps excel at capturing the true character of vocals or any acoustic instrument. They shine the brightest, especially when paired with the Antelope Audio Edge modeling condenser microphones.

sos logo

“In the Orion Studio Synergy Core, Antelope Audio have produced a very well-thought-out combination of hardware features that will undoubtedly have wide appeal…”

Read full review

recording logor

“To power up Orion Studio Synergy Core is to see and hear this ‘hot-rodded’ workhorse make light work of any recording or mixing project put in its (superior signal) path!“

Read full review

vintage king logor

“In fact, some of my clients who have upgraded to the Orion Studio have reported that it sounds better than some of today’s most popular interfaces.”

Read full review

BUILT FOR EVERY STUDIO

From home studios and writing rooms to professional recording facilities, Orion Studio Synergy Core adapts to the way you create.

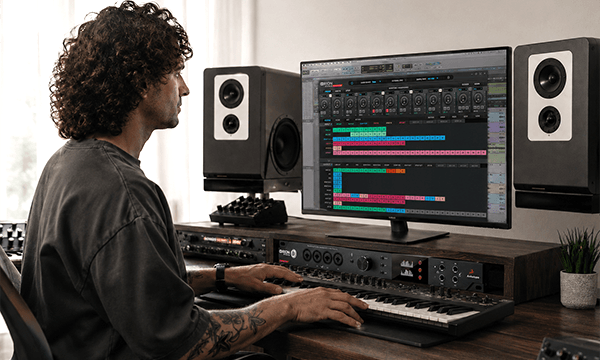

producer

THE PRODUCER'S
COMMAND CENTER

Connect your synths, drum machines and vocal mics, while recording and monitoring through real-time effects with sub-millisecond latency.

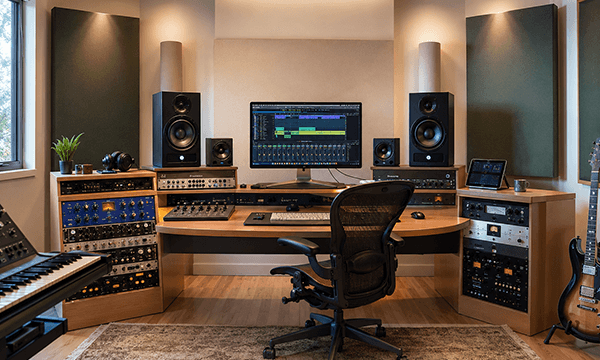

modern recording studio

THE MODERN
RECORDING STUDIO

Capture professional-quality vocals and instruments with exceptional precision and accuracy. Take advantage of Orion Studio Synergy Core’s flexible routing to adapt effortlessly to any recording session.

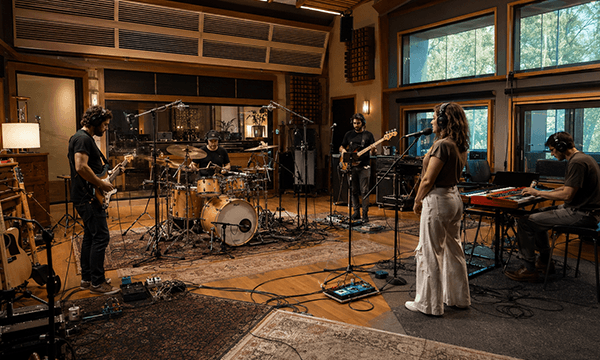

full band

THE FULL BAND
RECORDING HUB

Record drums, guitars, bass and vocals simultaneously with enough I/O for every performer.

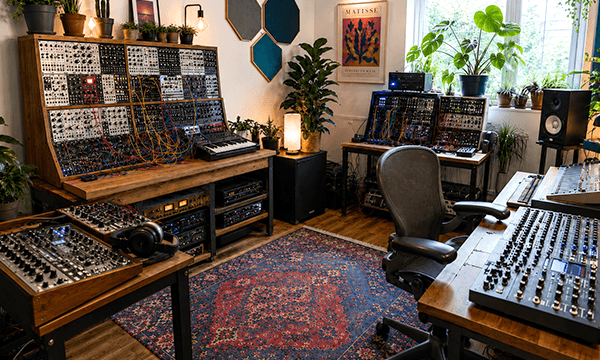

hybrid

THE HYBRID
STUDIO

Integrate your favorite hardware processors and modular synths and combine them with the processing power of the Synergy Core real-time effects into one seamless production workflow.

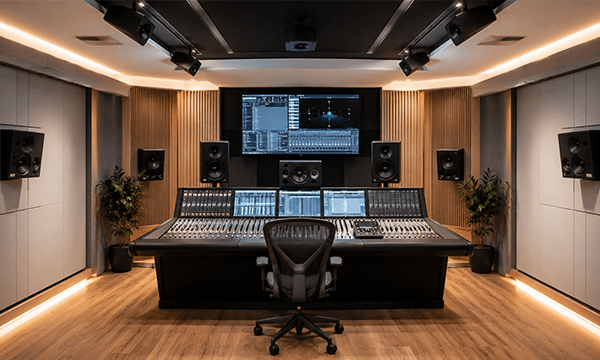

dolby

THE IMMERSIVE
STUDIO

Build Dolby Atmos® and other immersive multichannel monitoring setups with the built-in speaker calibration system. Apply per-channel delay compensation and 16-band EQ to precisely calibrate and optimize your monitoring environment.

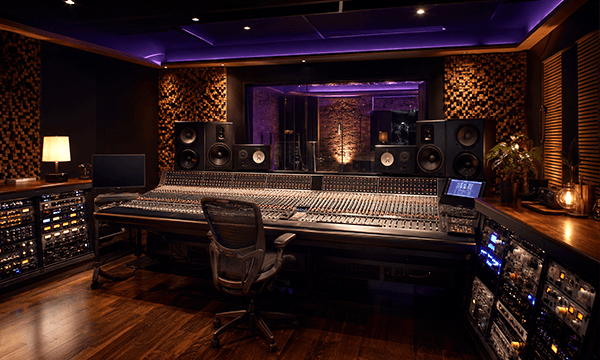

recording facility

THE PROFESSIONAL
RECORDING FACILITY

Handle demanding recording, mixing and production sessions with premium conversion, vast routing options and stability.

The Sound of a Full Studio Rack,
Build Into Your Interface

Sound Quality

Legendary analog tone, ready before you press record. Shape vocals, guitars and drums with studio-grade FX from the first take.

Workflow Benefits

Stop waiting for the mix to find the sound. Track through FX in real time and capture dry, wet, or both without slowing the session down.

Reliability & Confidence

Keep your CPU free and your monitoring uncompromised. FPGA/DSP processing gives you the speed and stability critical sessions demand.

Long-Term Value

Less dependency on software changes. More lasting value from effects built directly into your interface and ready whenever the session starts.

fpga new 2

The unique parallel computing power
of a custom FPGA, harnessed for
crafting analog-modeled effects.

dsp new 2

The powerful acceleration of ARM
processors, utilized to expand the
scope of the entire effects collection.

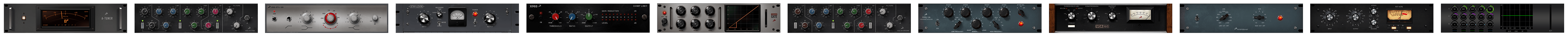

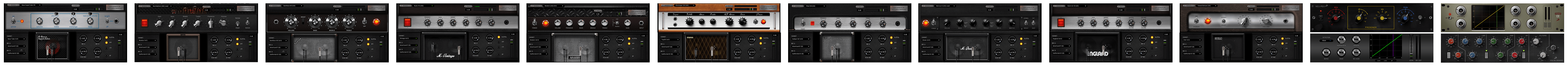

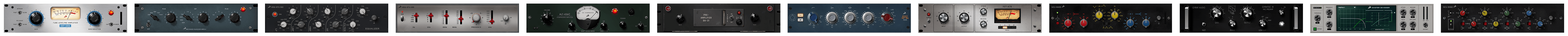

Studio Legends & Modern Originals

Explore 50+ Legendary Audio Effects

Orion Studio grants you access to a massive library of audio effects, modelled after iconic, rare, and sought-after studio hardware. Crafted with meticulous precision and care, the effects are powered by our proprietary Synergy Core platform, which provides not only the authentic recreation of the real hardware but also offers massive processing power handled by the interface itself for a practically zero-latency performance.

Introducing
Dual Host Streaming

Dual Host Streaming brings built-in redundancy to Orion Studio, adding a backup connection for critical recording sessions. Connect both USB and Thunderbolt, and audio will stream through both ports simultaneously. If one connection drops, recording continues through the other, helping protect valuable performances from interruption. The feature also supports two computers at once, making collaboration, streaming, and complex production setups more flexible. Greater reliability means fewer risks when every take matters.

Dual Host image

Protect the Take. Keep the Session Moving.

shield

Built for Reliability

Never miss a critical recording. Dual Host Streaming provides redundant audio paths to safeguard your recordings.

2systems

Create Together

One interface. Two creators. Endless possibilities. Connect two systems simultaneously for seamless collaboration and shared production.

live

Go Live Without Limits

Built for modern creators. Stream audio across multiple platforms for flexible broadcasting and content creation.

LOVED BY TOP ENGINEERS

U 0000 OSSC Drew Bang

Drew Bang

Recording Engineer and Music Producer / U2, Royal Blood, Slaves, Don Broco

U 0004 OSSC Danni Spragg

Dani Spragg

Recording Engineer / MPG 2019 Award Winner

U 0003 OSSC Ricky Damian

Ricky Damian

Producer and Engineer / Mark Ronson, Sampha, Jorja Smith

U 0002 OSSC Jason OBryan

Jason O’Bryan

Producer, Remixer and Educator / Moby, Korn, Limp Bizkit, Busta Rhymes

U 0001 OSSC David Loyd

David Loy

Front of house engineer for Kane Brown

Room crc image

Room Correction
for More Accurate Monitoring.

Room Correction has arrived as a powerful new feature for Orion Studio Synergy Core, further solidifying it as the centrepiece of the modern studio by providing yet another advanced solution for audio professionals. Using the dedicated Antelope Room Correction system, you can measure your speakers and room acoustics, then generate corrective EQ curves tailored specifically to your listening environment – all within the Orion Studio Synergy Core Control Panel. This powerful technology operates with near-zero latency, adds no additional CPU load, and eliminates the need for third-party software.

Hear Your Mix, Not Your Room

1

MEASURE

Measure your speakers and room using the Antelope Room Correction and a calibrated measurement microphone.

2

GENERATE

The Antelope Room Correction analyzes the data and creates correction curves tailored to your room and monitoring system.

3

APPLY

Load and apply the correction directly inside the Orion Studio Control Panel in real time.

4

MONITOR

Enjoy more accurate, balanced monitoring with near-zero latency and no additional CPU load.

REDEFINE YOUR WORKFLOW


VIRTUAL
PATCH-BAY


SIMULTANEOUS USE
OF ALL DIGITAL PORTS


ONBOARD
LOW LATENCY MIXERS


LOW LATENCY DIRECT MONITORING


STANDALONE
OPERATION


CUSTOMIZABLE
PRESETS

Orion Studio picto image

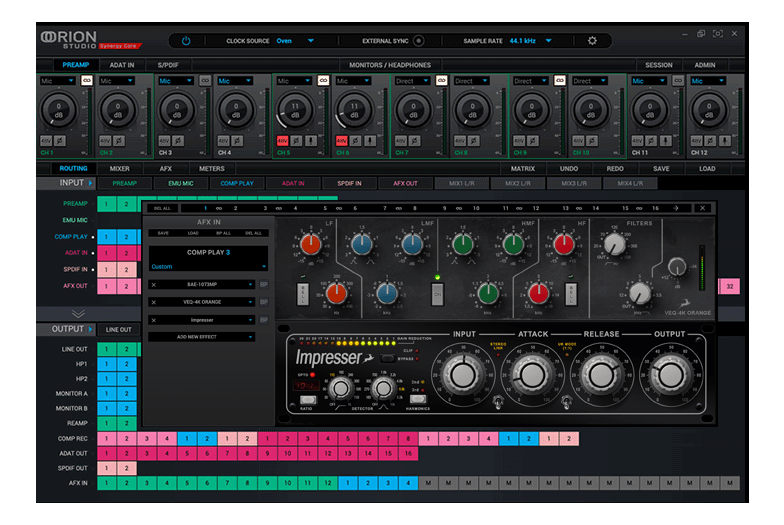

Orion Studio SC Cotrol panel NEW 02
Orion Studio SC Cotrol panel NEW 01
Orion Studio SC Cotrol panel NEW 03

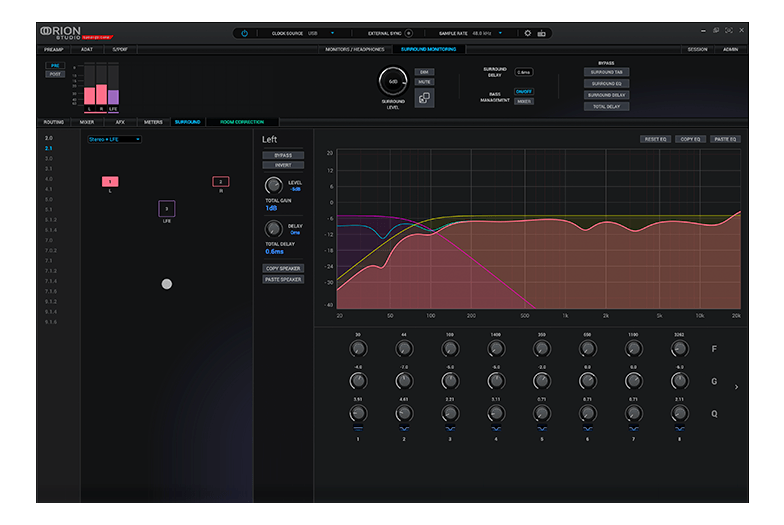

Orion Studio SC Cotrol panel NEW 04

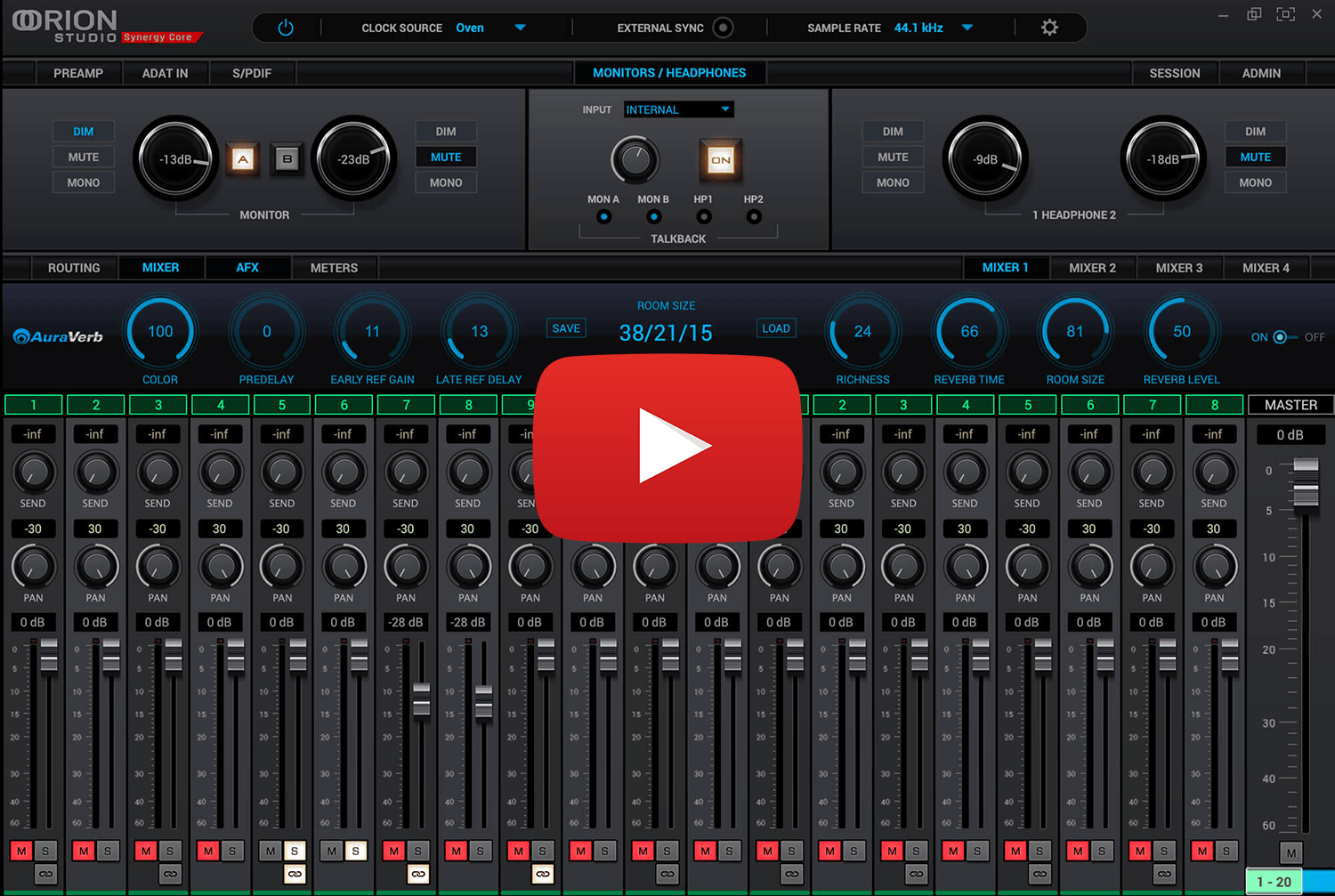

INTUITIVE CONTROL

The Orion Studio Synergy Core control panel is designed with efficiency and flexibility in mind. All features of the interface are accessible via an easy-to-navigate layout, which allows for further user customization. Experiment with drag-and-drop routing, simultaneous use of all digital ports, and direct low-latency monitoring with onboard effects to reinvent your workflow and bring your creativity to the next level.

Take Control of Your Session

See how to move from setup to recording faster with intuitive routing, monitoring and effects control inside Orion Studio.

OSSC control panel 2020 1Play Video

MAXIMUM ANALOG POTENTIAL


SYNTHS’ BEST FRIEND

Control your CV-compatible synths and outboard gear with the Orion Studio DC-Coupled inputs and outputs.
Learn more here.


Direct line inputs

The Direct-In feature of the Orion Studio analog inputs allows you to bypass the preamp circuit and record line-level signals directly, without any coloration.


SEND AND RETURN

Two dedicated analog inserts let you connect external outboard gear directly to the preamp signal path without occupying the interface’s standard inputs or outputs. This preserves your available I/O while allowing you to seamlessly integrate analog hardware into your recording workflow.

HEAR IT IN ACTION

Atmos-Ready

EMBRACE THE FUTURE OF AUDIO PRODUCTION

A complete Atmos-ready surround and immersive audio monitoring system is supported by the interface, compatible with over 23 audio formats from stereo to Dolby Atmos 9.1.6. It offers precise speaker and room calibration tools as well as intuitive monitoring controls and fast preset recall functionality, designed to increase productivity.

Atmos image
mrc

MRC

IMMERSIVE MONITORING.
ATMOS READY.

Orion Studio Synergy Core supports immersive monitoring across 23+ formats, from stereo to Dolby Atmos 9.1.6. With precise speaker and room calibration, intuitive controls, and instant preset recall, it keeps your workflow fast and accurate.

The functionality is optionally available through a separate upgrade license for the Orion Studio Synergy Core, or with every MRC purchase including a free add-on license code.

As a physical extension of the system, the MRC brings touch-sensitive control to your monitoring setup, allowing you to navigate complex immersive sessions with ease and precision.

Learn More
src

SRC

STEREO
MONITORING

SRC unlocks 2.1 stereo calibration with 16-band EQ, gain, delay, and flexible Bass Management. Integrate a subwoofer and fine-tune crossover settings for a balanced, controlled low end.

Calibration is activated with the SRC controller.

A dedicated hardware extension for Orion Studio Synergy Core, the SRC provides fast, hands-on control over your monitoring system, making everyday adjustments intuitive and immediate.

Learn More

IMMENSE ANALOG & DIGITAL FLEXIBILITY

Designed to become the centerpiece of pro studios of any size and purpose, there is no task the Orion Studio Synergy Core can’t handle. Record high-impedance instruments and reamp DI tracks through the designated Reamp outputs. Use in specific multichannel setups or connect various outboard gear with the unit’s 16 line outputs. Expand your I/O count through the digital S/PDIF and ADAT ports. Use the intuitive and flexible software Routing Matrix to direct all incoming and outgoing audio. An addition to the already advanced Orion Studio monitoring is the two headphone and monitor outs, which can be used simultaneously.

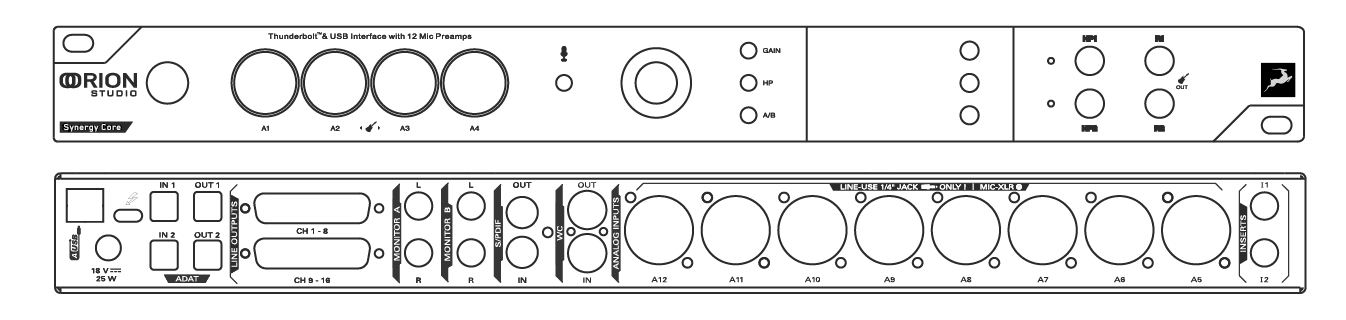

Front Back
1
Power switch
2
Preamps (Mic/Line/Hi-z)
3
Talkback
4
Volume knob
5
Gain, HP, A/B
6
Function buttons
7
Headphone outputs
8
Reamp outputs
9
USB port
10
Thunderbolt port
11
Power supply
12
D-sub Line outs
13
TRS Monitor outs
14
S/PDIF I/O
15
WC I/O
16
Preamps (Mic/Line)
17
Hardware inserts
18
ADAT

Connectivity Examples

Full Band Recording

From the power of the drums to the emotion of the vocals, Orion Studio Synergy Core brings every performance together in a single recording hub.

Give every musician their own personalized monitor mix and inspire performances with Synergy Core real-time effects. Expand your I/O through ADAT or S/PDIF and benefit from Antelope Audio’s precision clocking technology for uncompromising audio quality across your entire setup.

When the moment matters most, simultaneous Thunderbolt™ and USB connectivity lets you record to two computers at once, ensuring every take is captured with confidence.

Mixing

Integrate your favorite analog gear through dedicated hardware inserts, switch instantly between two monitor pairs, and reamp guitars with ease. Dedicated direct inputs bypass the preamp stage entirely, preserving the purest possible signal path.

From precision monitoring to hybrid analog mixing, everything stays connected, streamlined, and ready to support your creative decisions.

Immersive Setup

Bring your mixes to life in three dimensions with an immersive audio setup powered by Orion Studio Synergy Core. From stereo to 9.1.6, it provides the tools needed to create truly immersive experiences. Place every sound with precision and hear your productions exactly as they were intended.

Whether you’re mixing music, film, or gaming content, Orion Studio Synergy Core delivers the control, flexibility, and connectivity required for professional immersive audio workflows.

The Live Act

Two systems, multiple instruments, virtual instruments, and hybrid hardware setups – all connected through a single Orion Studio Synergy Core. With simultaneous USB and Thunderbolt™ connectivity, each performer can work from their own computer while sharing the same professional audio ecosystem.

FEATURES

+

Analog & Digital
Connectivity

  • • 14 x 24 Rackmount audio interface with Thunderbolt & USB connection for Mac/Windows;
  • • 12 Discrete ultra-linear preamps with 75dB of gain on combo XLR jacks for studio-quality recordings. All work as microphone/line/Direct-In inputs, and four of them are Hi-Z compatible. All preamps are fully DC-coupled;
  • • Two analog inserts (applied to preamp 1 and 2) to connect analog gear without the need to do additional routing in the DAW or in the control panel;
  • • 16 DC-coupled analog output channels over a D-Sub 25 connector allowing control of modular synthesizers;
  • • Two reamp outputs on TRS ¼ jacks for further amp processing of guitar signal;
  • • Thunderbolt 3 (up to 32 channels) and USB 2.0 (up to 24 channels) ports for native DAW application with custom macOS & Windows drivers;
  • • Digitally expandable over ADAT (up to 16 channels) and SPDIF (up to 2 channels);
  • • Two stereo headphone outputs;
  • • Two monitor outputs that can work both in parallel or in A/B mode.

Clocking
& Conversion

  • • Proprietary 64-bit Acoustically Focused Clocking technology for increased width, separation, and detail in musical performances;
  • • Proprietary Jitter Management algorithm delivering truthful and expanded soundstage;
  • • High-resolution A/D and D/A conversion ensuring artefact-free recordings and mastering-grade converter with 130dB headroom for critical listening without coloration or signal degradation.

Real-Time Effects
Processing

  • • Collection of 50 analog-modeled effects featuring classic as well as rarely emulated compressors, EQs, mic preamps, and guitar amps and cabs;
  • • 6×DSP, 2×FPGA Synergy Core proprietary onboard real-time platform for effects processing with imperceptible latency;
  • • Up to 144 effects instances per session loaded simultaneously on 32 individual virtual racks.

Workflow-Enhancing
Features

  • • Advanced digital Routing Matrix that allows execution of complicated input/output routing with a simple drag and drop functionality;
  • • 4 mixers with 32 channels each for creating individual cue mixes and sub-mixes, allowing you to distribute headphone mixes for your musicians while applying pan, reverb, other effects and stereo link;
  • • Customizable presets complete with signal routing, level adjustments, mixer settings and sub-mixes;
  • • Direct hardware monitoring with effects, processed in real-time with imperceptible latency;
  • • Direct-In function allowing you to bypass the preamp architecture and record directly through the converter;
  • • Fully DC-coupled I/O to control and receive CV from modular synths;
  • • Easily accessible talkback with built-in microphone;
  • • Front panel with volume knob with selectable sources and functional buttons;
  • • Option to work without being connected to a computer (standalone operation);
  • • Wireless control of software features from a separate computer connected to the same network.

In-the-Box Content

  • Orion Studio Synergy Core Interface
  • Quick Start Guide
  • Inline External Power Supply Unit
  • USB Cable

FAQ

Orion Studio Synergy Core is a complete professional studio solution, combining extensive I/O, authentic emulations of classic vintage effects processors, and advanced tools such as room measurement and room correction in a single device. With the introduction of Dual-Host streaming and built-in redundancy, it also provides the reliability needed to ensure your valuable audio is never lost.

By bringing together industry-leading connectivity, real-time hardware-accelerated processing, and powerful monitoring capabilities, Orion Studio Synergy Core delivers a level of performance and versatility that is unmatched in its class.

Synergy Core Real-Time Effects are software emulations of classic audio processors that can be loaded directly into the Orion Studio Synergy Core Control Panel. Unlike native effects, which are inserted into your DAW and processed by your computer's CPU, Real-Time Effects are processed directly by the interface's built-in Synergy Core FPGA and DSP processors. This significantly reduces CPU load and delivers ultra-low-latency performance, making them ideal for recording, monitoring, and live applications.

Synergy Core is our hardware-accelerated effects platform that combines the strengths of FPGA and DSP processing. This unique architecture enables Synergy Core Effects to deliver exceptional depth, detail, and sonic realism that sets them apart from other platforms.

Inside a Synergy Core interface, FPGA and DSP processors work together to handle audio processing with ultra-low latency—so low that it is imperceptible. This allows you to monitor and record through high-quality effects in real time, without placing additional load on your computer's CPU.

To learn more about Synergy Core Technology, click here.

Acoustically Focused Clocking (AFC) is our proprietary jitter management technology, designed to minimize timing errors in digital audio. By reducing jitter, AFC preserves greater detail, clarity, and sonic authenticity, resulting in a more accurate and natural sound.

Yes. Orion Studio is fully compatible with both Intel and Apple Silicon-based Macs, as well as Windows 10 and Windows 11 systems.

Orion Studio Synergy Core is compatible with any DAW that supports Core Audio (macOS) or ASIO (Windows). While you should not encounter any compatibility issues with most DAWs, the following applications have been officially tested:

  • Pro Tools
  • Logic Pro
  • Cubase
  • FL Studio
  • REAPER
  • Studio One
  • Ableton Live
  • Bitwig Studio

Yes. Orion Studio Synergy Core features four ultra-low-latency mixers that allow you to monitor up to 32 channels simultaneously with near-zero latency. Each mixer includes independent volume faders, enabling every performer to create a personalized monitor mix tailored to their preferences.

Yes. If your external devices do not have a dedicated Word Clock input, you can still synchronize them by using the S/PDIF or ADAT output from Orion Studio Synergy Core. Both digital audio connections carry embedded clock information, allowing compatible devices to lock to Orion Studio Synergy Core as the master clock.

You can load up to 144 mono FX instances in the Orion Studio Synergy Core Control Panel. The exact number of available instances depends on the type of effects being used, as different effects require different amounts of Synergy Core processing resources.

For a detailed breakdown of the processing requirements for each effect, click here.

Yes, it is designed for multi-channel recording and can handle full-band sessions when connected with the proper microphones, instruments, and expansion gear.

At 44.1 kHz and 48 kHz sample rates, Orion Studio Synergy Core can record up to 30 input channels simultaneously.

Yes. In addition to Hi-Z, Line, and Mic modes, the front-panel preamps of Orion Studio Synergy Core feature a Direct mode. This mode routes the input signal directly to the A/D converter (ADC), completely bypassing the preamp circuit for the cleanest possible signal path.

Yes. Thanks to the flexibility of the Routing Matrix, Orion Studio Synergy Core allows you to record both the dry (unprocessed) and wet (processed) versions of a signal simultaneously. This gives you the freedom to monitor and capture the sound of Synergy Core Real-Time Effects while retaining a clean recording for reprocessing or mixing later.
