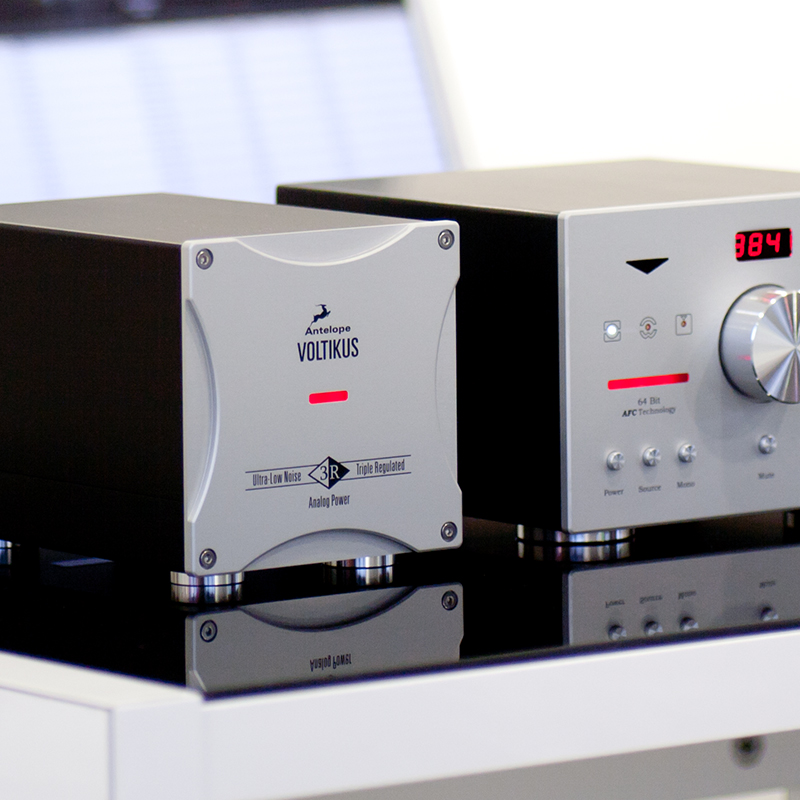

A PSU especially designed to fit your Zodiac DAC
Voltikus is a sleek heavy-duty Power Supply Unit (PSU)
The Voltikus was designed to perfectly match your Zodiac DAC. Carefully tailored to deliver uncompromising power, Voltikus helps Zodiac achieve the punch and sonic richness of deep lows, a full range of mids, and tightly defined highs. This degree of performance is accomplished by incorporating a hefty, custom-wound, electrostatic-shielded toroidal transformer followed by a unique concept of three cascaded power regulators.
Features
Audiophile grade PSU
perfectly matching Zodiac DACs in aesthetics and performance
Wide input voltage range
Input voltage range between 90-250V ensures dependable operation under varying line conditions
superior stability
Unique multi-stage linear regulator topology achieves vastly superior stability
built to last

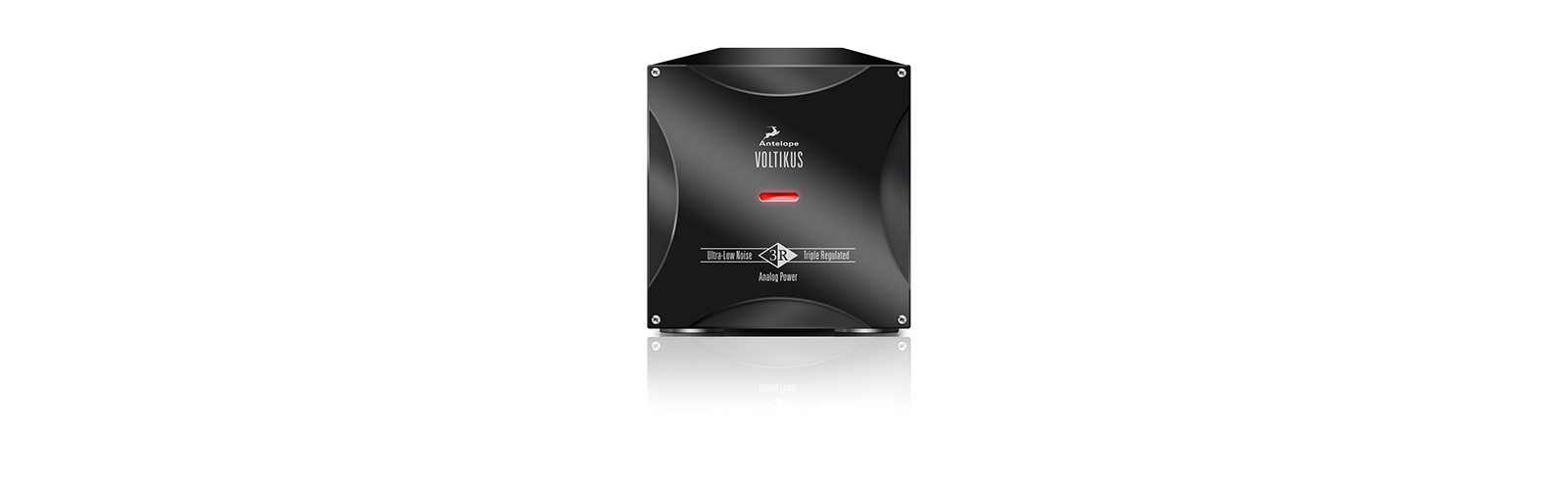

Sturdy construction with custom machined aluminum front panel
NO EXTRA NOISE
Ground/Lift switch helps eliminate hum and buzz caused by ground loops
NO disturbance
Toroidal transformer with custom electrostatic shield suppresses power line disturbances
DESCRIPTION
Unprecedented stability
Precision laser-trimmed voltage reference (LT1021)
This serves as the backbone of this discrete design, achieving the stability impossible with off-the-shelf voltage regulators. Voltikus is a true engineering breakthrough from Antelope’s respected team of high-end audio experts.
Specifications
-
-
Input power
-
Nominal ~100-120 / ~220-240 V, 50 or 60 HZ
Actual ~90-264 V, 50 or 60 HZ
2x Fuses 0.5A, ~250 V, 5mm x 20mm, Type T

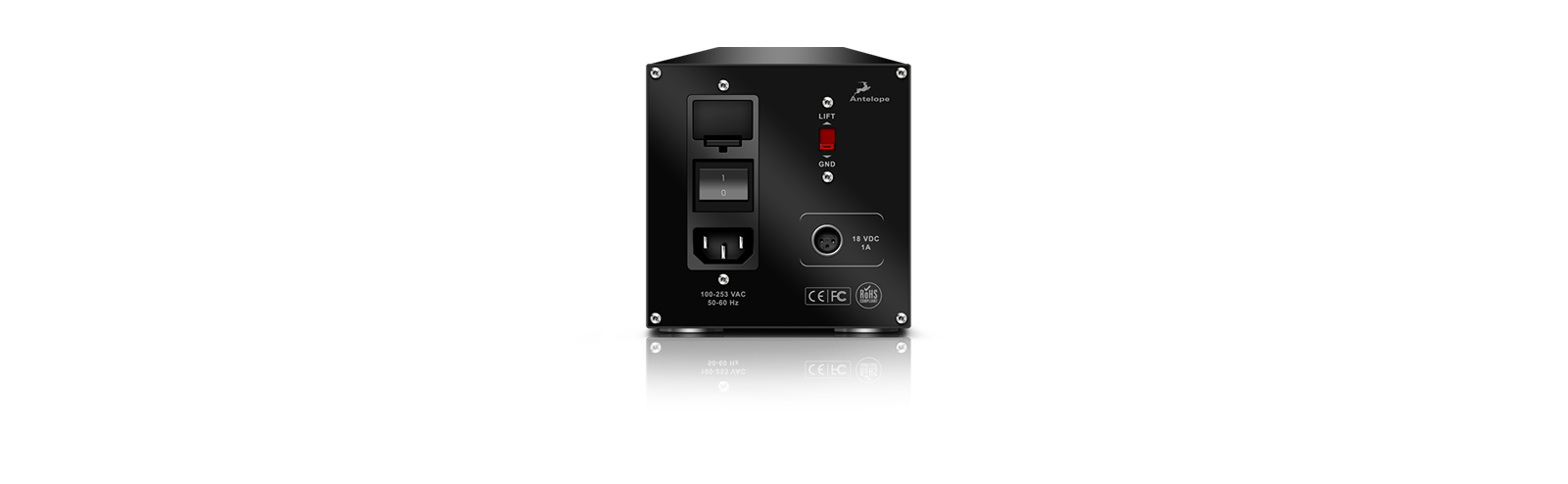

Input Power Cord 3-Wire grounded / Lifted option
Terminals C14 panel mounted male connector (inlet)
-
-
Output
-
Voltage 18V
Power (maximum) 18W
Terminals Mini XLR
Safety Features
Overlod/short circuit protection Automatic power limit / short circuit protection
Input line Protection Fuse on both hot and neutral
-
-
Environmental
-
Operating Temperature 0-50ºC/32-122ºF
-
-
In The Box
-
Audiophile grade ultra low noise power supply
Printed Documentation
DC Power cable
-
-
Dimensions
-
Width: 107 mm/4.2”
Height: 112 mm/4.4”
Depth: 168 mm/6.6”
-
-
Weight
-
2.5 kg/5.6 lb
